Features:

✅ Ready-to-run, fully tested cabinets
✅ Customizable for performance and environment
✅ Complete with breakers, reactors, control modules
✅ Graphical AOP30 panel for easy setup & diagnostics
✅ Integrated communications (PROFINET, Profibus, etc.)
✅ Multiple enclosure/ventilation options

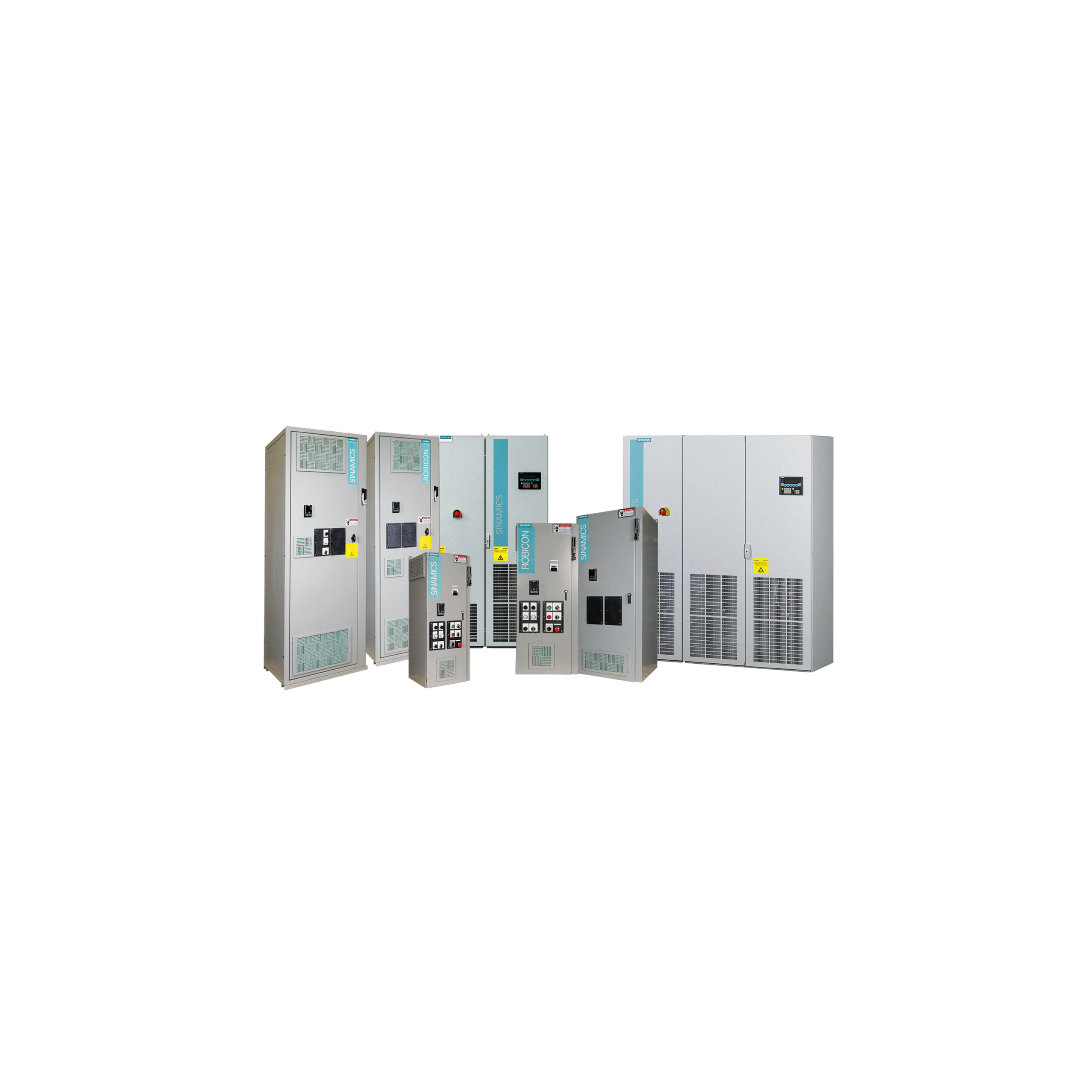

Siemens’ enclosed drive solution offers the simplicity and convenience of pre-engineered, fully tested systems that are ready to use and deliver exceptional performance. The drives can be set up to meet particular performance, application, and environmental requirements thanks to a wide range of choices.

Brand	Siemens

Description
Technical Data
Application
Downloads
Supply & Shipping Details

Description

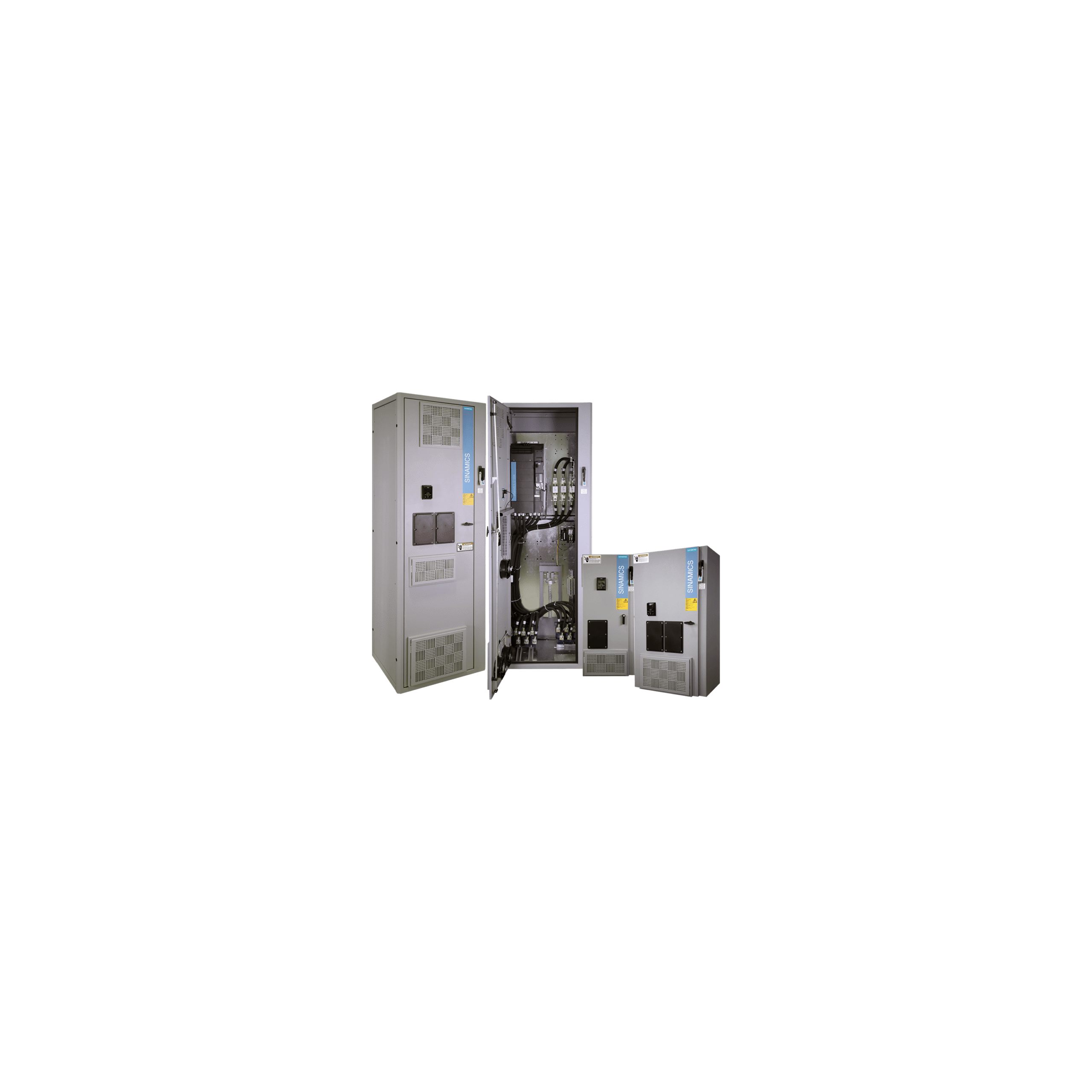

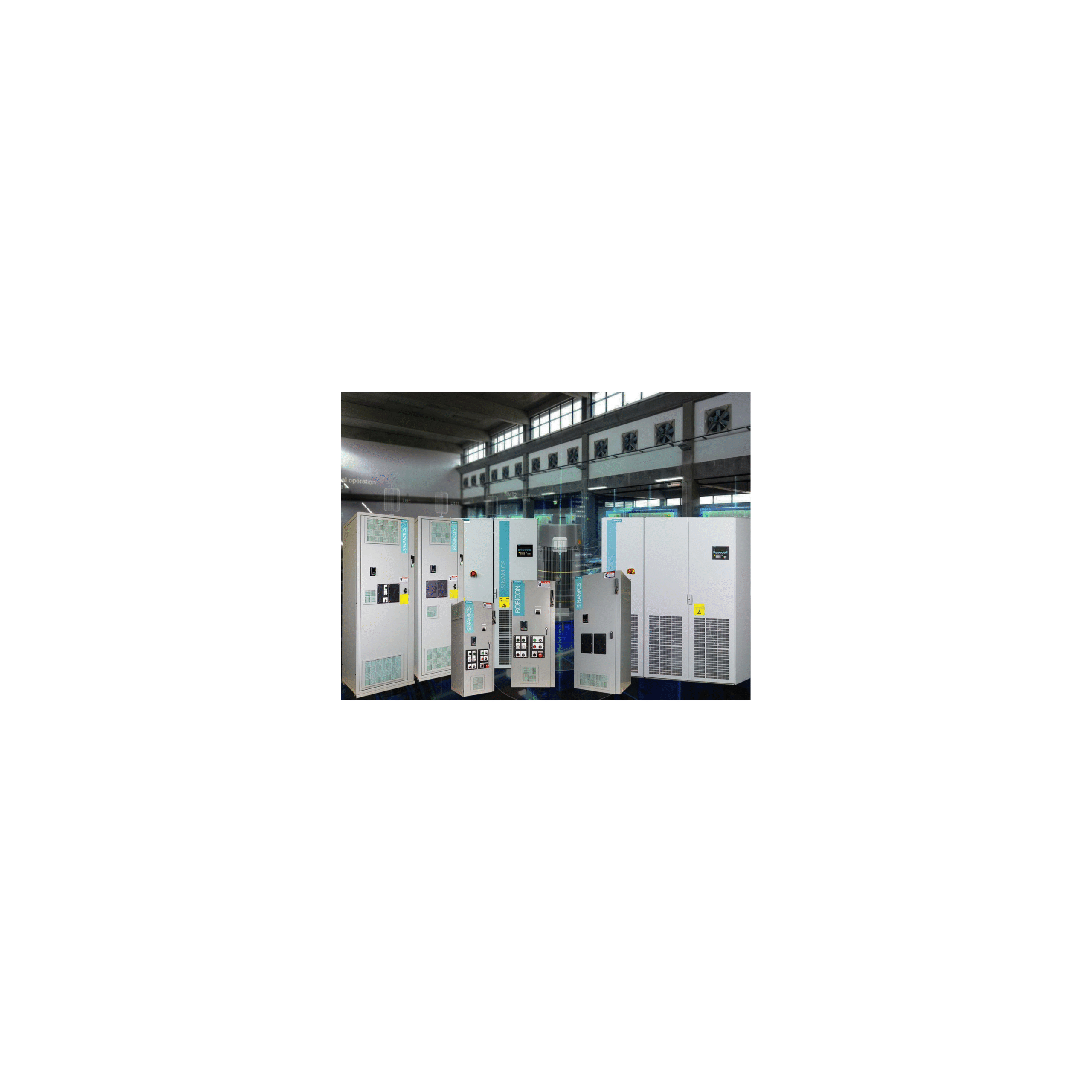

Siemens SIMOTICS Panel Enclosures are engineered to provide robust protection for sensitive electrical and automation components across a range of industrial environments. Built with high-quality materials, these enclosures offer reliability, safety, and ease of integration into SIMOTICS motor control systems and other Siemens industrial automation products.

These enclosures are available in multiple sizes and configurations to suit wall-mounted, floor-standing, or modular panel systems—ensuring compatibility with both standard and custom electrical installations.

Technical Data

Siemens – SIMOTICS Panel Enclosure

🔹 SIMOTICS Enclosure ▾

Protection Class IP54 / IP65 / IP66 (EN 60529)

Material Galvanized Steel / Stainless Steel 304/316 / Aluminum

Surface Finish Powder-coated (RAL 7035), Brushed SS

Operating Temperature -25°C to +55°C

Mounting Floor-standing / Wall-mounted / Modular Racks

Door Options Solid, Vented, or Transparent Polycarbonate

Locking Mechanism 3-point latch, key-operated handle or optional electronic lock

Cable Entry Top/Bottom gland plates or custom punched panels

Compliance Standards IEC 61439, EN 62208, CE, UL 508A, RoHS

Ventilation Fan trays, louvers, heat exchangers available as options

Dimensions Custom sizes available (H x W x D), standard range from 400x300x200 mm onwards
