Phoenix Contact

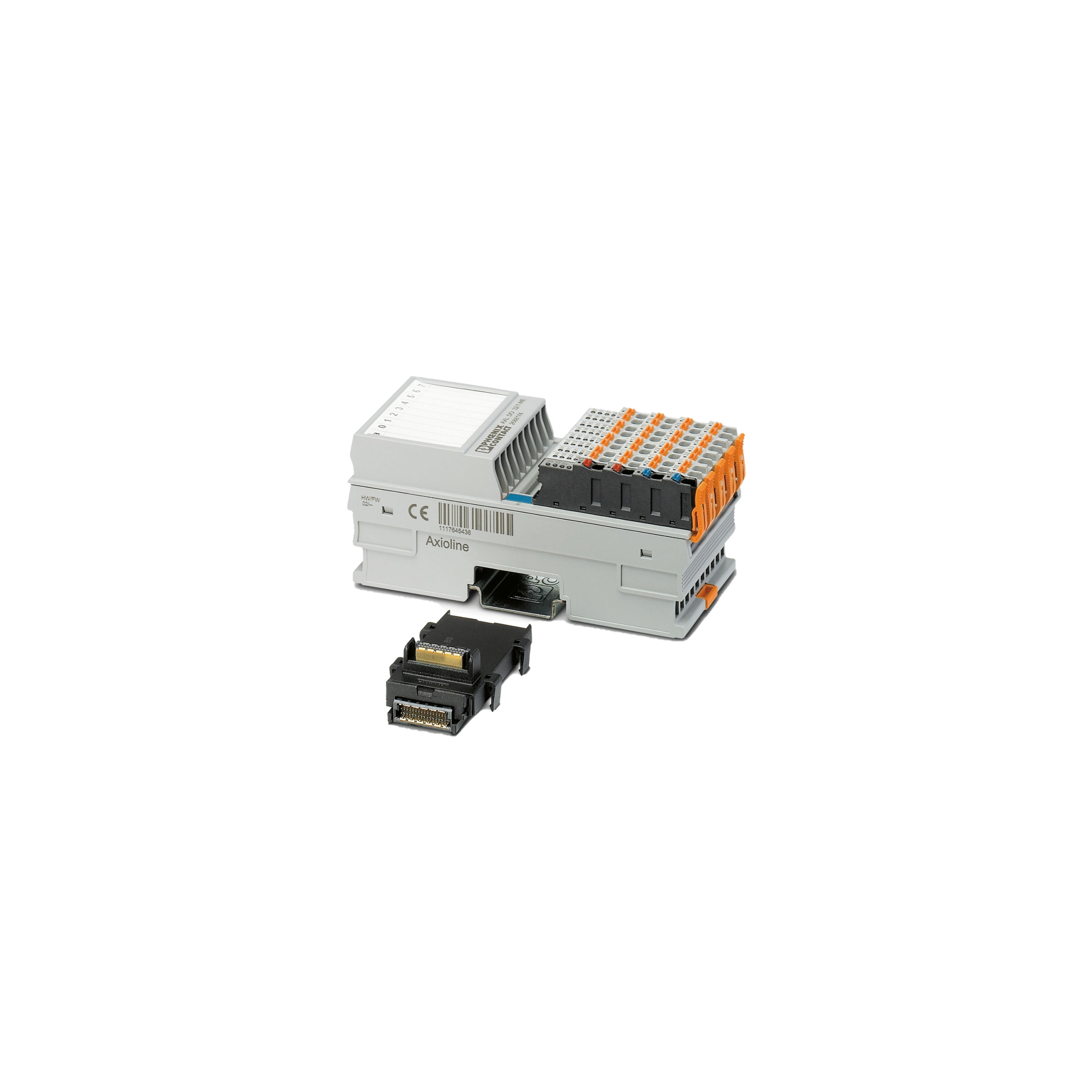

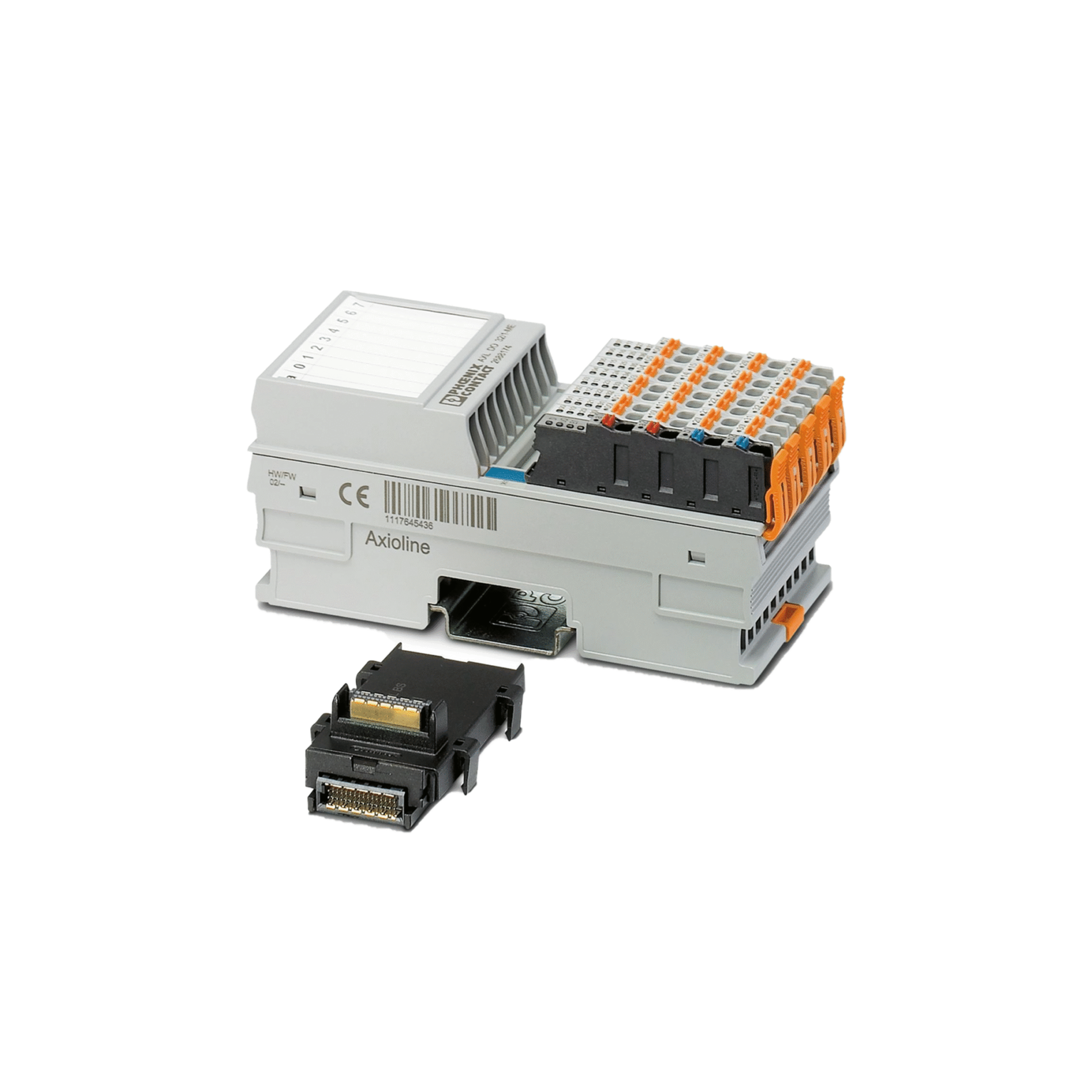

Phoenix Contact – Axioline, Inline Series

Features:

✅ Wide range of remote I/O systems for control cabinet and field installation
✅ Easy integration into control systems with description files
✅ Wide range of functions and various designs enable flexible use
✅ Reliability even under the most adverse conditions ensures increased system availability
✅ Greater flexibility and wider range of functions with IO-Link communication

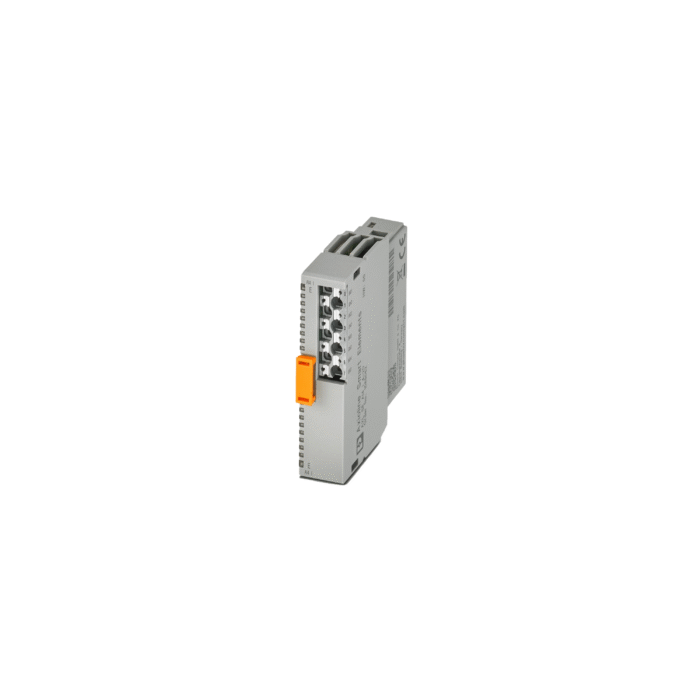

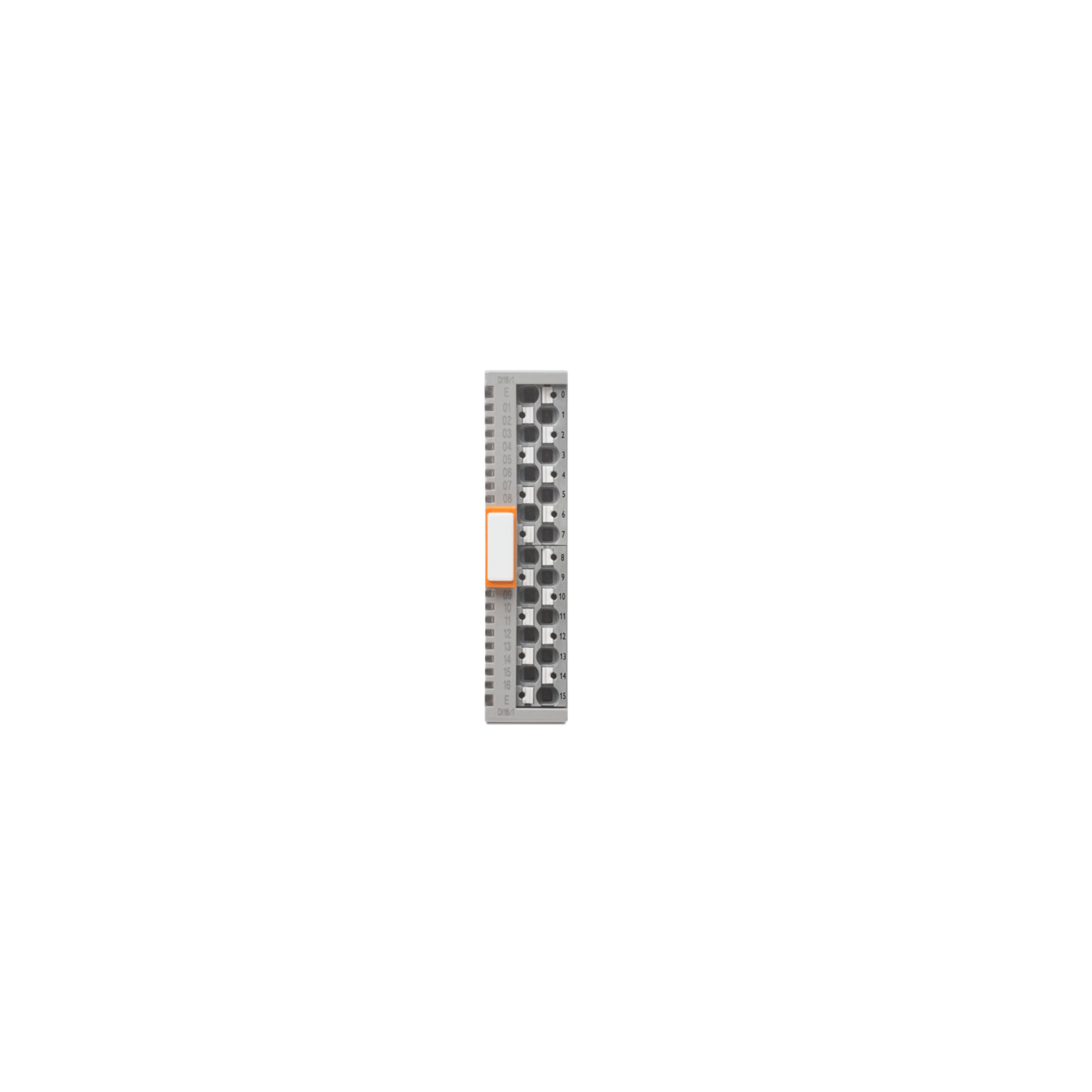

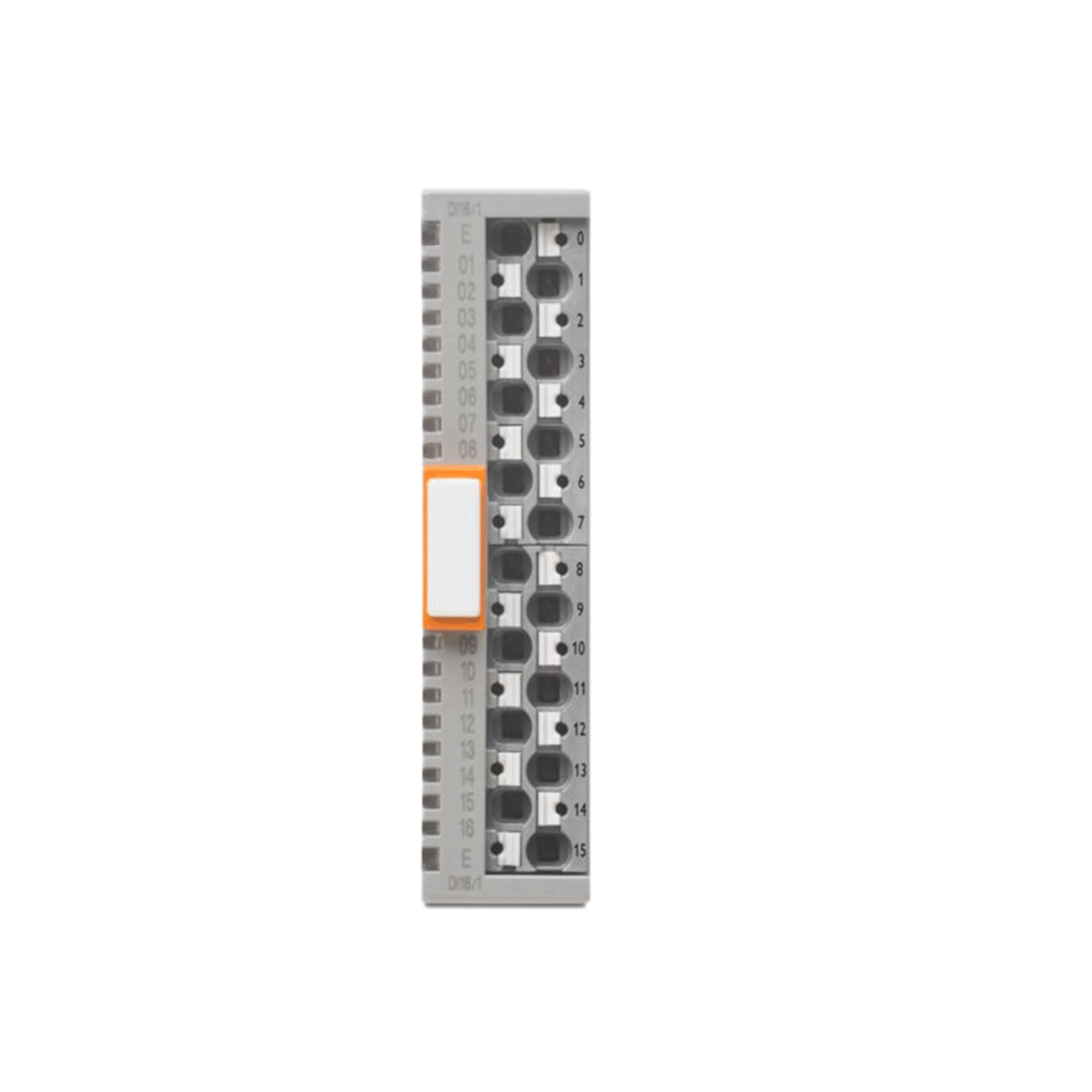

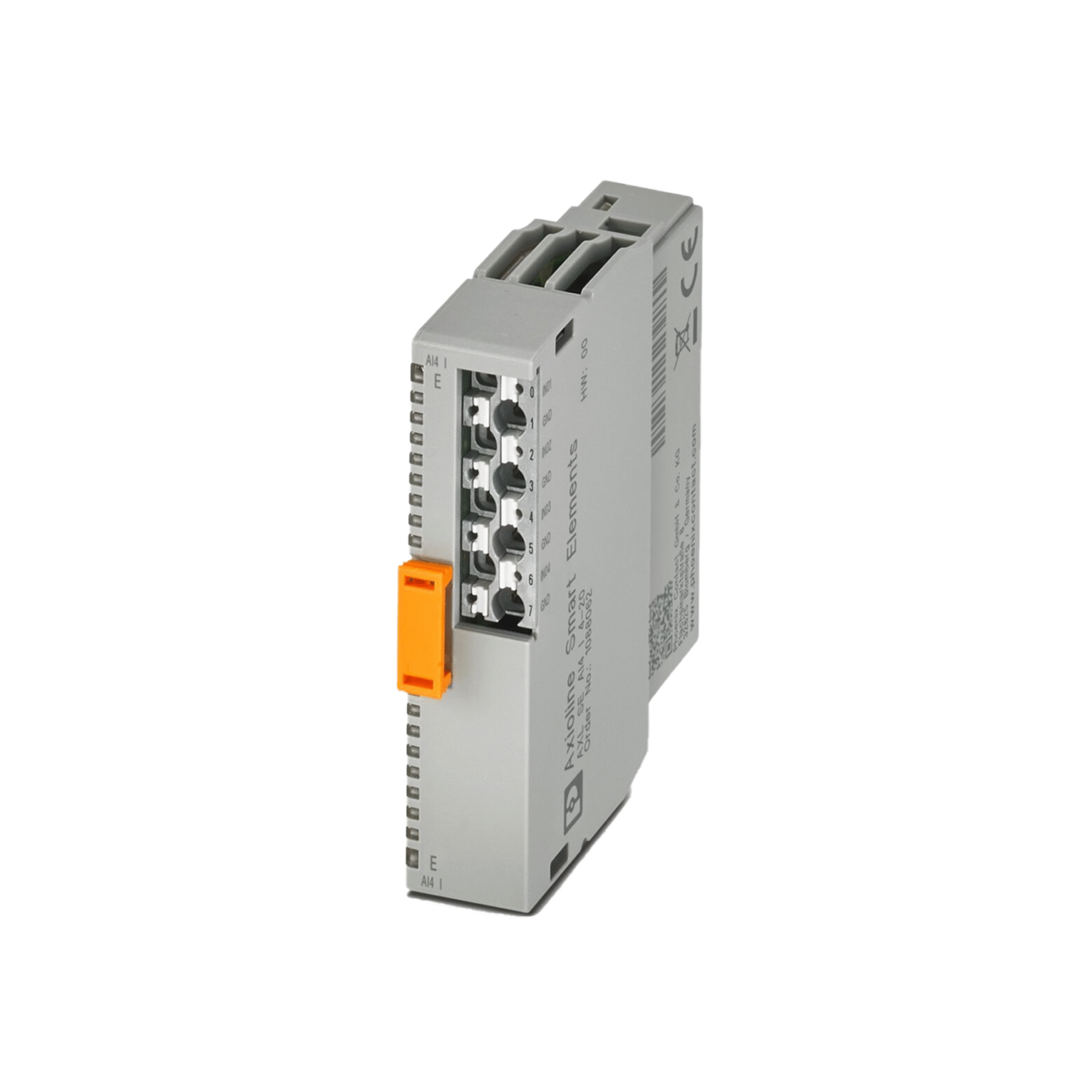

The Axioline Smart Elements are plug-in I/O modules that don’t require a system and don’t communicate over a bus. Only the I/O function is supported by the individual element. Only in conjunction with a backplane, which works similarly to an adaptor, is bus communication for the pertinent I/O system made possible. As a result, the Axioline Smart Elements are versatile and ubiquitous.



Compare
Add to wishlist
SKU: N/A Categories: , Brand:
Description

The Axioline F and Axioline E (Smart Elements) I/O systems by Phoenix Contact offer modular and compact digital, analog, and special-function I/O modules ideal for both control-cabinet (IP20) and field (IP65/IP67/IP69K) installations. These systems streamline signal acquisition and control, delivering high reliability and flexibility in harsh industrial environments.
All common bus systems and networks can use Phoenix Contact’s remote I/O systems, which include IP20 and IP65/IP67 protection levels. Get input and output signals straight from your machines and systems or from the control cabinet. Reliable transmission of your data and signal traffic is guaranteed, with optimization for specific application regions. For this, use products with a variety of mechanical characteristics and uses.

Fast, Flexible, and Reliable I/O Systems for Industrial Automation

Phoenix Contact’s Axioline and Inline Series I/O systems are engineered for high-performance signal acquisition, fast data transmission, and robust operation in demanding industrial environments. Designed for use in both centralized and decentralized automation architectures, these modular systems support a wide range of protocols and deliver unparalleled flexibility for modern control solutions.

Key Features:

Axioline Series (Axioline F & Axioline Smart Elements)

  • Ultra-Fast I/O Response
    Designed for high-speed applications with short cycle times and minimal jitter — ideal for time-critical control loops.

  • Robust Mechanical Design
    Vibration-resistant housing with push-in connection technology ensures secure wiring and reduced installation time.

  • Real-Time Communication
    Supports PROFINET, EtherCAT, Modbus TCP, and EtherNet/IP for seamless integration into any automation environment.

  • Pluggable Smart Elements
    Scalable and compact I/O expansion with plug-in modules for space-saving control cabinets.

  • Extended Temperature Range
    Operates reliably in harsh conditions from -25°C to +60°C.

Technical Data

Technical Data

Phoenix Contact – Axioline, Inline Series

🔹 Axioline, Inline Series ▾

CategoryAxioline F (Cabinet) & E (Field) Series
Module Width15 mm per Smart Element; ~35 mm full module
I/O ConfigurationsUp to 16 digital, or mixed analog/function
Connection TechPush-in & M12 push-pull (field)
Serial Module RateUp to 230 400 bps, Modbus/RTU support
Operating Range–40 °C to +70 °C, IP20 (F), IP65-69K (E)
Vibration/Shock5 g / 30 g per IEC 60068
EMC ComplianceConducted by IEC 61000 series
Hot-Swap SupportYes, in multi-module configurations
Safety ModulesSafetyBridge, PROFIsafe enabled
Specialized I/ORTD, HART, counter, IO-Link options
Bus Coupler CompatibilityProfinet, EtherNet/IP, Modbus TCP, PROFIBUS
Controller IntegrationAxiocontrol, PLCnext, PLCs via bus coupler

Application

Application

  • Factory automation (machine control, sensors, actuators)
  • Process automation (valves, pumps, hazardous area I/O)
  • Energy & utilities (substations, SCADA, renewables)
  • Building automation (HVAC, lighting, fire systems)
  • Transportation (railway control, tunnel monitoring)
  • Food & beverage (IP69K I/O for hygienic zones)
  • OEM & machine builders (compact, scalable I/O systems)
Downloads
Supply & Shipping Details

Supply & Shipping Details

Related products

Compare
Close

Schneider Electric SCADAPack RTUs

,

Features:

✅ Built-in field bus and/or Ethernet communication design ✅ Programmable Logic & Telemetry in one compact device ✅ Integrated IEC 61131-3 programming (LD, FBD, ST, SFC) ✅ Hybrid RTU/PLC Functionality: Combines deterministic control with SCADA readiness ✅ Wide Communication Support: DNP3, Modbus (RTU & TCP), IEC 60870-5-101/104, MQTT, SNMP ✅ Low Power Consumption: Solar- and battery-friendly designs ✅ Scalable I/O Expansion: Supports Schneider’s 5000 series I/O modules SCADAPackTM Smart RTUs integrate the processing and data-logging capabilities of a programmable logic controller (PLC) with the monitoring and communication capabilities of a remote terminal unit (RTU). Wherever distant processes need autonomous control and automatic supervision, SCADAPack Smart RTUs are ideal. Low-cost, low-maintenance monitoring of widely distributed assets is made possible by the SCADAPack data logger, which combines GSM networking with battery-powered, autonomous monitoring.
Add to wishlist
Quick view
Compare
Close

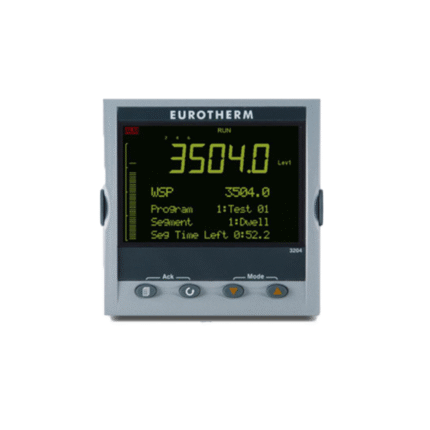

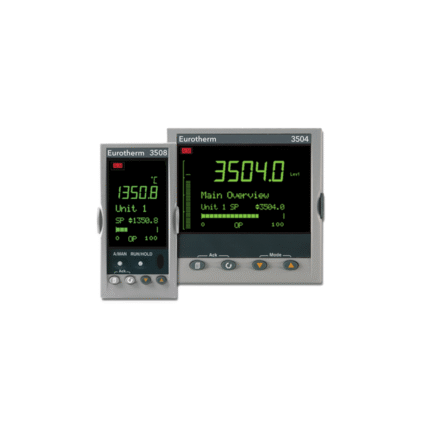

Eurotherm – 3200/3500 Series I/O Modules

,
