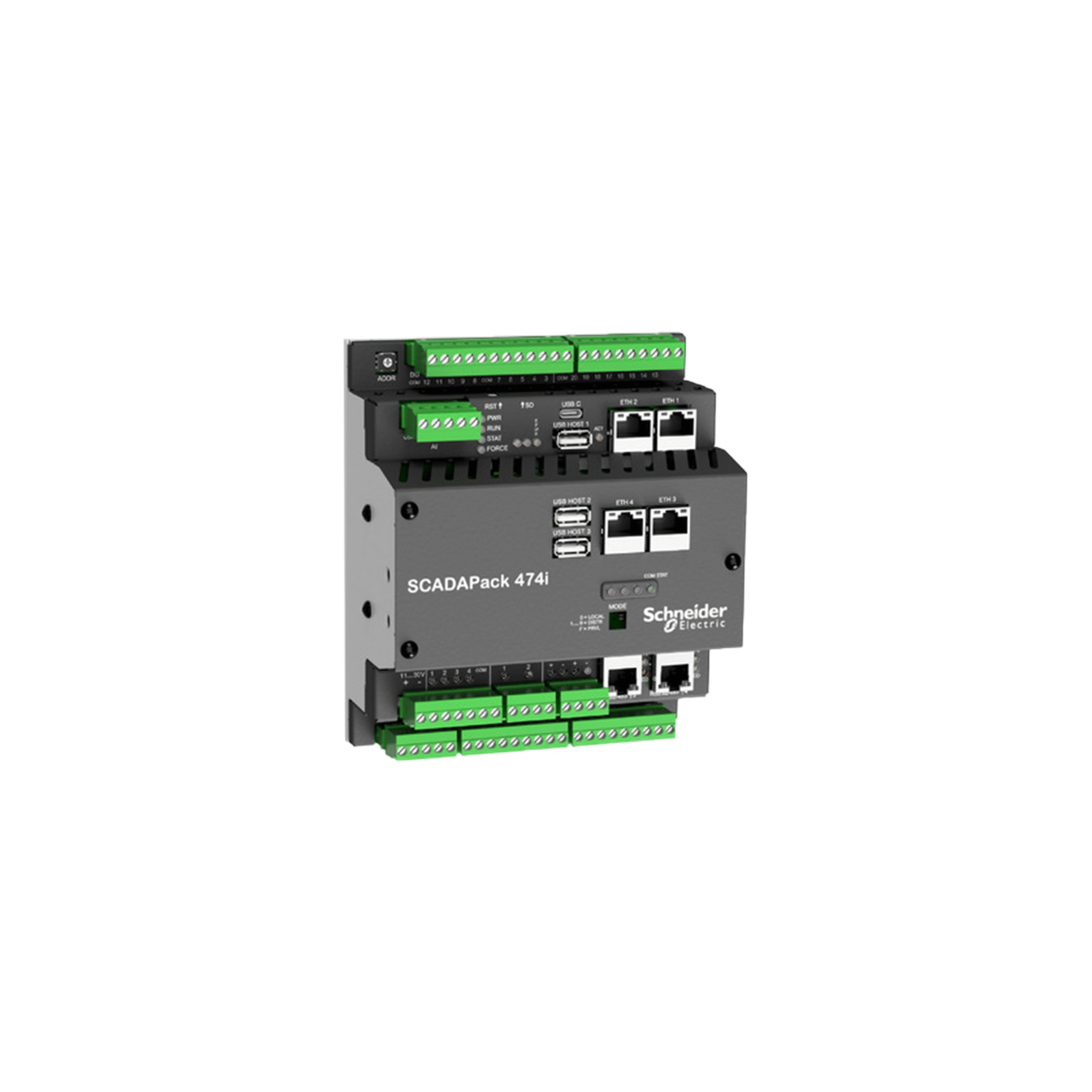

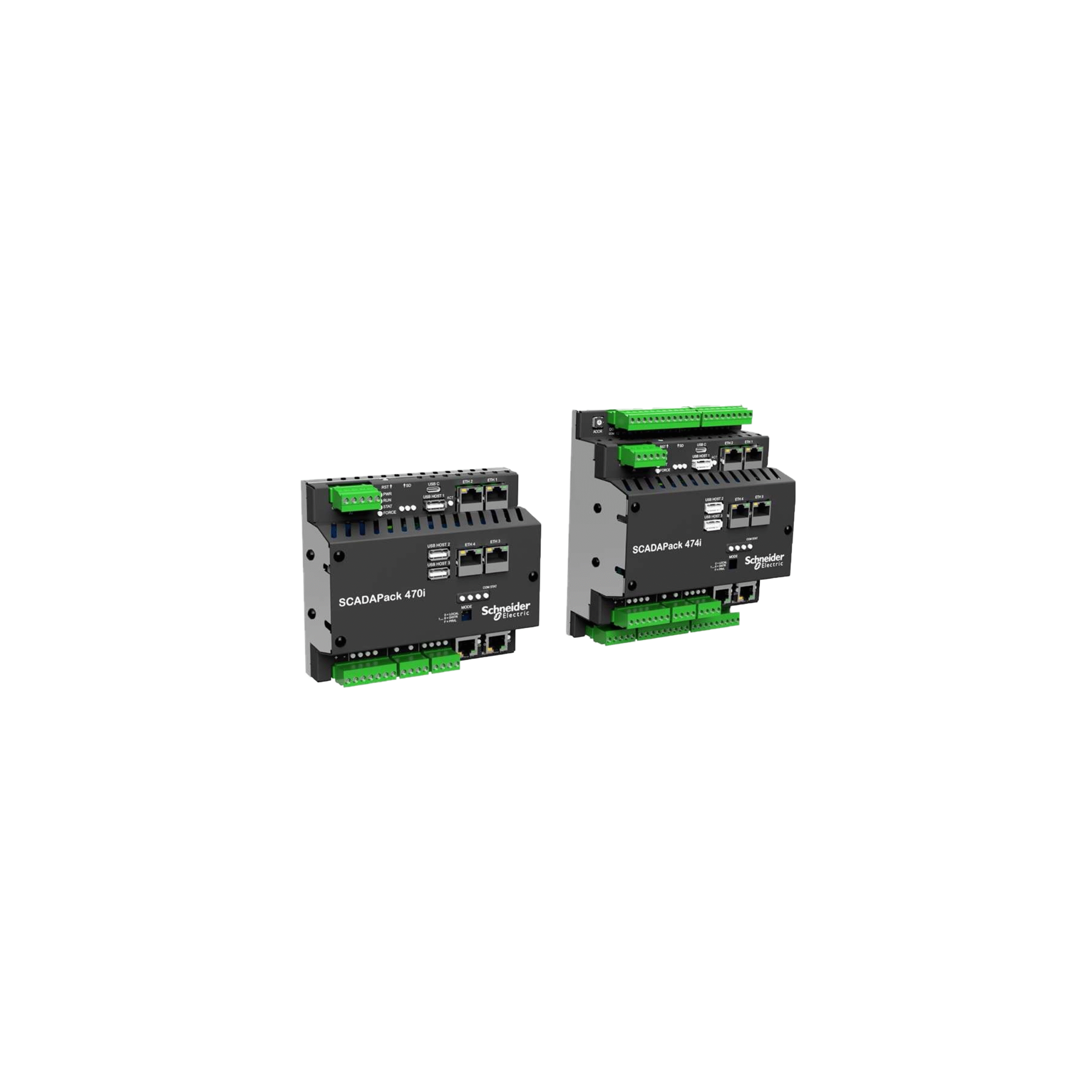

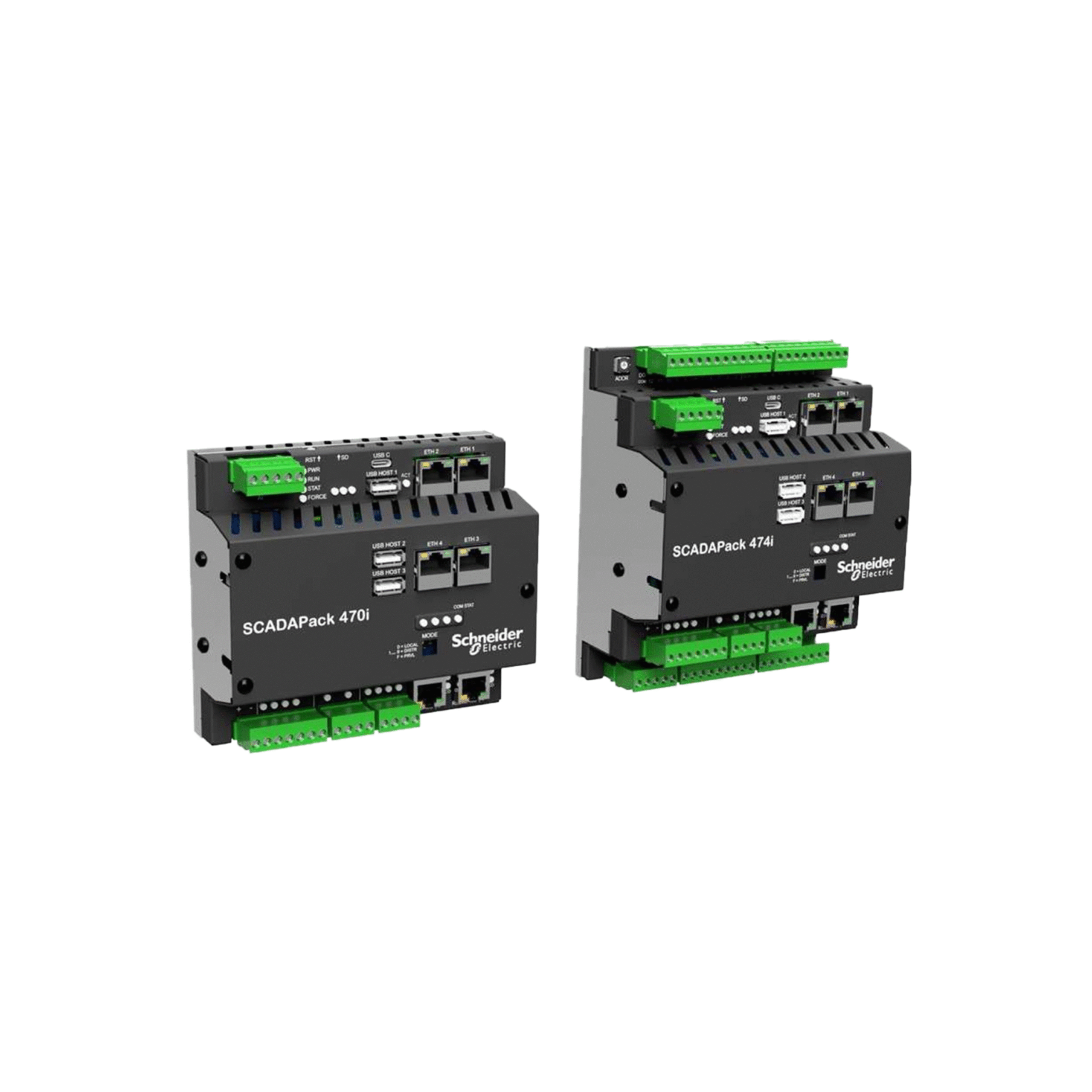

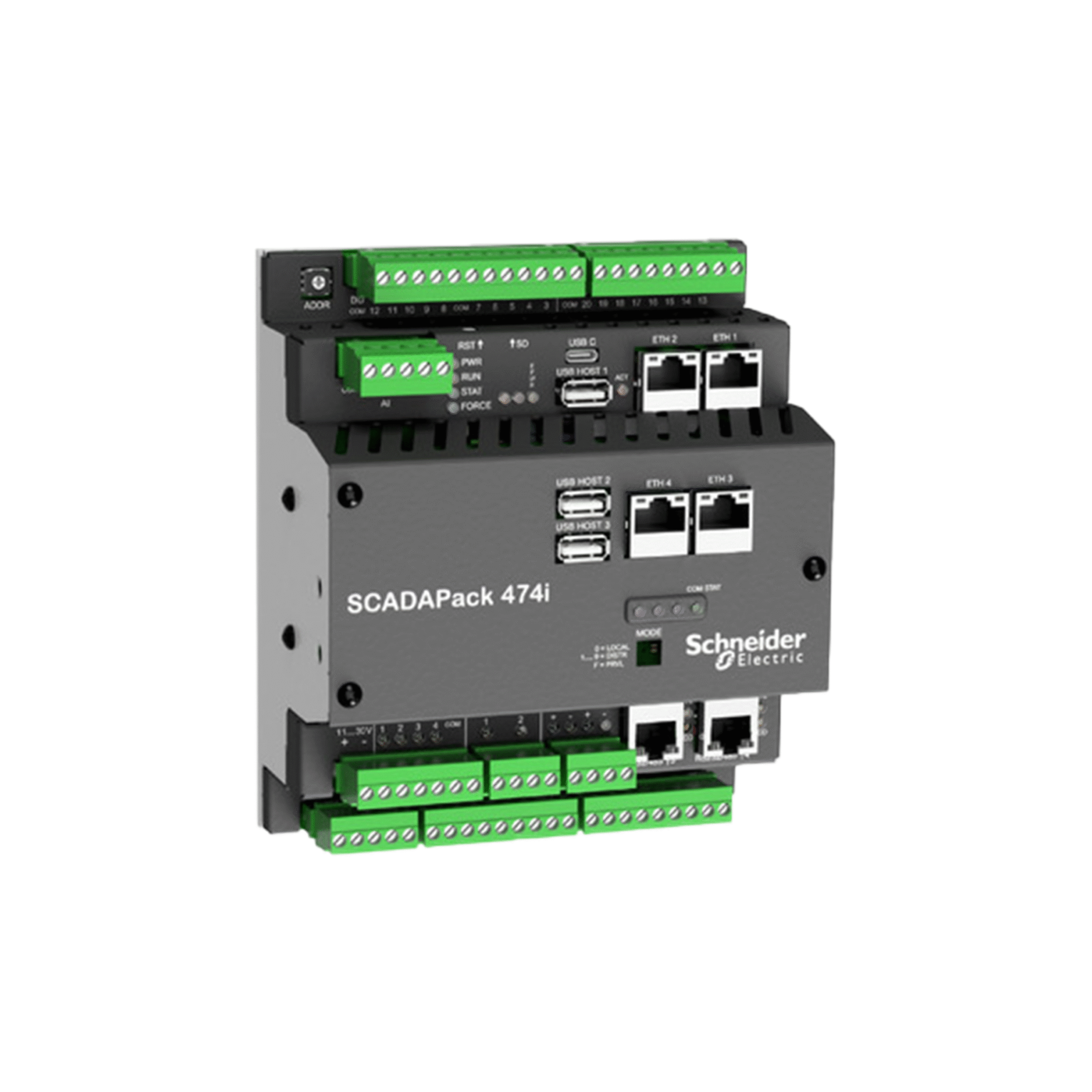

Schneider Electric SCADAPack RTUs
Features:
✅ Built-in field bus and/or Ethernet communication design
✅ Programmable Logic & Telemetry in one compact device
✅ Integrated IEC 61131-3 programming (LD, FBD, ST, SFC)
✅ Hybrid RTU/PLC Functionality: Combines deterministic control with SCADA readiness
✅ Wide Communication Support: DNP3, Modbus (RTU & TCP), IEC 60870-5-101/104, MQTT, SNMP
✅ Low Power Consumption: Solar- and battery-friendly designs
✅ Scalable I/O Expansion: Supports Schneider’s 5000 series I/O modules
SCADAPackTM Smart RTUs integrate the processing and data-logging capabilities of a programmable logic controller (PLC) with the monitoring and communication capabilities of a remote terminal unit (RTU). Wherever distant processes need autonomous control and automatic supervision, SCADAPack Smart RTUs are ideal. Low-cost, low-maintenance monitoring of widely distributed assets is made possible by the SCADAPack data logger, which combines GSM networking with battery-powered, autonomous monitoring.
The SCADAPack RTU series by Schneider Electric offers rugged, flexible, and efficient remote terminal units designed for telemetry and SCADA applications in harsh environments. With integrated control logic, communication protocols, and low power operation, SCADAPack RTUs are ideal for water, oil & gas, renewable energy, and remote industrial automation.
Available in multiple models (SCADAPack 32, 350, 357, 535E, 575), the platform supports a mix of discrete, analog, and serial I/O with optional cellular and Ethernet connectivity.
Reliable Remote Monitoring and Control for Critical Infrastructure
SCADAPack RTUs from Schneider Electric are intelligent, rugged remote terminal units designed for real-time data acquisition, control, and communication in distributed SCADA and telemetry applications. Combining the power of programmable logic control (PLC) with the flexibility of remote communication protocols, SCADAPack RTUs are optimized for harsh environments and mission-critical operations in utilities, energy, and industrial sectors.
Technical Data
SCADAPack RTU Series
🔹 SCADAPack RTU
â–¾
Processor 32-bit ARM Cortex / Motorola ColdFire Control Programming IEC 61131-3: LD, ST, FBD, SFC Memory Up to 8 MB Flash, 4 MB RAM (varies by model) I/O Support Up to 80 digital, 30 analog (expandable) Protocols Modbus, DNP3, MQTT, IEC 60870-5-101/104, SNMP Communication Ports Serial RS-232/485, Ethernet, USB, Cellular (optional) Operating Voltage 12–30 VDC Power Consumption <1.5 W typical (model dependent) Operating Temperature –40°C to +70°C Enclosure Type Metal, DIN-rail or panel mount Certifications CE, UL, CSA, RoHS, ATEX (select models) Software Tools SCADAPack E Configurator, TelePACE Studio, Geo SCADA
Application
- Oil & Gas wellhead automation
- Remote water and wastewater pump stations
- Renewable energy site monitoring
- Pipeline and tank farm SCADA
- Power transmission substations
- Environmental data acquisition
