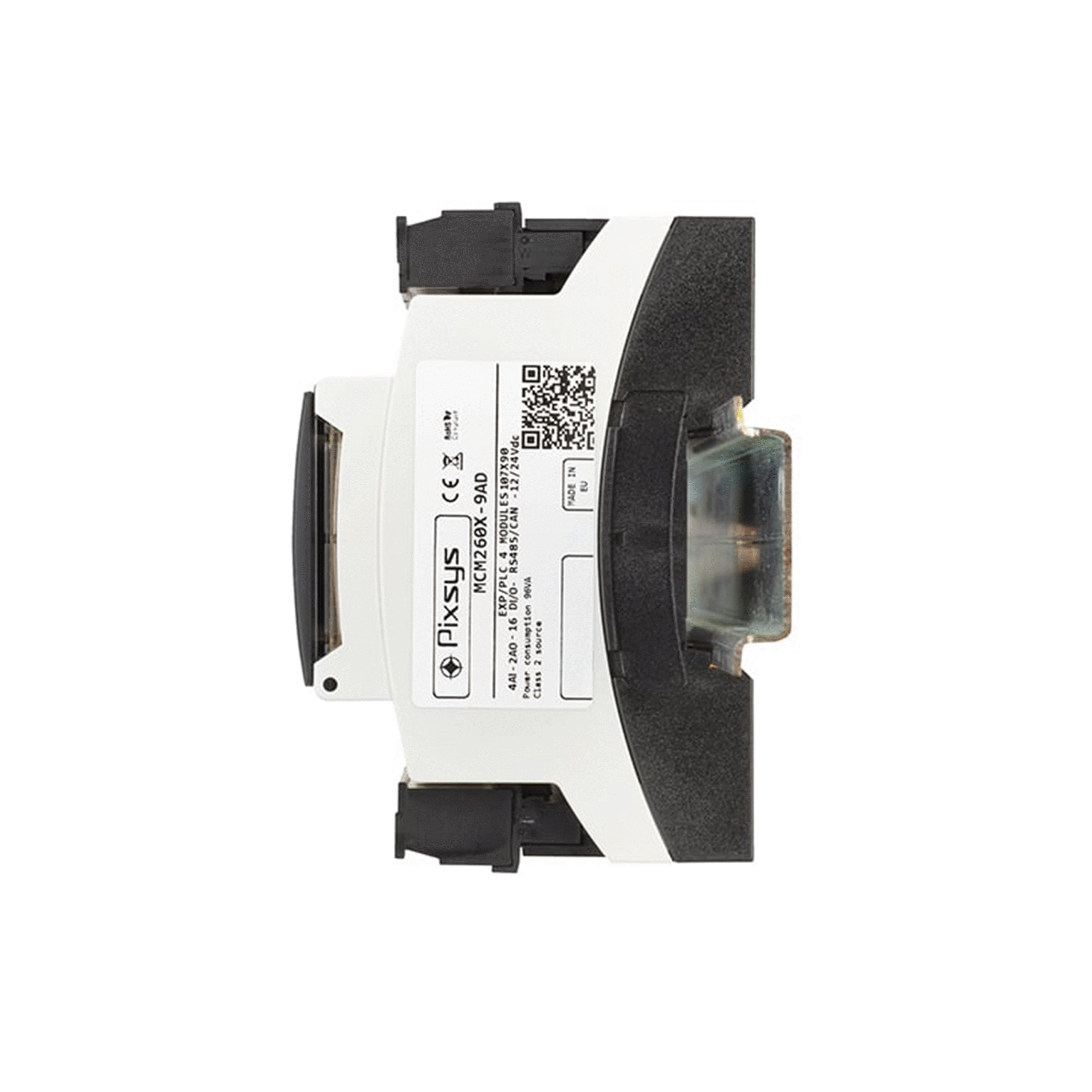

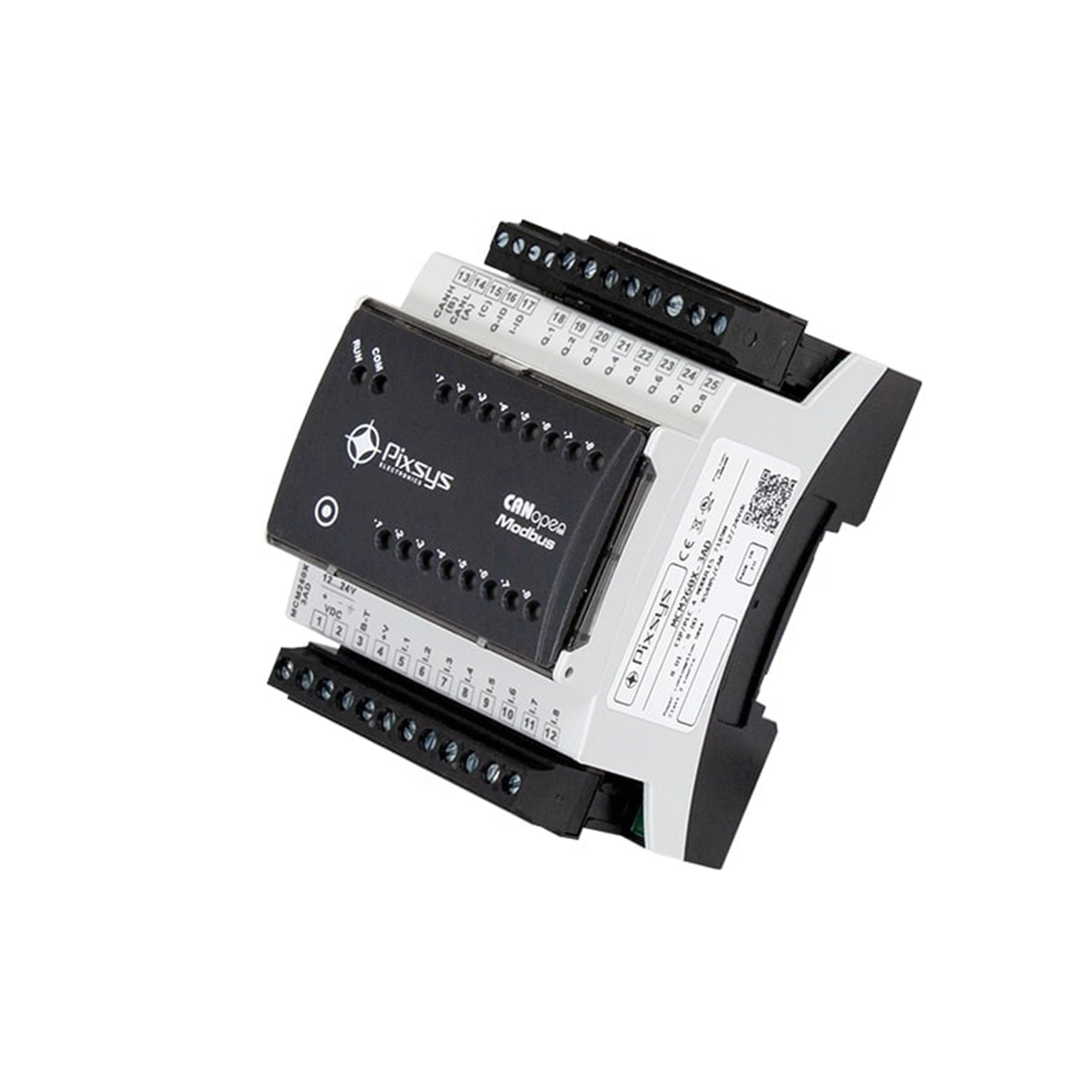

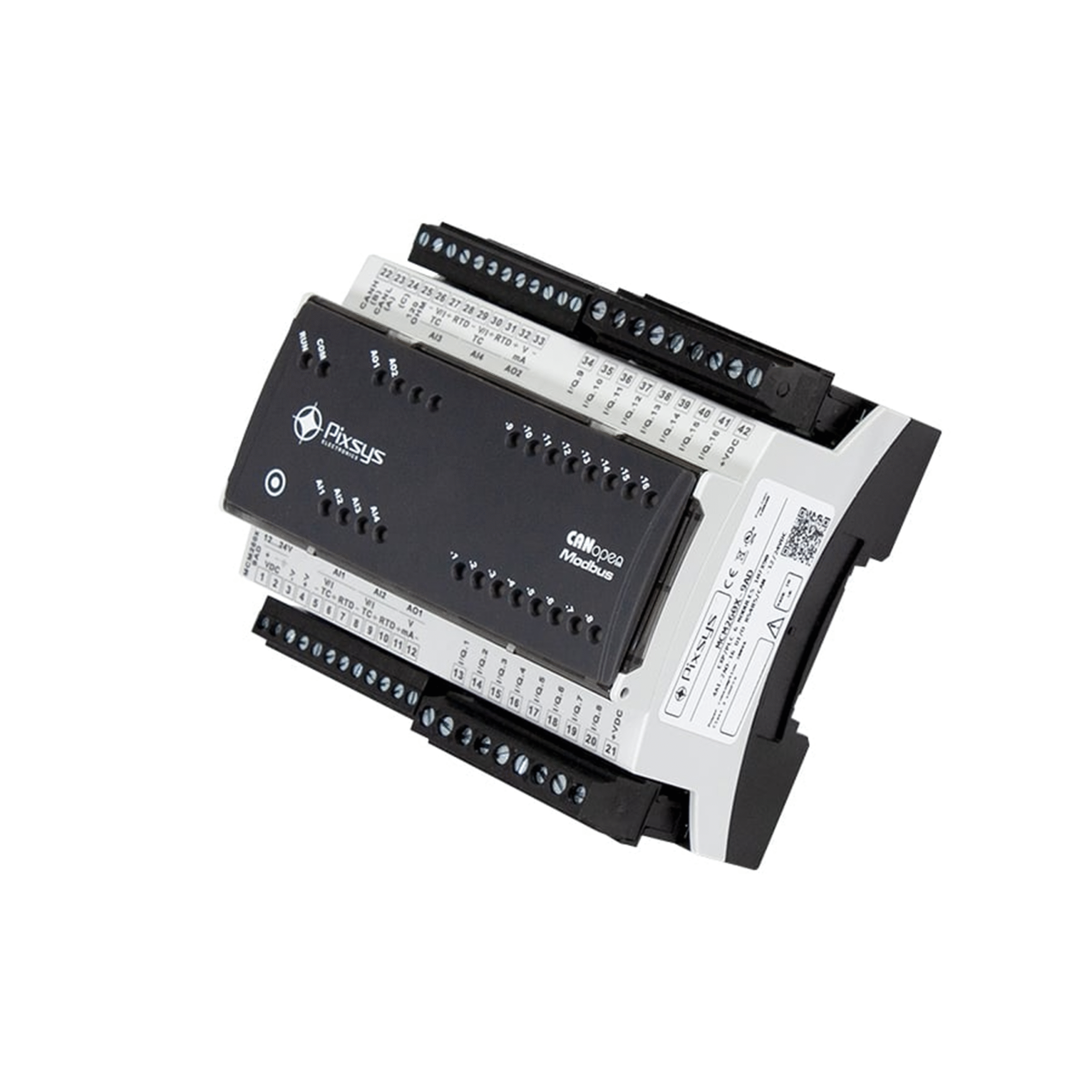

Pixsys MCM260X Series

Features:

✅ Multiple I/O combinations (6 models: 1AD to 9AD)
✅ Dual communication: RS485 Modbus RTU and CANopen
✅ Front panel keys and display for manual setup
✅ Compact DIN-rail mounting (71mm or 108mm width)
✅ Wide I/O support: digital, analog, counter, encoder
✅ High-resolution analog inputs (16-bit)
✅ Analog outputs: selectable 4–20mA or 0–10V

The Pixsys MCM260X series offers a robust and flexible solution for expanding PLC systems in industrial automation. These modular I/O units support analogue, digital, and counter inputs/outputs, enabling seamless integration with various control architectures.

Description
Technical Data
Application
Downloads
Supply & Shipping Details

Description

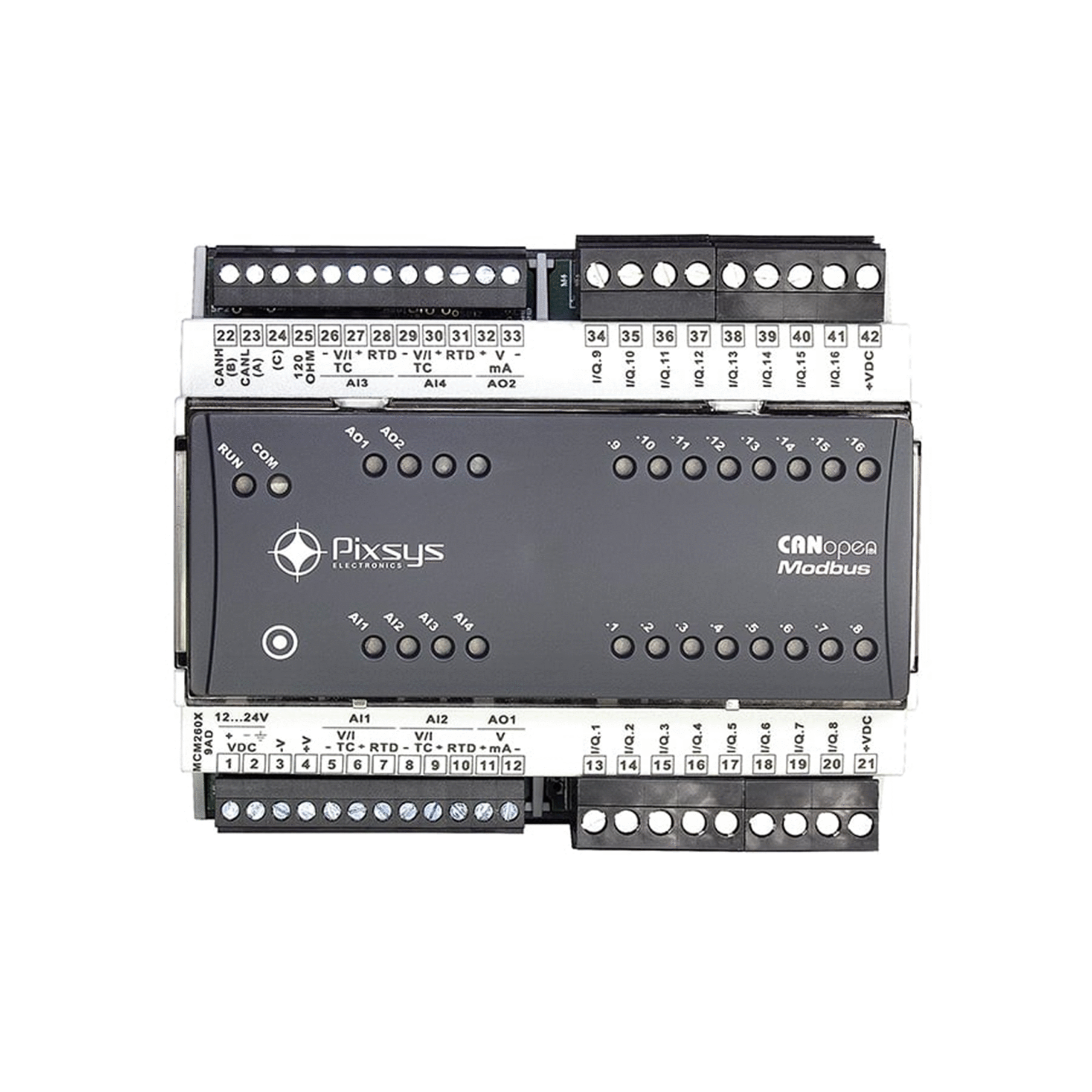

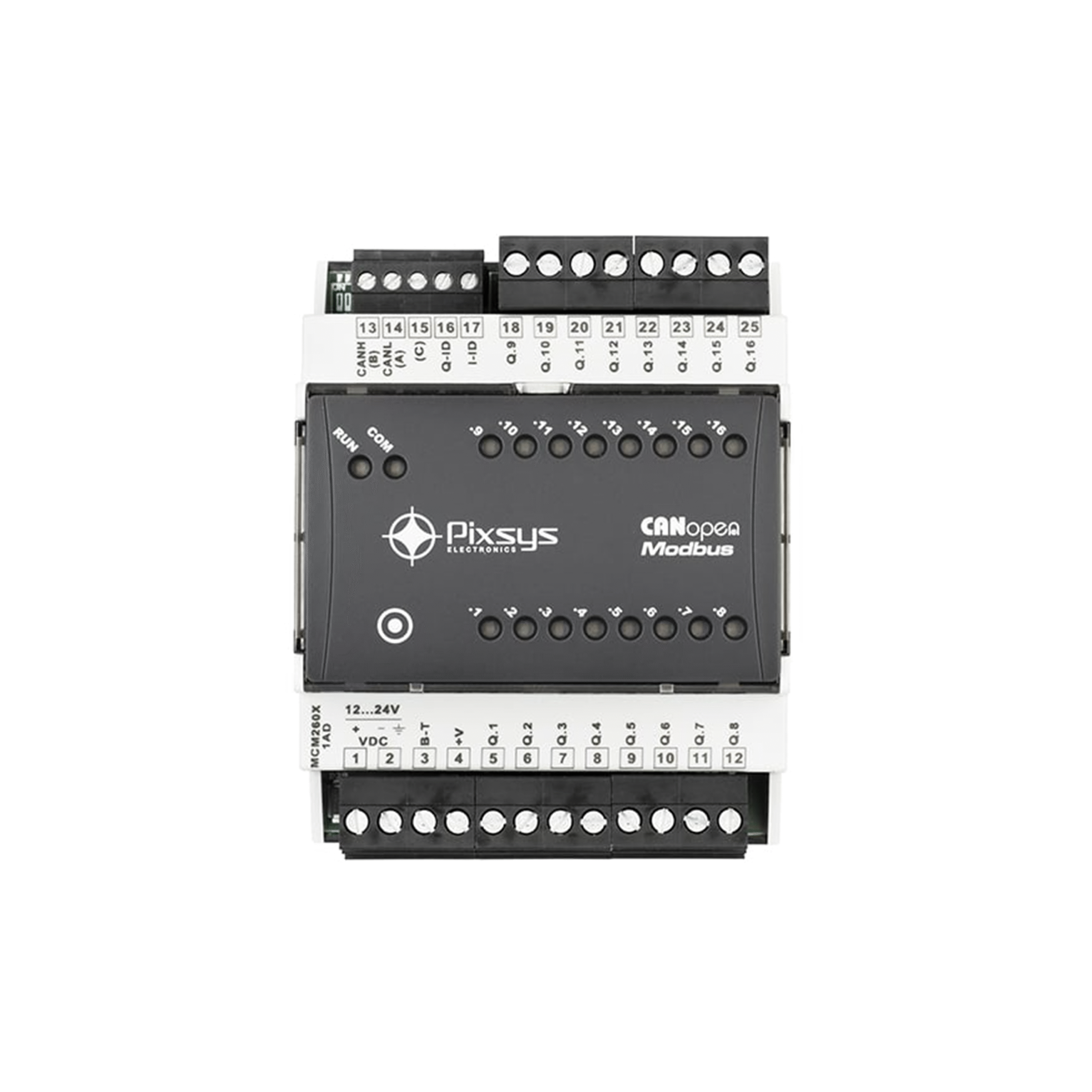

MCM260X | Remote I/O CANOpen – Modbus

There are six distinct programmable analogue-digital I/O combinations for the data acquisition/actuation modules MCM260X. The accessible digital lines are freely configurable as inputs or outputs, specifically in the 9AD version.

The MCM260X modules were initially designed as I/Os for Pixsys PLCs and HMIs, but its CANopen and Modbus-RTU communication interfaces make it simple to link them with external devices.

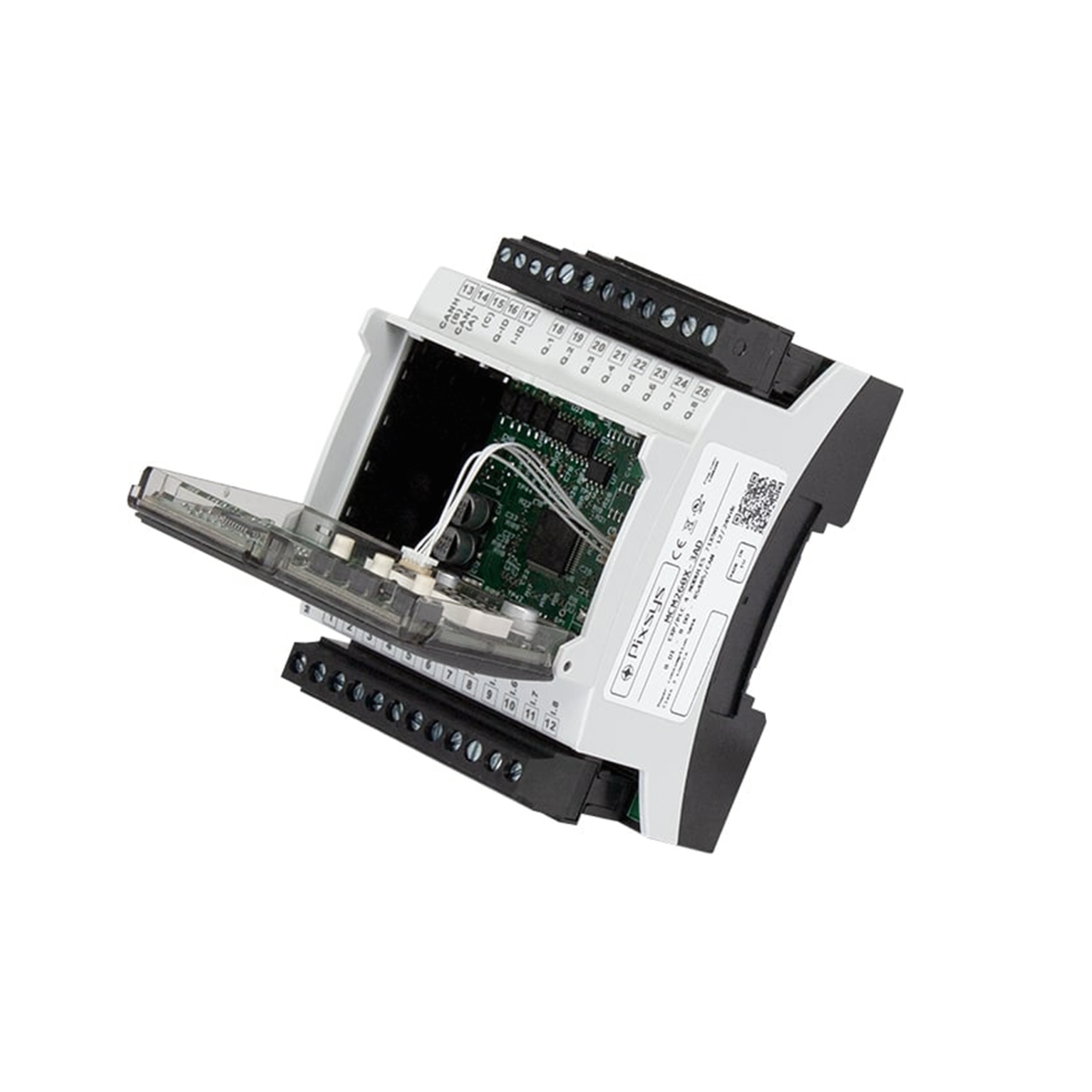

NFC (near field communication) and the MyPixsys App, the flagship of all recent Pixsys instrumentation lines, which saves time and doesn’t require any wiring or device power supply, or a display and function keys integrated beneath the front panel can be used to address and set communication parameters.

For quick project interaction with other Pixsys devices, the Pixsys LogicLab development tool supports the MCM260X family.
CAN in Automation (CiA) has approved the 5AD and 9AD versions for conformance to the CiA 301 communication profile and the CANopen application level.

We are excited to introduce you to the Pixsys MCM260X Series – a compact, intelligent Remote I/O solution designed to meet a wide variety of automation requirements with maximum flexibility and ease of use.

Why Promote the MCM260X Series to Your Customers?

✅ Universal I/O Options – Digital, Analog, Thermocouple, RTD, Relay Outputs
✅ Flexible Communication – Supports Modbus RTU (RS485) and CANopen protocols
✅ Easy Setup – NFC configuration via MyPixsys App, no PC needed

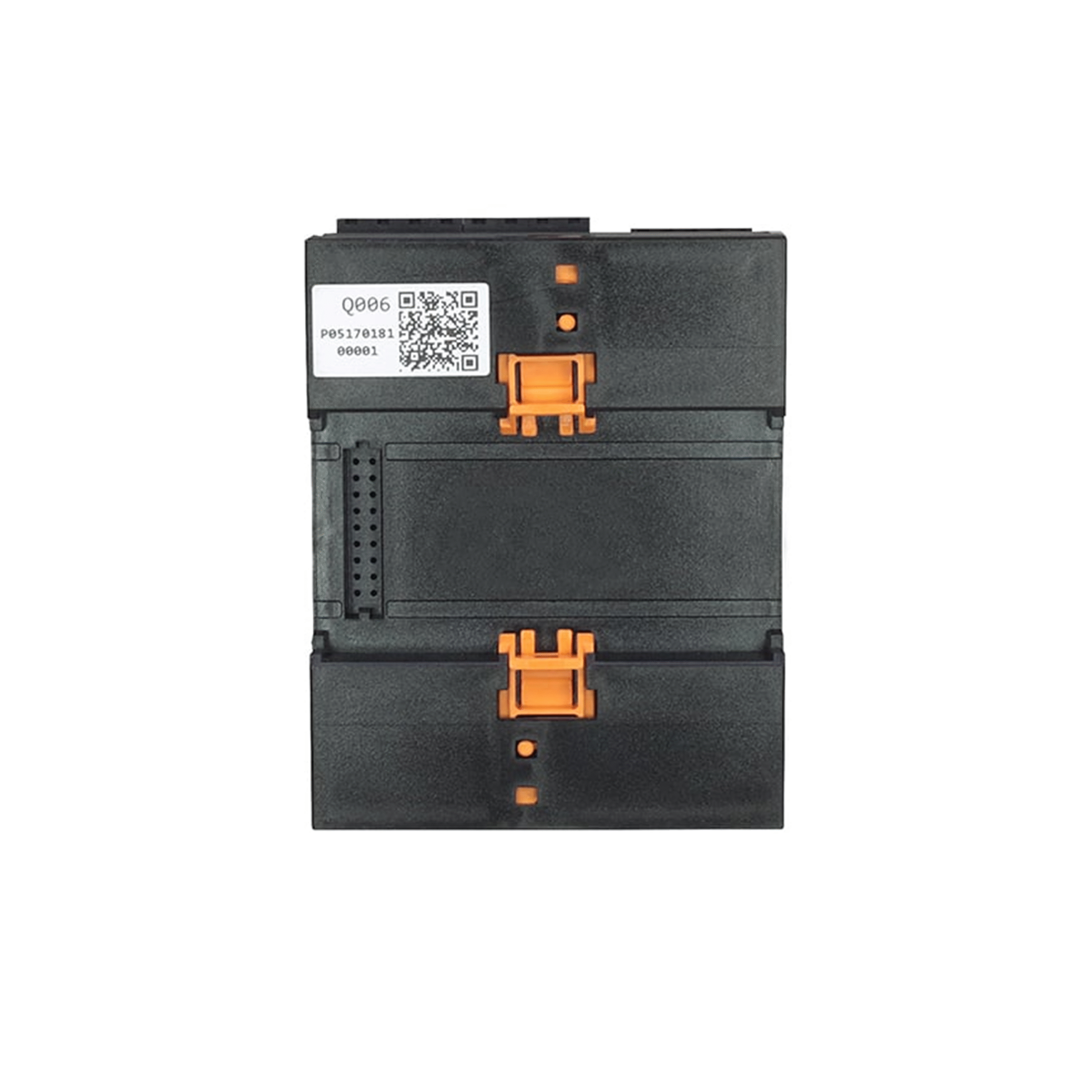

✅ DIN Rail Mountable – Compact housing with extractable terminals for easy installation
✅ High Sampling Speed – Up to 2.1ms programmable sampling time
✅ Isolated Communication Ports – Ensuring safety and signal integrity

Whether your customers are system integrators, panel builders, or OEMs, the MCM260X Remote I/O modules are the perfect choice for decentralized automation systems, PLC expansions, and retrofit projects.

Available Models:

Digital I/O Only: 16DI / 16DO / Mixed I/O
Relay Output Models
Analog Input/Output Models with Universal Sensor Compatibility
Compact 4 and 6 module DIN sizes

Technical Data

Pixsys MCM260X – Remote I/O Module

🔹 MCM260X ▾

Power Supply 12–24V AC (All models)

Consumption 10W to 85W depending on model

Digital Inputs Up to 16 PNP, 12–24V DC (model-specific)

Digital Outputs Up to 16 PNP, 700mA per channel, 3A total

Relay Outputs 8 Relay Outputs (5A @ 250V AC, resistive load) – Model 4AD

Analog Inputs 4 inputs, 16-bit resolution; TC (K, S, R, J, T, E, N, B), RTDs, 0–10V, 4–20mA, 0–60mV, Potentiometer

Analog Outputs 2 outputs selectable as 4–20mA or 0–10V (±0.2% F.S.)

Encoder/Counter Inputs Up to 4 channels, 32-bit, max 80kHz

Sampling Time Programmable up to 2.1ms (≈470Hz)

Display & Indicators 0.52" display, RUN/COM/I/O status LEDs

Configuration Front panel buttons and via NFC using MyPixsys App

Mounting DIN rail (EN50022); 4-mod: 71×90×64mm, 6-mod: 108×90×64mm

Operating Temp 0 – 45°C

Humidity Range 35 – 95% RH

Protection IP20 (housing and terminals)

Isolation Galvanic isolation from supply to analog I/Os and serial bus

Certifications CE, UL; CANopen certified (5AD & 9AD)
