Emerson

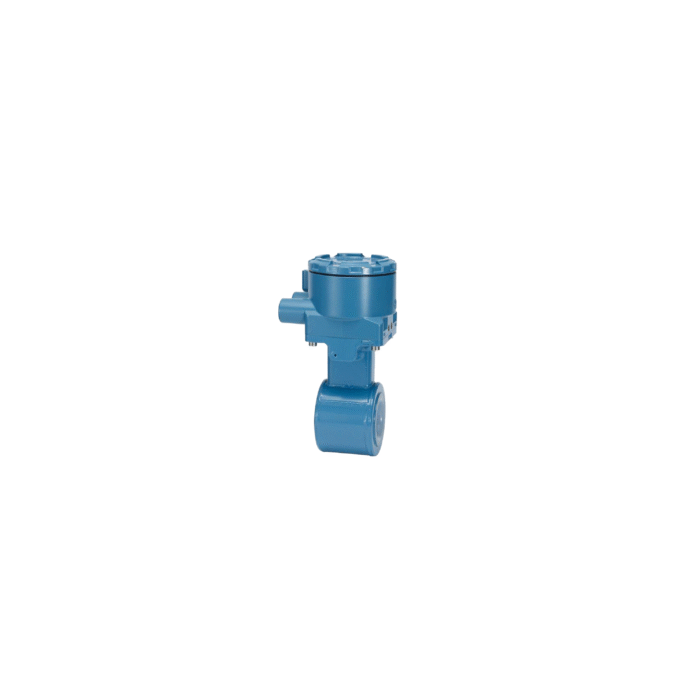

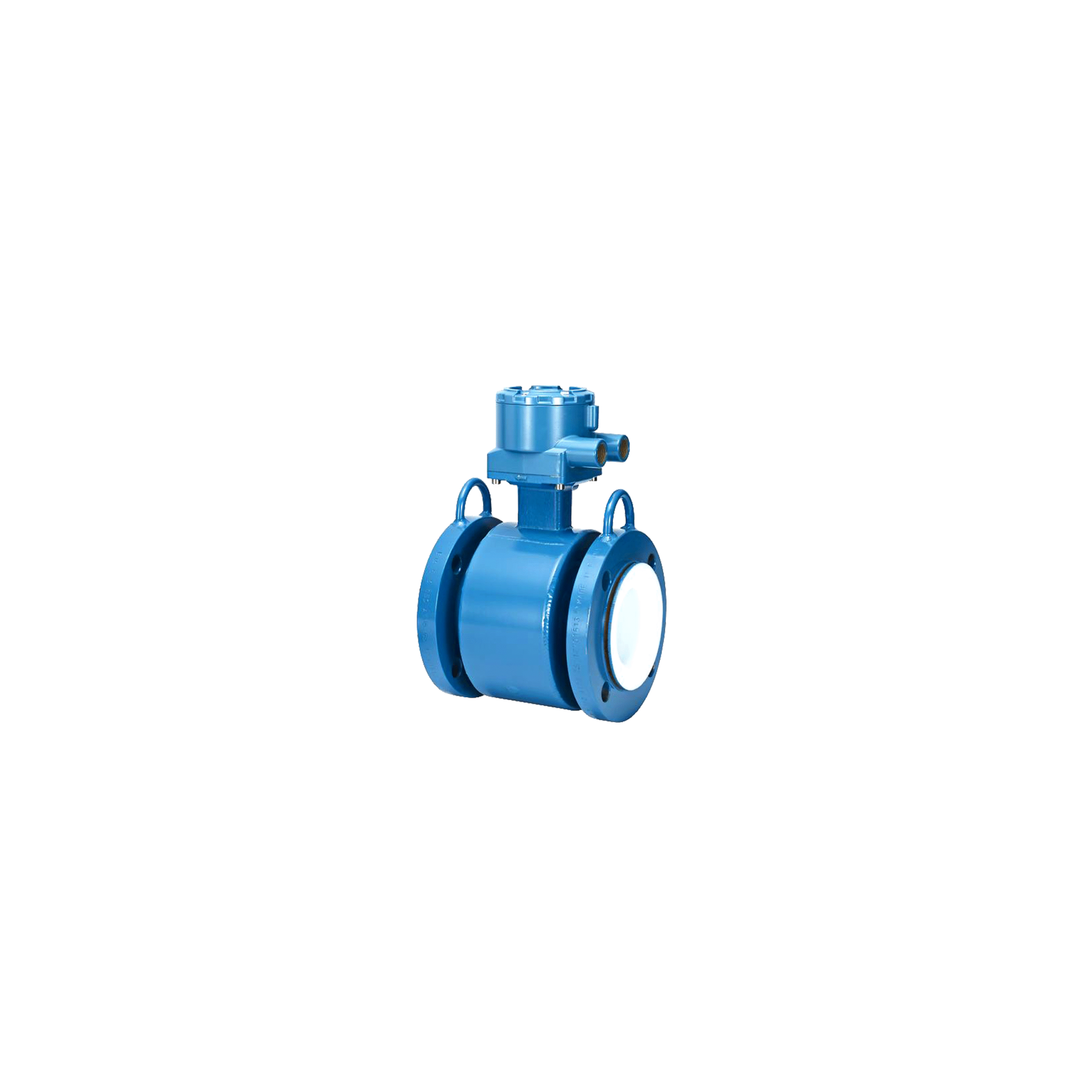

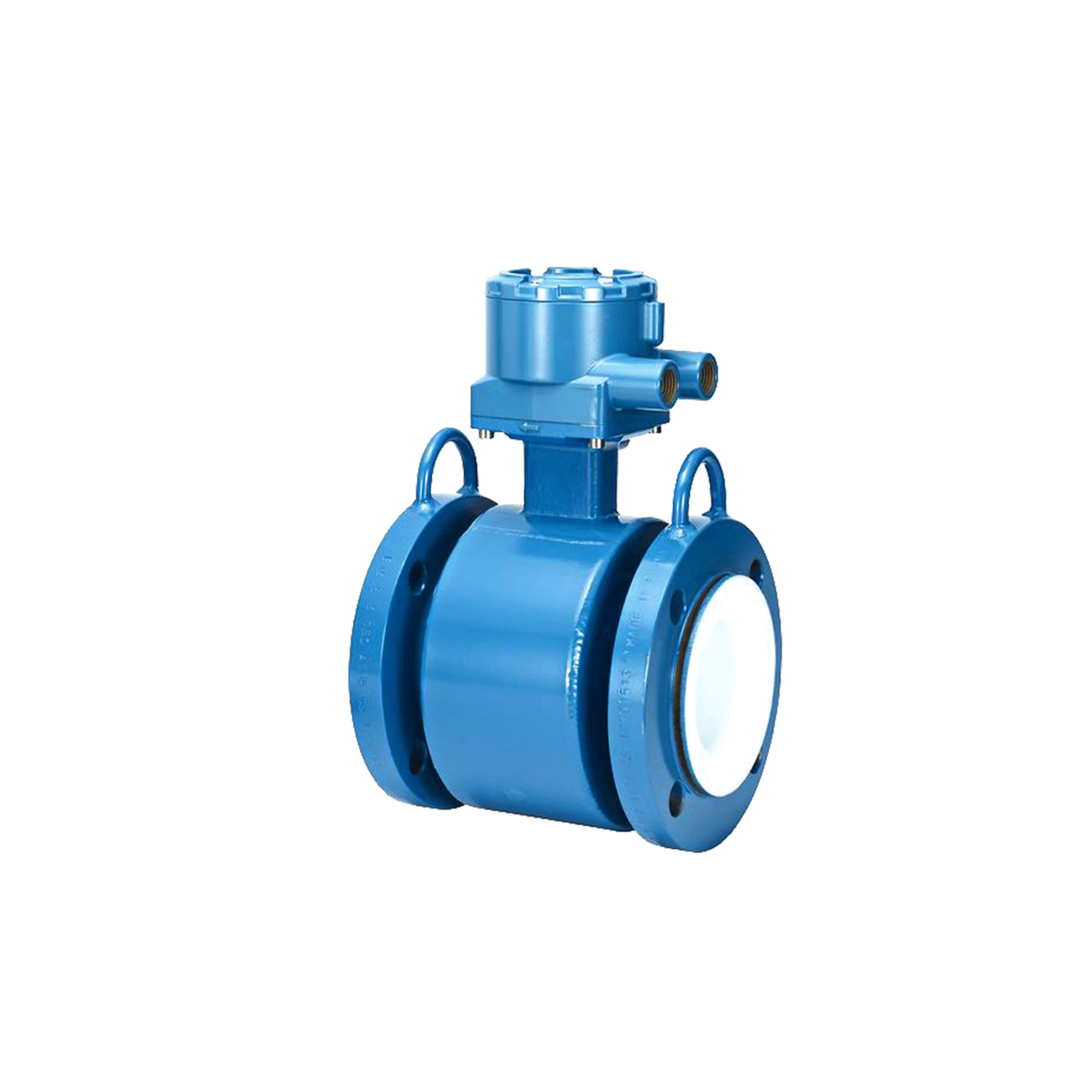

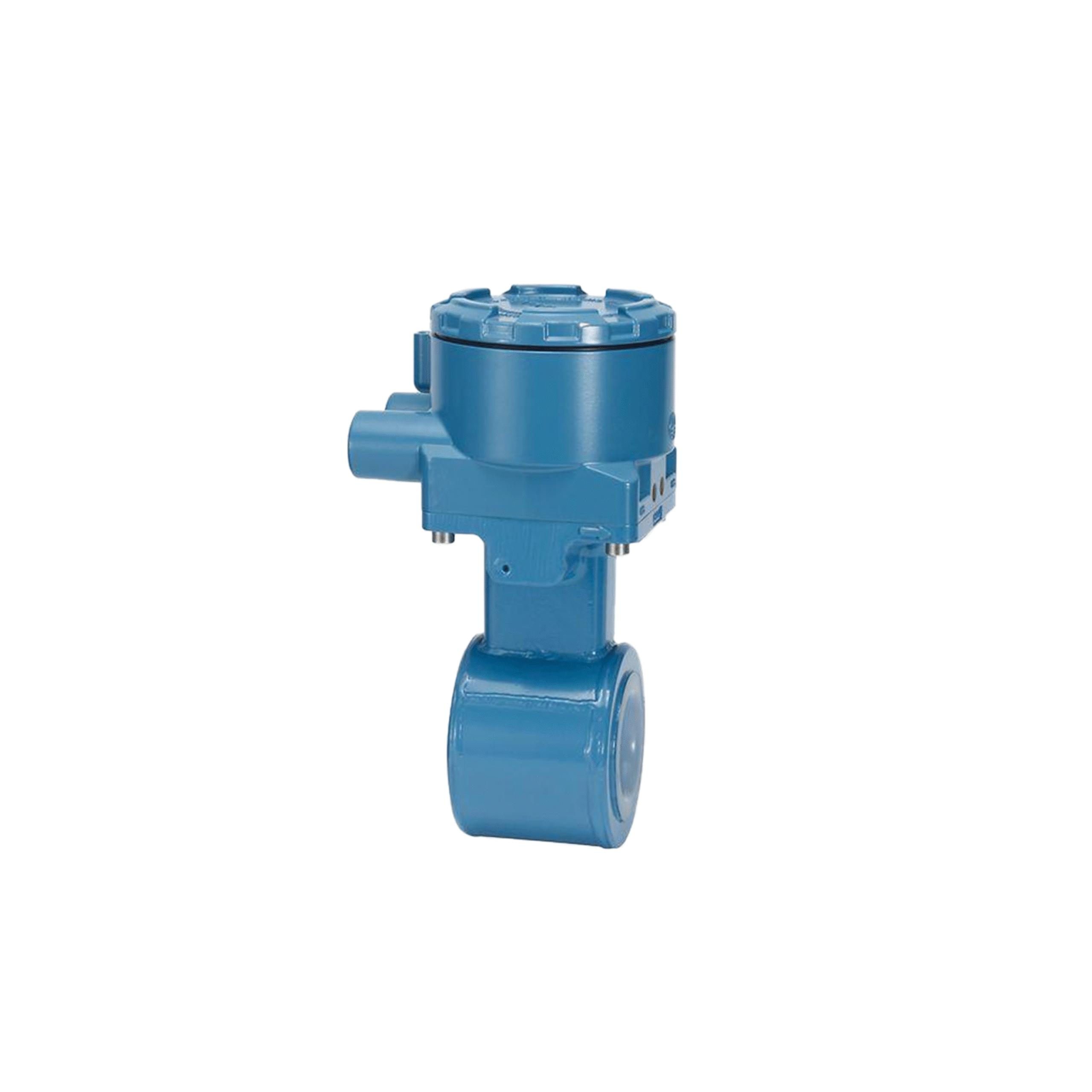

Rosemount 8700M Magnetic Flowmeter

Features:

✅ Non-intrusive, obstructionless measurement with no moving parts
✅ Available in integral and remote-mount configurations
✅ Fully welded sensor housing for maximum protection and durability
✅ Multiple liner and electrode materials for corrosive and abrasive media
✅ Wide range of sizes (up to 48 inches) to suit multiple applications
✅ Submersible, sealed housing (IP68/NEMA 6P) suitable for flooded areas

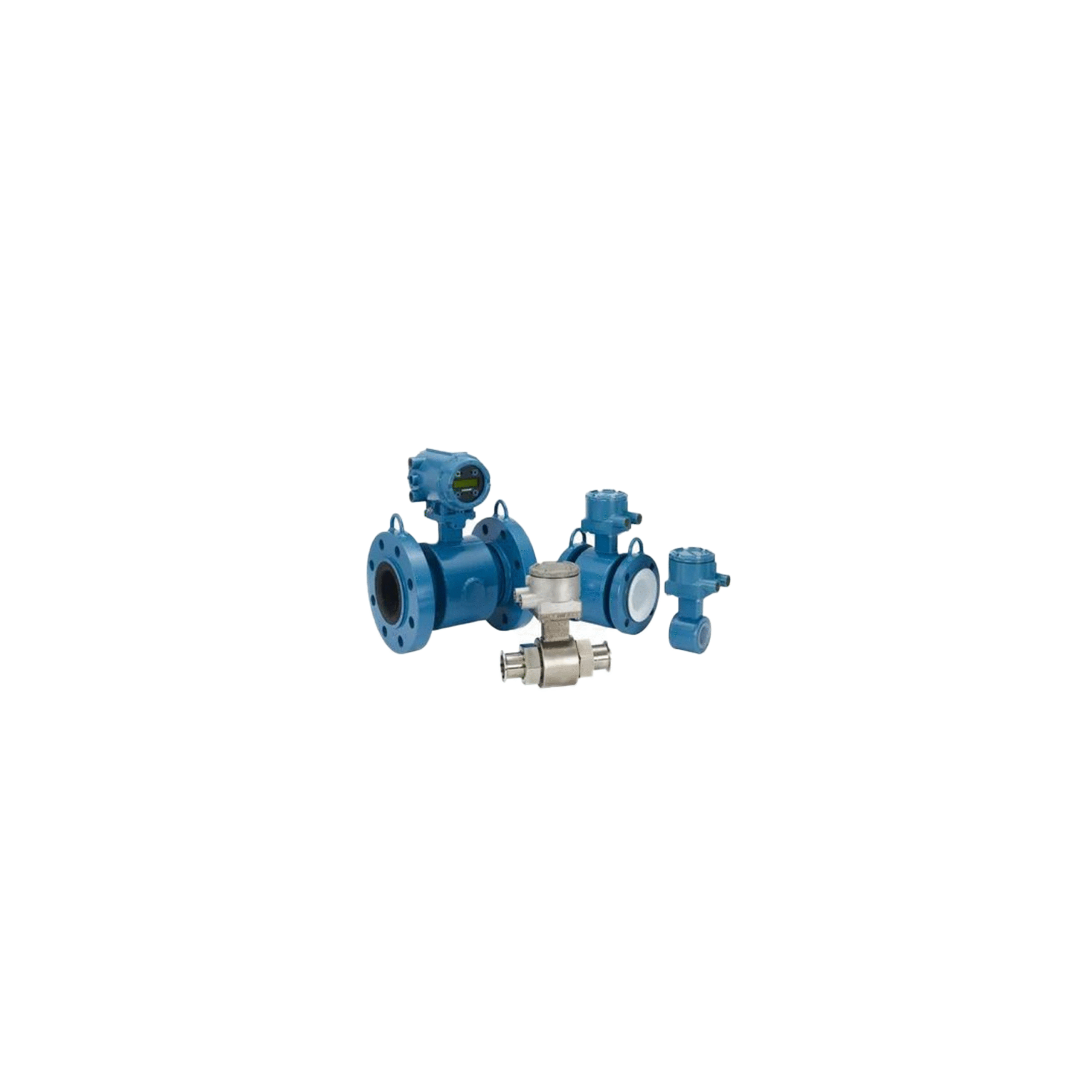

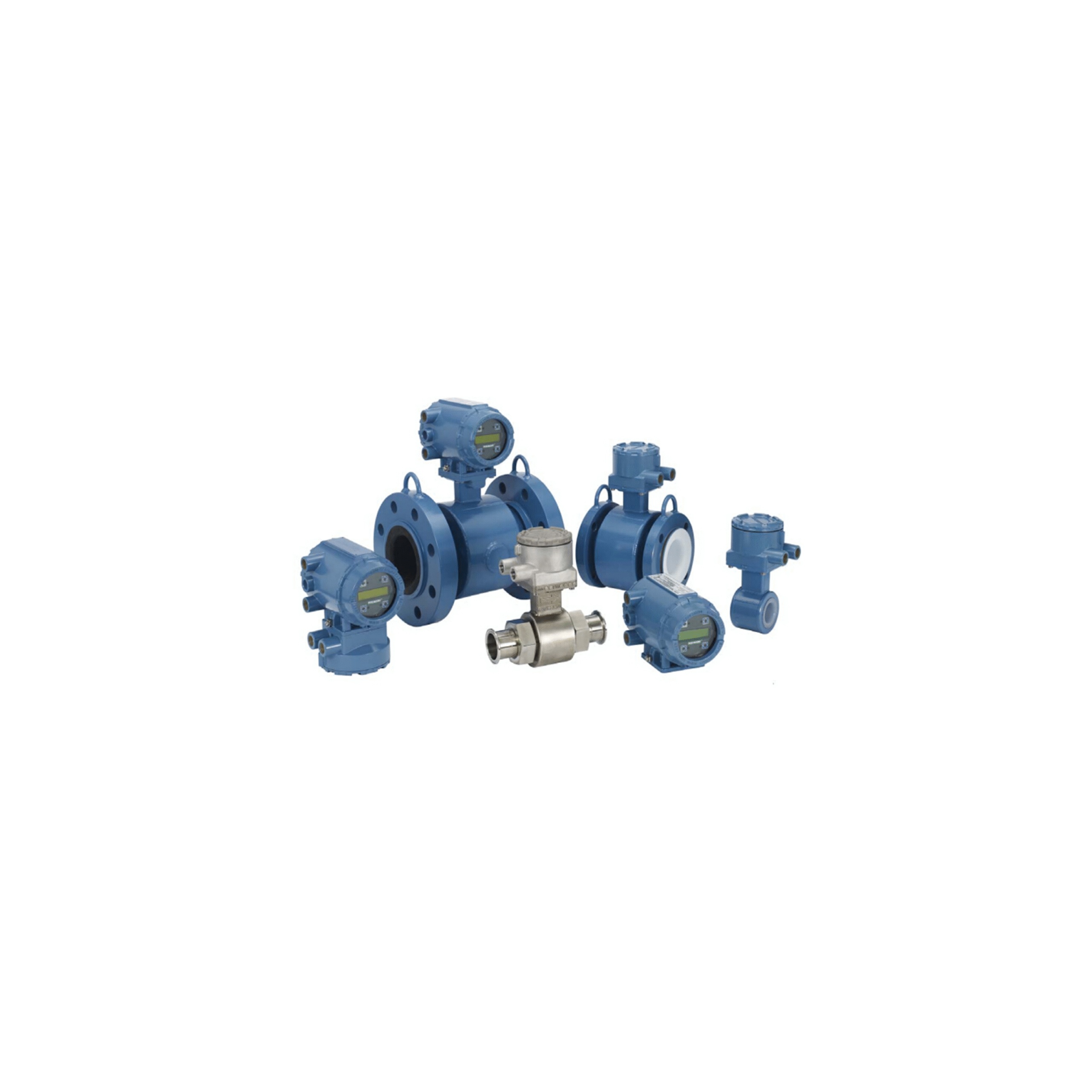

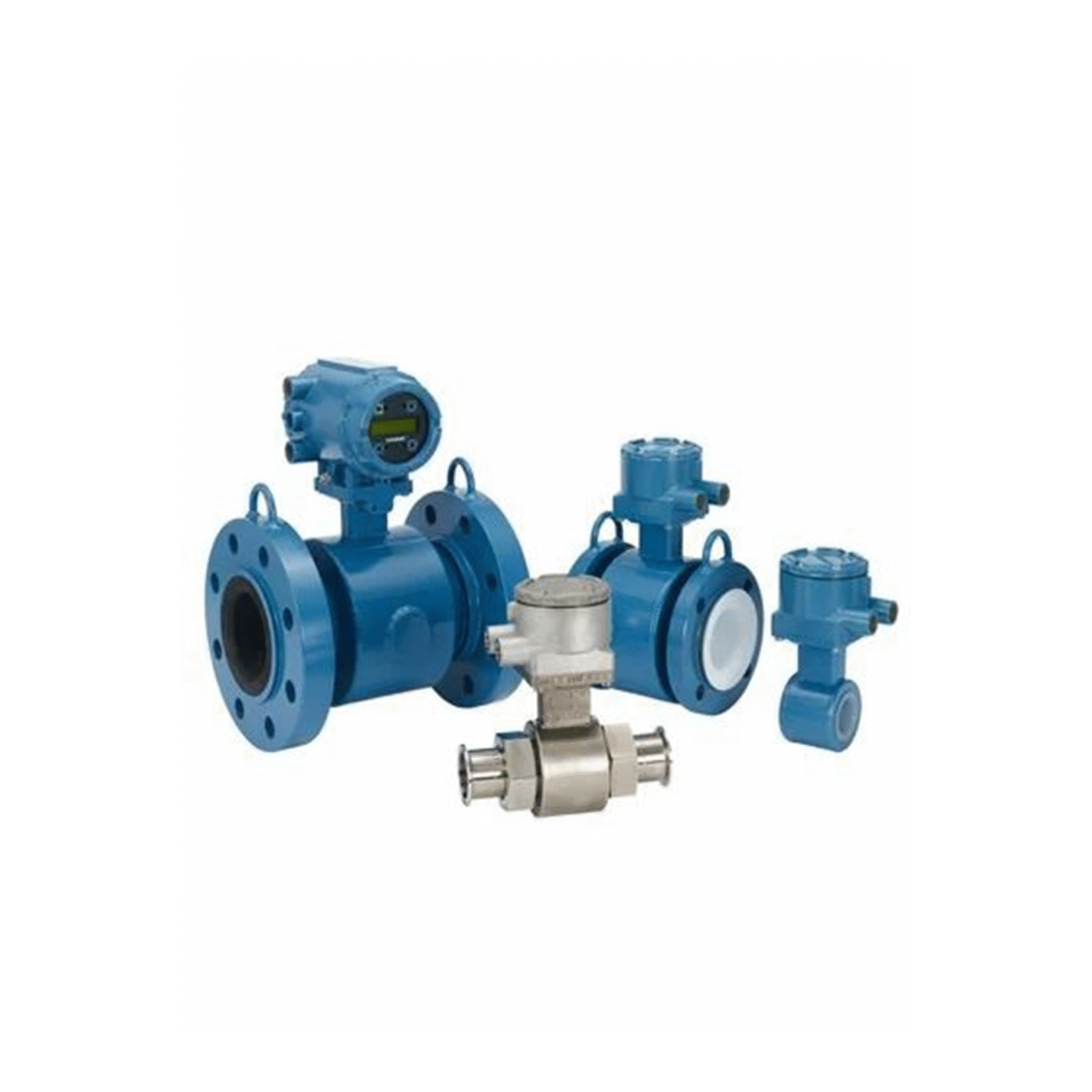

To ensure compatibility with almost all applications and installations, the Rosemount 8700M Magnetic Flowmeter Platform comes in a range of sensor styles and combinations.



Brand

Compare
Add to wishlist
SKU: N/A Categories: , Brand:
Description

The Rosemount™ 8700M Magnetic Flowmeter System from Emerson is a highly accurate, reliable, and easy-to-use flow measurement solution ideal for conductive fluid applications. Designed for tough industrial conditions, the 8700M system combines a magnetic flow tube with advanced transmitter diagnostics, delivering stable flow readings across a wide range of process variables. Whether you’re measuring water, slurries, chemicals, or corrosive fluids, the 8700M offers unmatched performance, longevity, and integration flexibility.

Accurate, Reliable Flow Measurement for Conductive Liquids

The Rosemount™ 8700M Magnetic Flowmeter System from Emerson delivers highly accurate, stable, and maintenance-free flow measurement for a wide range of conductive liquids. Engineered with advanced diagnostics and rugged construction, the 8700M series is ideal for demanding process applications in industries such as water & wastewater, chemical, power, food & beverage, and life sciences.

Technical Data

Technical Data

Rosemount 8700M Magnetic Flowmeter

🔹 Rosemount 8700M ▾

TechnologyElectromagnetic flow measurement
Flow Range0.04 to 12 m/s (0.13 to 39.4 ft/s)
Nominal Pipe Sizes1/10" to 48" (2.5 mm to 1200 mm)
Accuracy±0.25% of rate (±0.15% with optional calibration)
Repeatability±0.1% of rate
Temperature Range–20 °C to +180 °C (–4 °F to +356 °F)
Pressure RatingUp to 160 bar (2320 psi), depending on size/class
Electrode Materials316L, Hastelloy® C, Titanium, Tantalum, Platinum
Liner OptionsPTFE, PFA, Neoprene, Polyurethane, ETFE
Ingress ProtectionIP68 / NEMA 6P – fully sealed for submersion
Output/Communication4–20 mA, HART, FOUNDATION Fieldbus, Modbus, Profibus
Power SupplyLoop-powered (2-wire) or 85–265 VAC / 9–36 VDC options
CertificationsATEX, FM, CSA, IECEx, SIL2/3, 3A, EHEDG, NSF
DiagnosticsSmart Meter Verification, Grounding Check, Empty Pipe, Electrode Coating Detection

Application

Application

  • Water & Wastewater – Distribution networks, lift stations, effluent monitoring
  • Chemical & Petrochemical – Acids, caustics, solvents, polymer flows
  • Food & Beverage – Process water, CIP cycles, brewing, dairy
  • Life Sciences & Pharmaceuticals – Sterile process media, cleaning agents
  • Pulp & Paper – Black liquor, pulp slurries, chemicals
  • Mining & Metals – Slurry lines, tailings, reagent dosing
  • Power Generation – Boiler feedwater, condensate return, cooling systems
Downloads
Supply & Shipping Details

Supply & Shipping Details

Related products

Compare
Close

Yokogawa EJA / EJX Series

,

Features:

✅ Long-Term Stability: ±0.1% of URL over 10 years ✅ Fast Response Time: 90 ms (EJX) for faster process control ✅ Multi-Protocol Support: HART, FOUNDATION Fieldbus, and BRAIN ✅ Wide Measuring Ranges: Suitable for low to high-pressure applications ✅ Explosion-Proof and Intrinsically Safe Options ✅ Self-Diagnostics and Digital Communication ✅ Compact, Lightweight, and Modular Design Yokogawa's high-end performance line of DPharp transmitters is called the EJX-A series. It was released in 2004 and provides the stability and performance required for demanding applications. The EJX-A series is the thoroughbred of the DPharp family of pressure transmitters due to its performance.
Add to wishlist
Quick view
Compare
Close

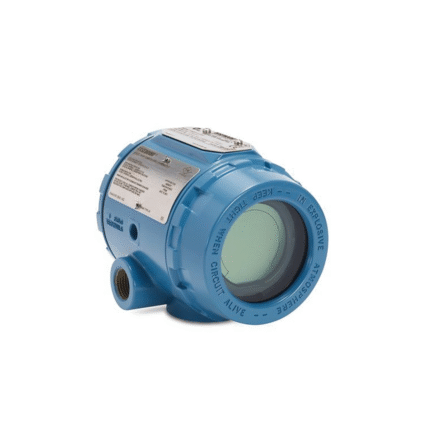

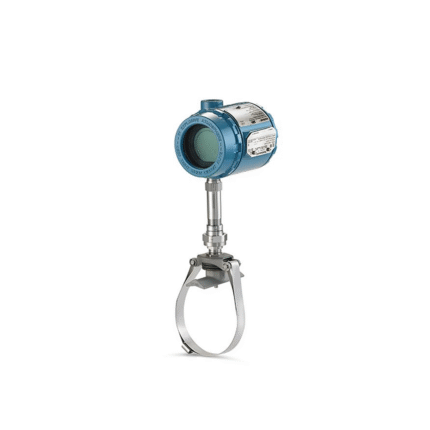

Rosemount 3144P Temperature Transmitter

,

Features:

✅ High Measurement Accuracy: Up to ±0.1 °C (with matching sensor) ✅ Dual-Sensor Input: Supports backup and differential temperature measurement ✅ Advanced Diagnostics: Sensor drift, RTD degradation, thermocouple open-circuit detection ✅ Hot Backup™ Technology: Automatically switches to secondary sensor ✅ Wireless Option Available: Compatible with WirelessHART® for remote installations ✅ Global Certifications: Explosion-proof, intrinsically safe, and SIL 2/3 capable ✅ Digital Protocols: HART®, FOUNDATION™ Fieldbus, Profibus® PA With built-in diagnostics, dual-input capability, high accuracy, and rugged construction, the Rosemount™ 3144P delivers superior temperature control and reliability. Its intelligent features reduce unplanned shutdowns, improve safety compliance, and help extend sensor life—all critical for demanding industrial operations.
Add to wishlist
Quick view
Compare
Close

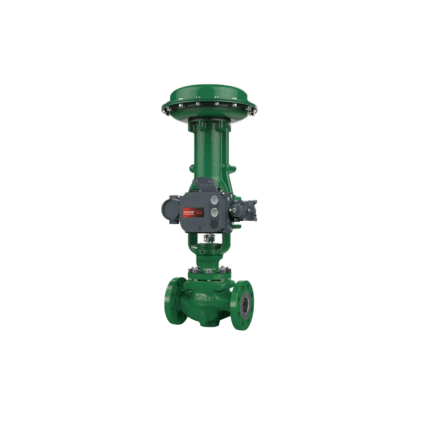

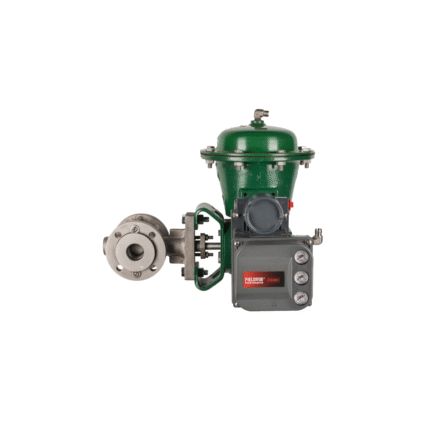

Emerson – Fisher Control Valves

,

Features:

✅ Wide range of valve types: globe, rotary, angle, and eccentric plug ✅ High accuracy and repeatability for precise flow control ✅ Anti-cavitation and noise-reduction trims for high-pressure applications ✅ Available in sizes from ½” to 36” and beyond ✅ Suitable for low-flow to high-pressure drop applications ✅ Easy integration into DCS/PLC systems with smart instrumentation Maintaining Process Control's Safety, Effectiveness, and Intuition for All Time We have a strong commitment to standards and procedures that guarantee creative and dependable product designs since we are aware of the serious repercussions of process failure. Customers will continue to recognize the FisherTM brand as a symbol of honesty for many years to come.
Add to wishlist
Quick view
Compare
Close

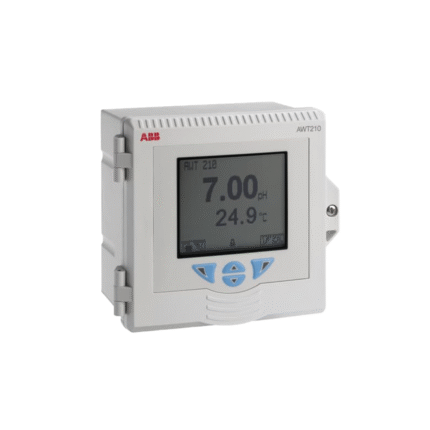

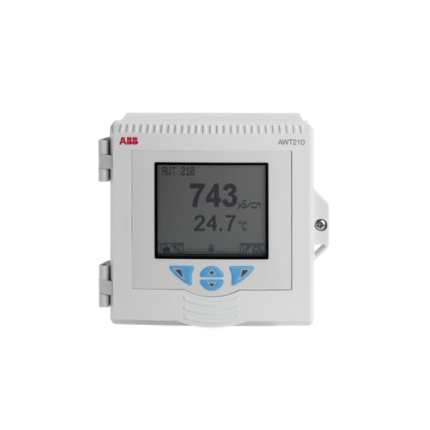

ABB – pH, Conductivity, DO Sensors

,

Features:

✅ Glass and ISFET sensor options for a wide pH range ✅ Integrated temperature compensation ✅ Pre-pressurized reference system for long life ✅ High accuracy and fast response time ✅ Optical and electrochemical measurement principles ✅ Rapid startup and response time pH sensor is one of the most important tools for measuring pH and is commonly used in water quality monitoring. This type of sensor is capable of measuring alkalinity and acidity in water and other solutions.
Add to wishlist
Quick view
Compare
Close

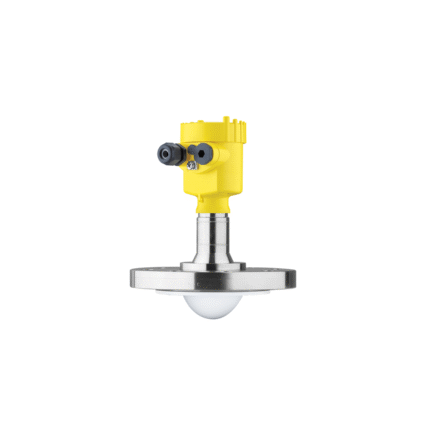

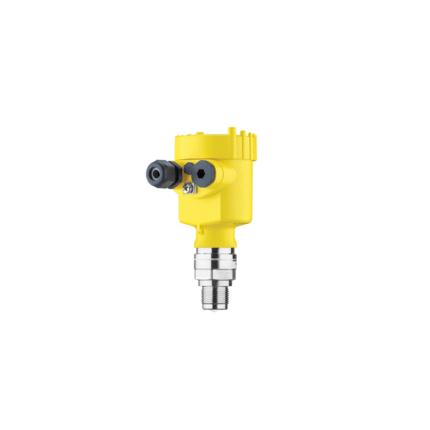

VEGAPULS 6X Level Transmitters

,
