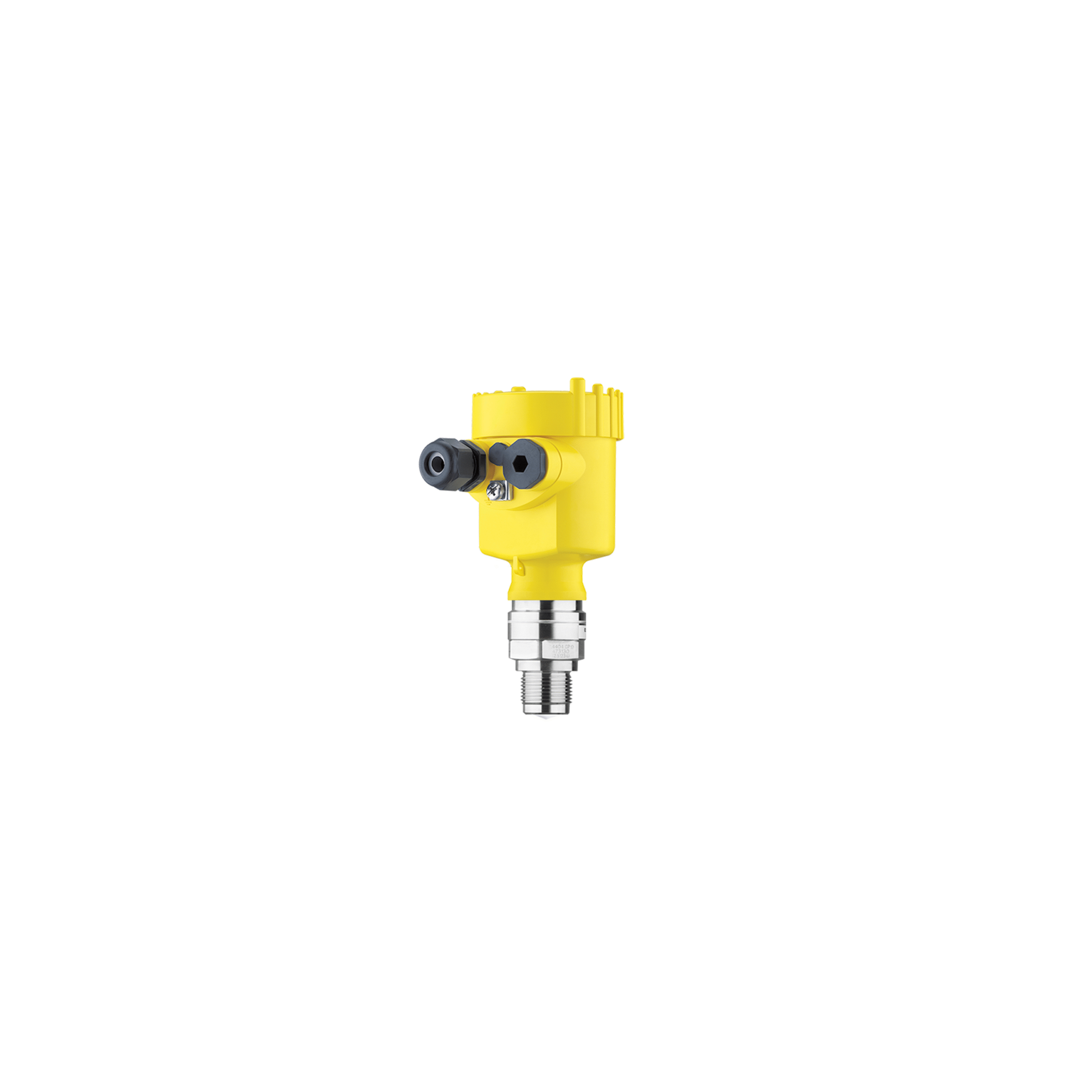

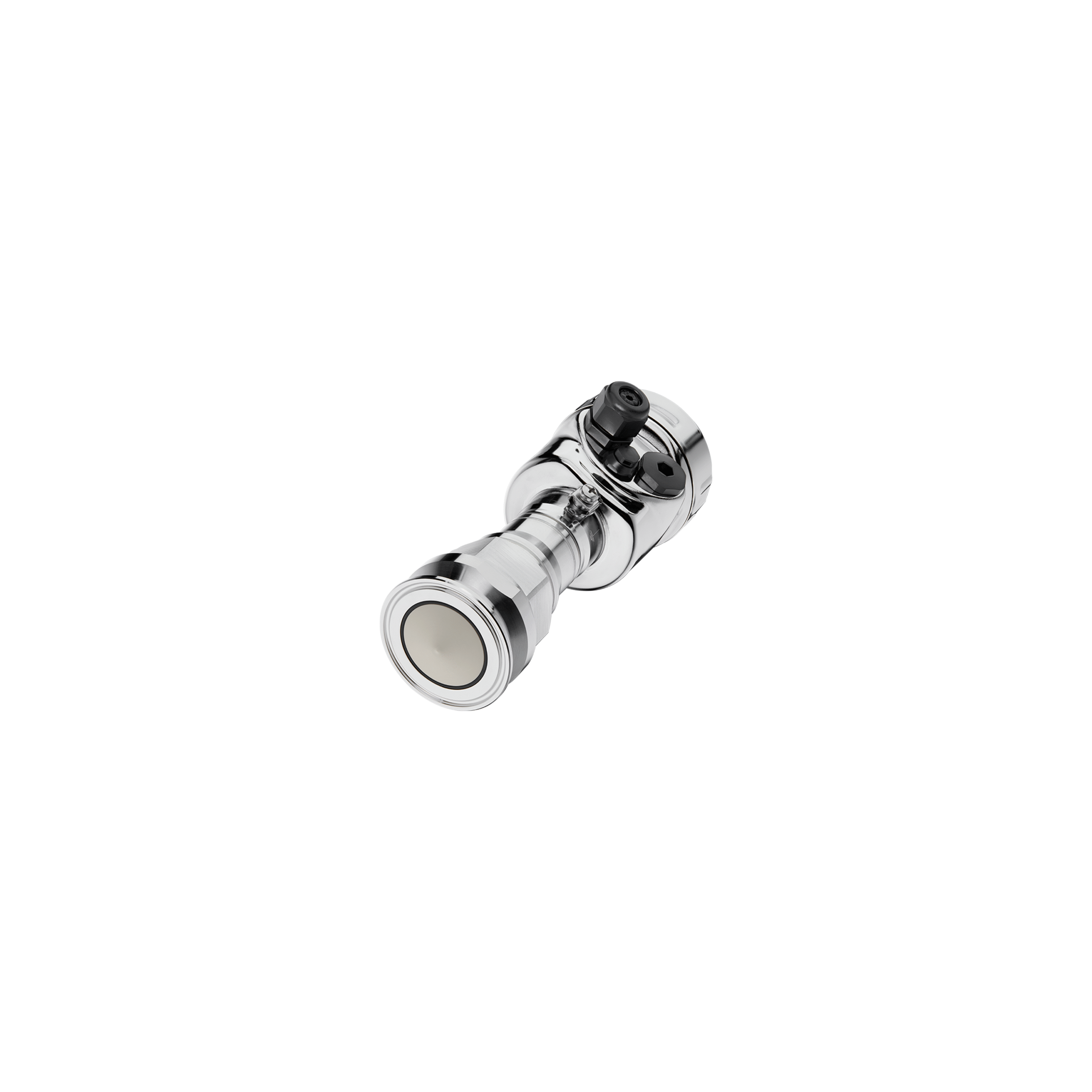

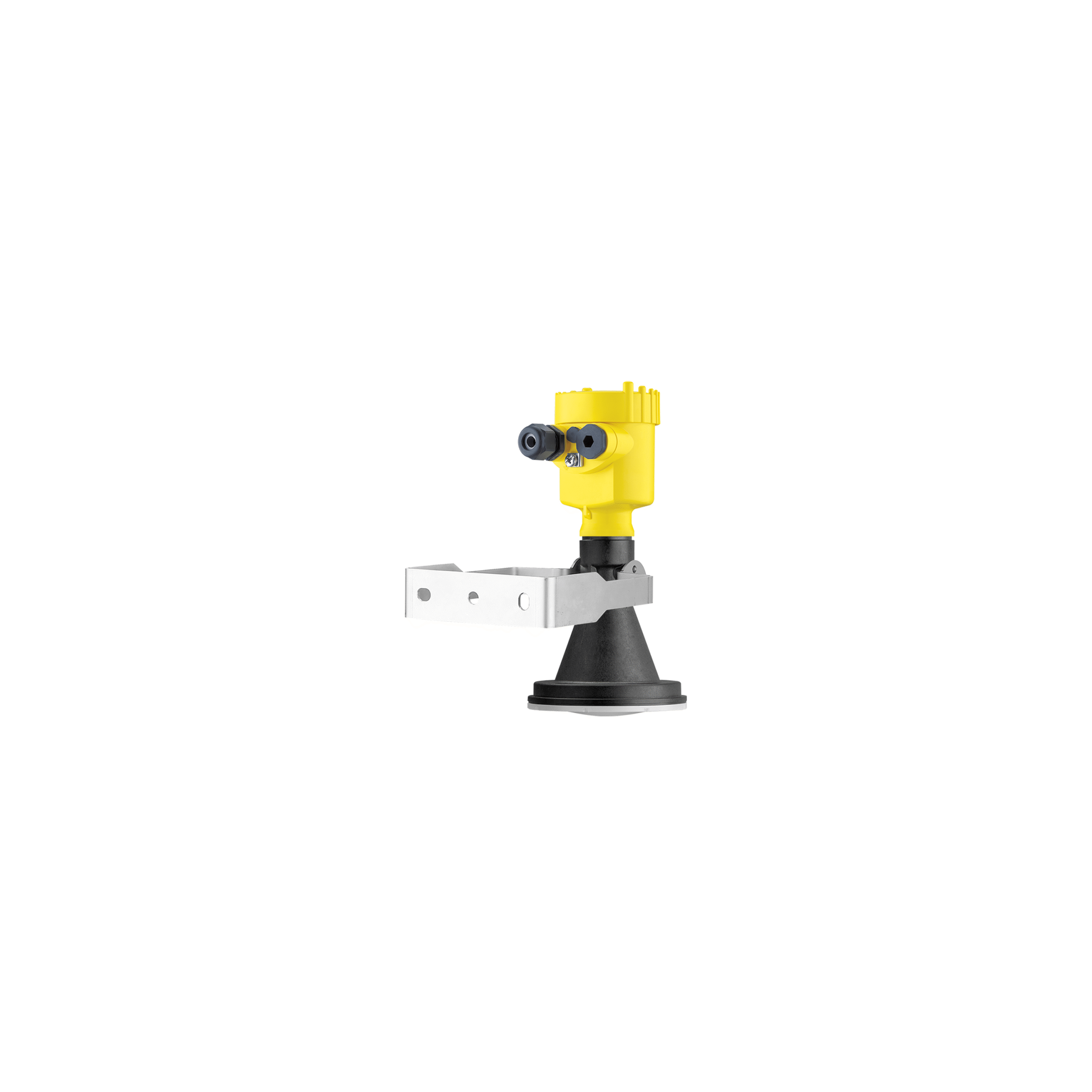

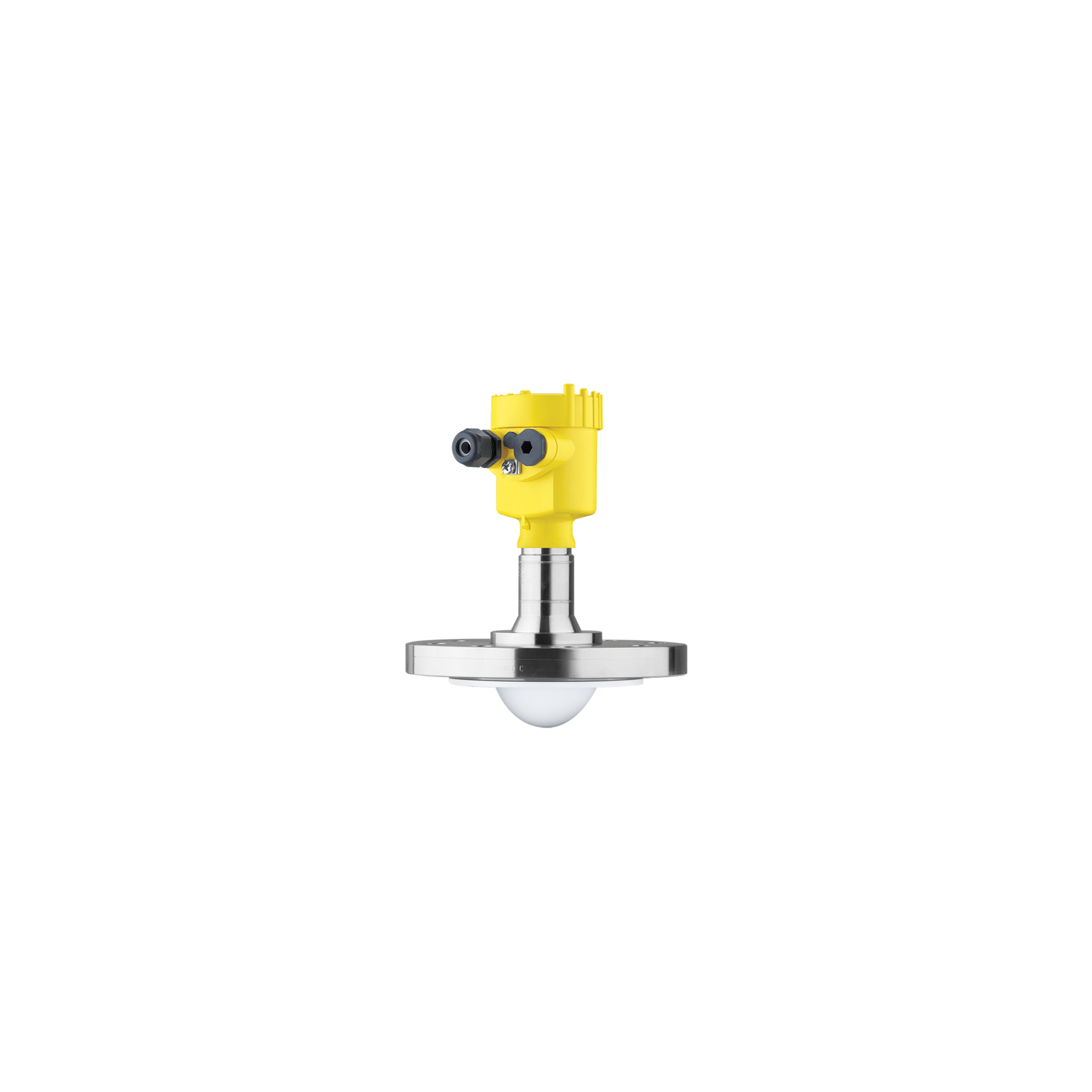

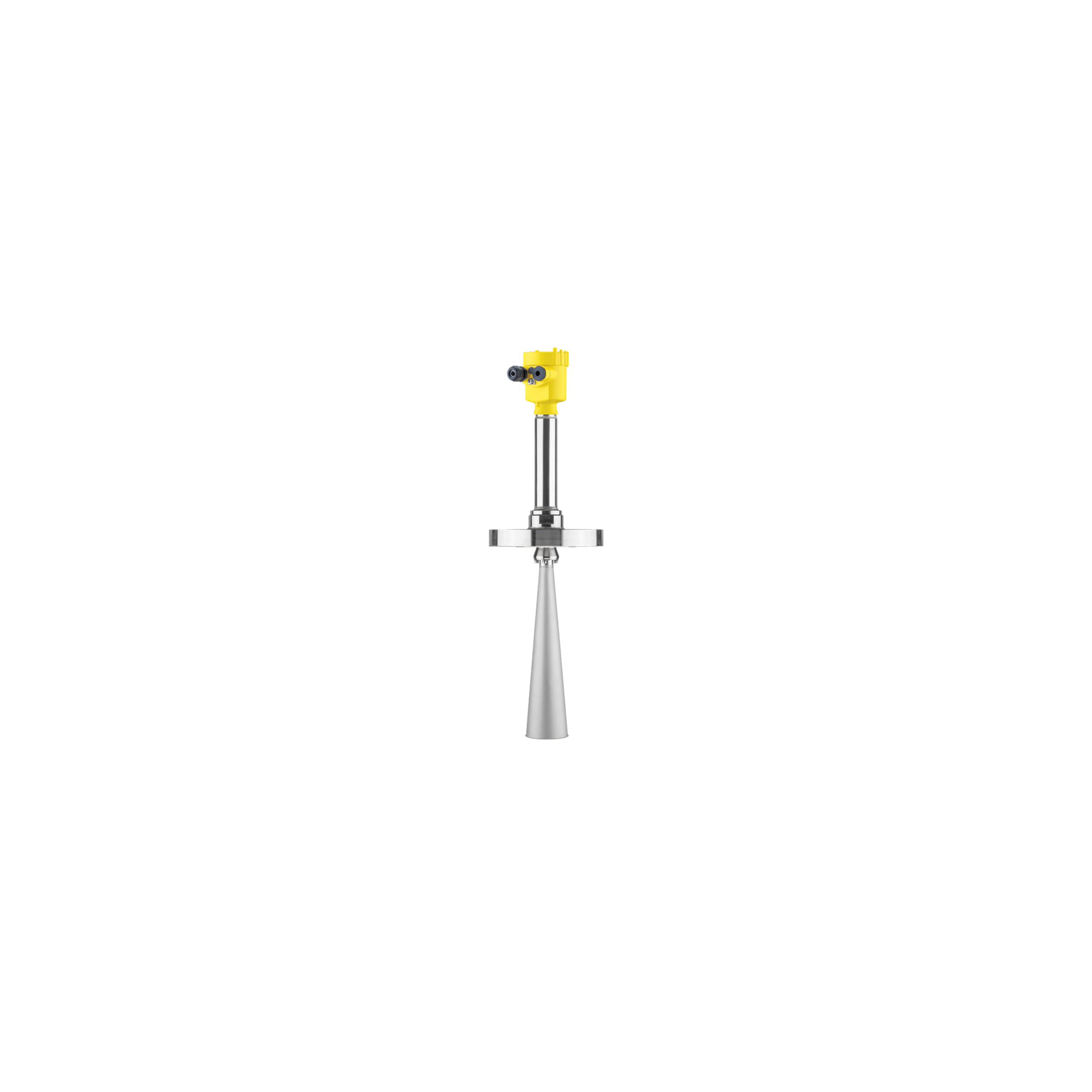

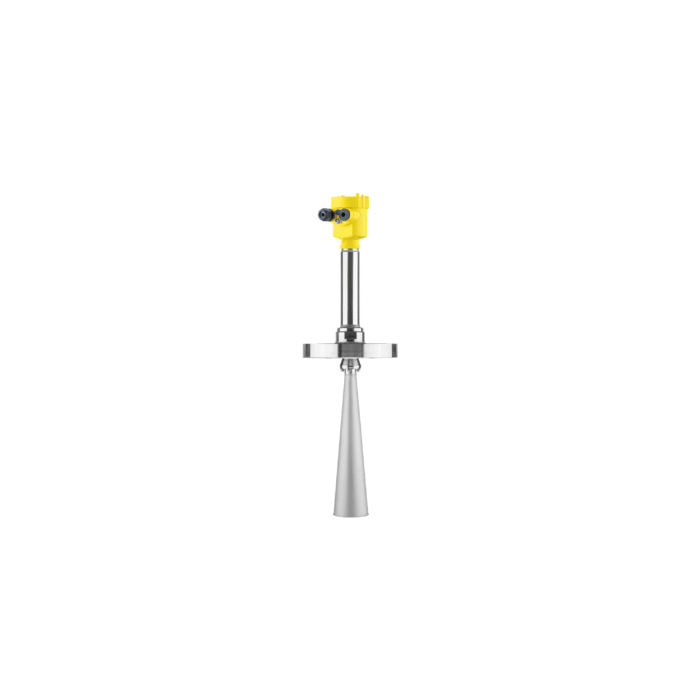

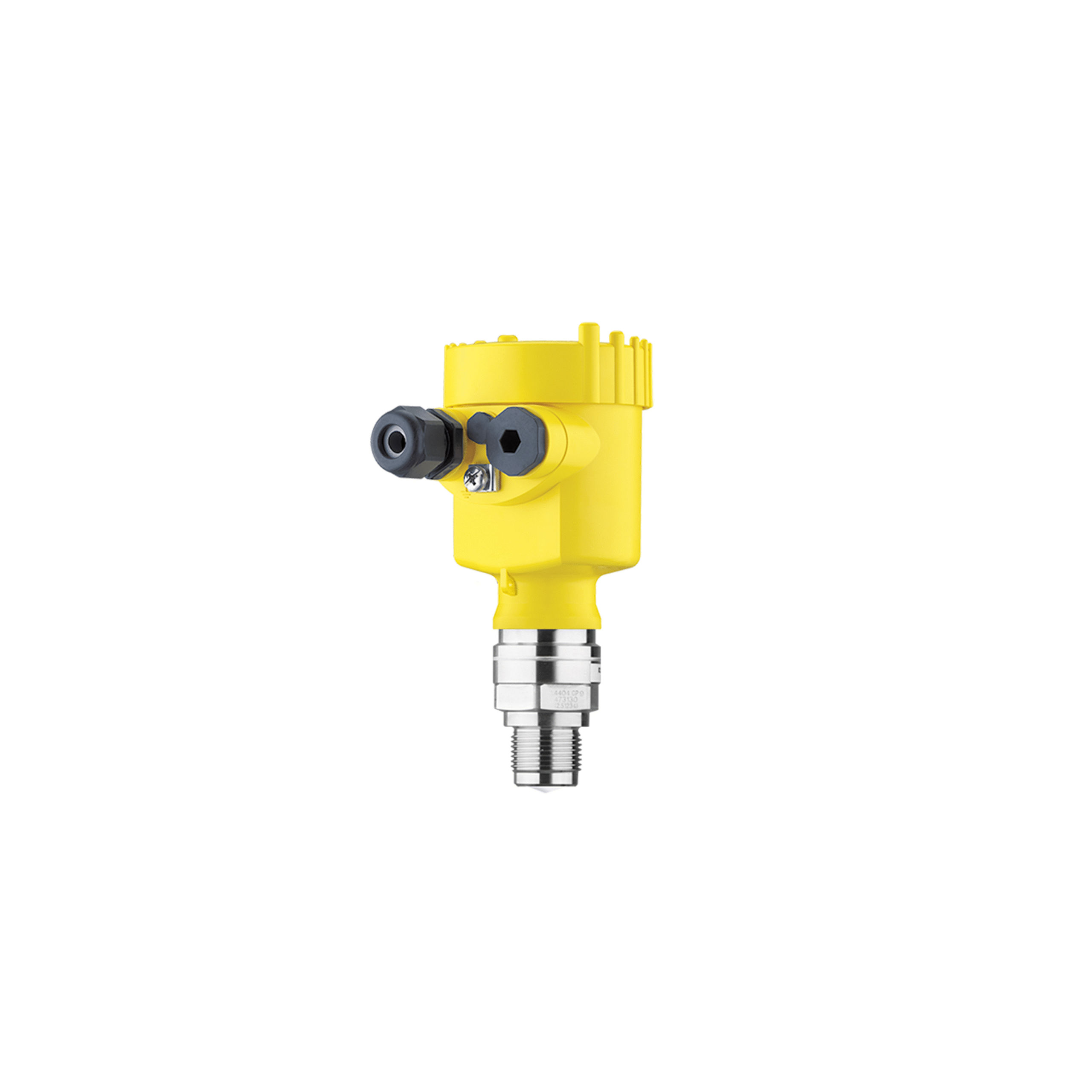

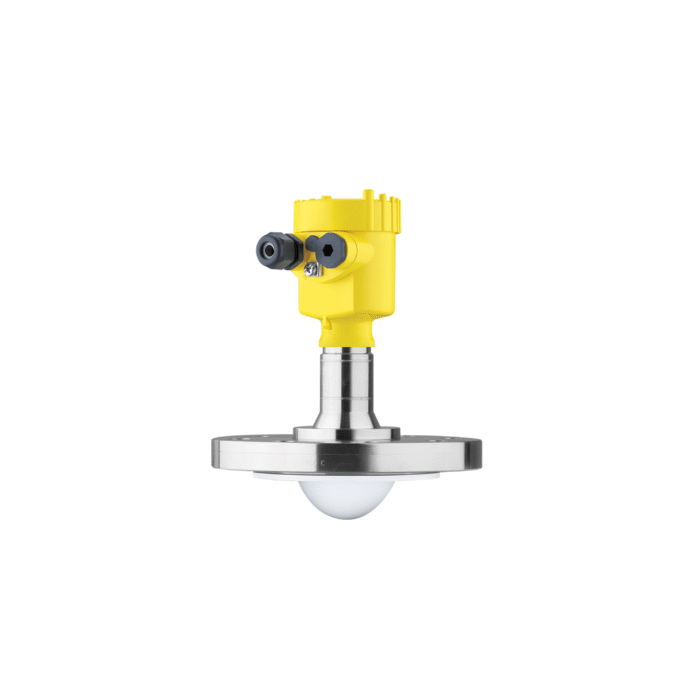

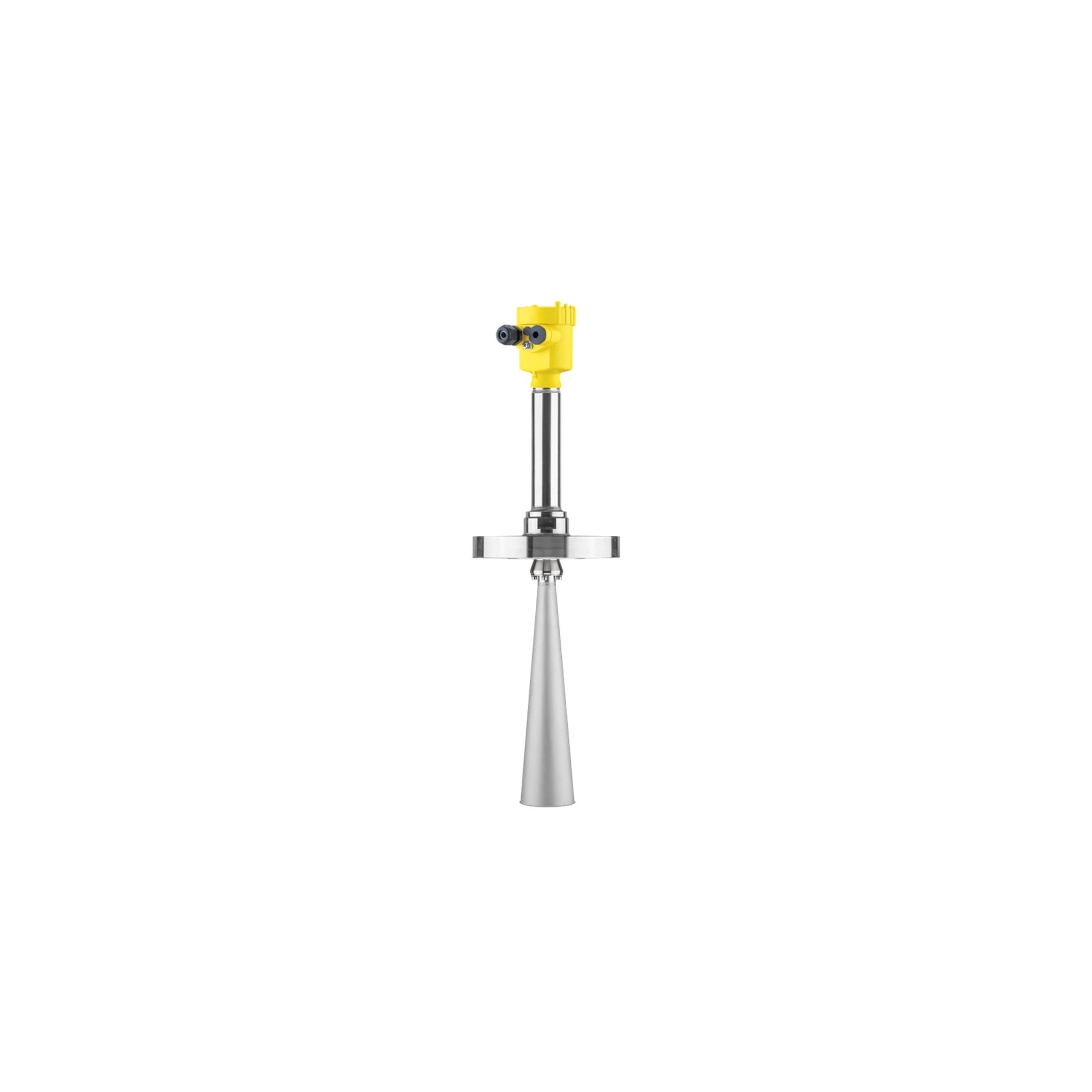

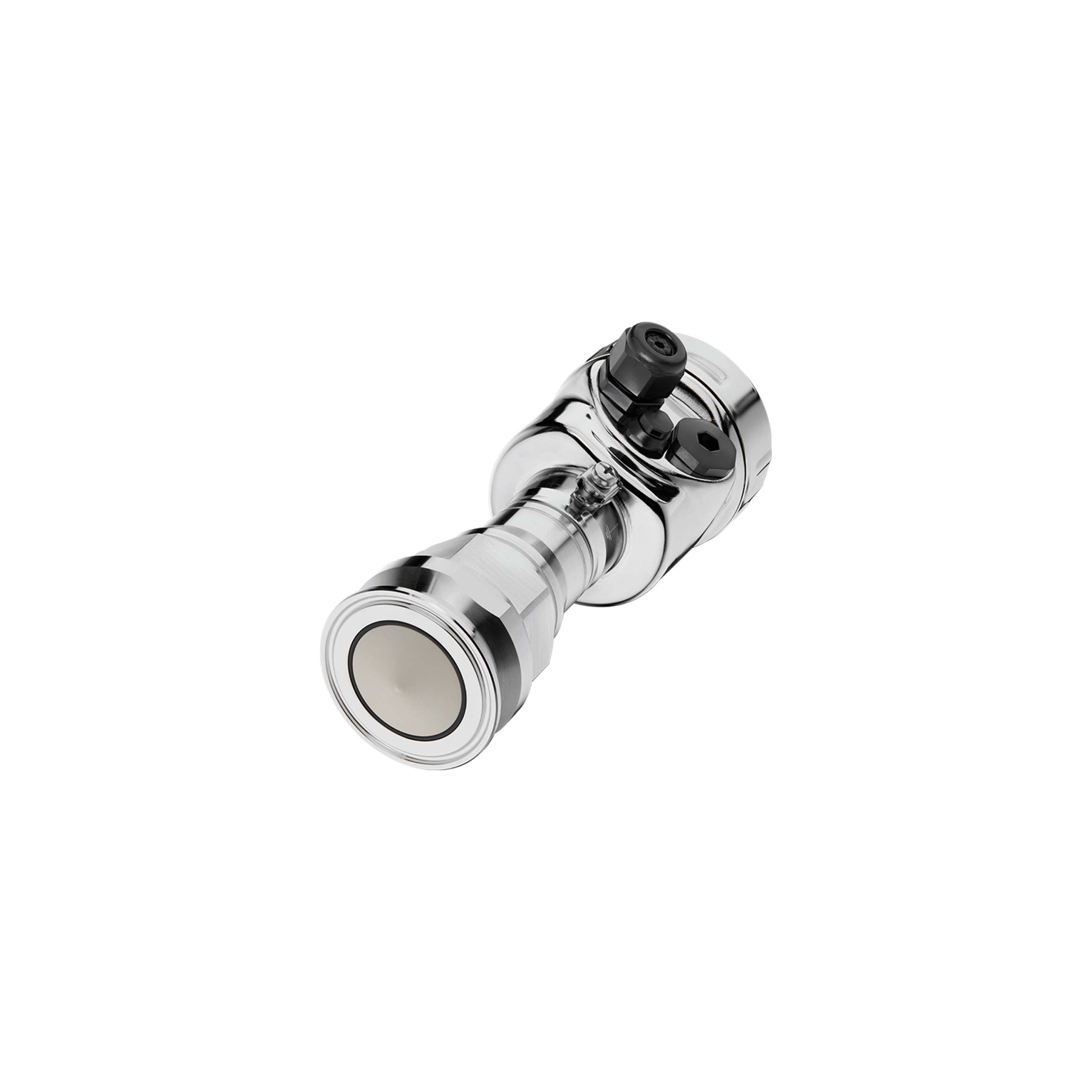

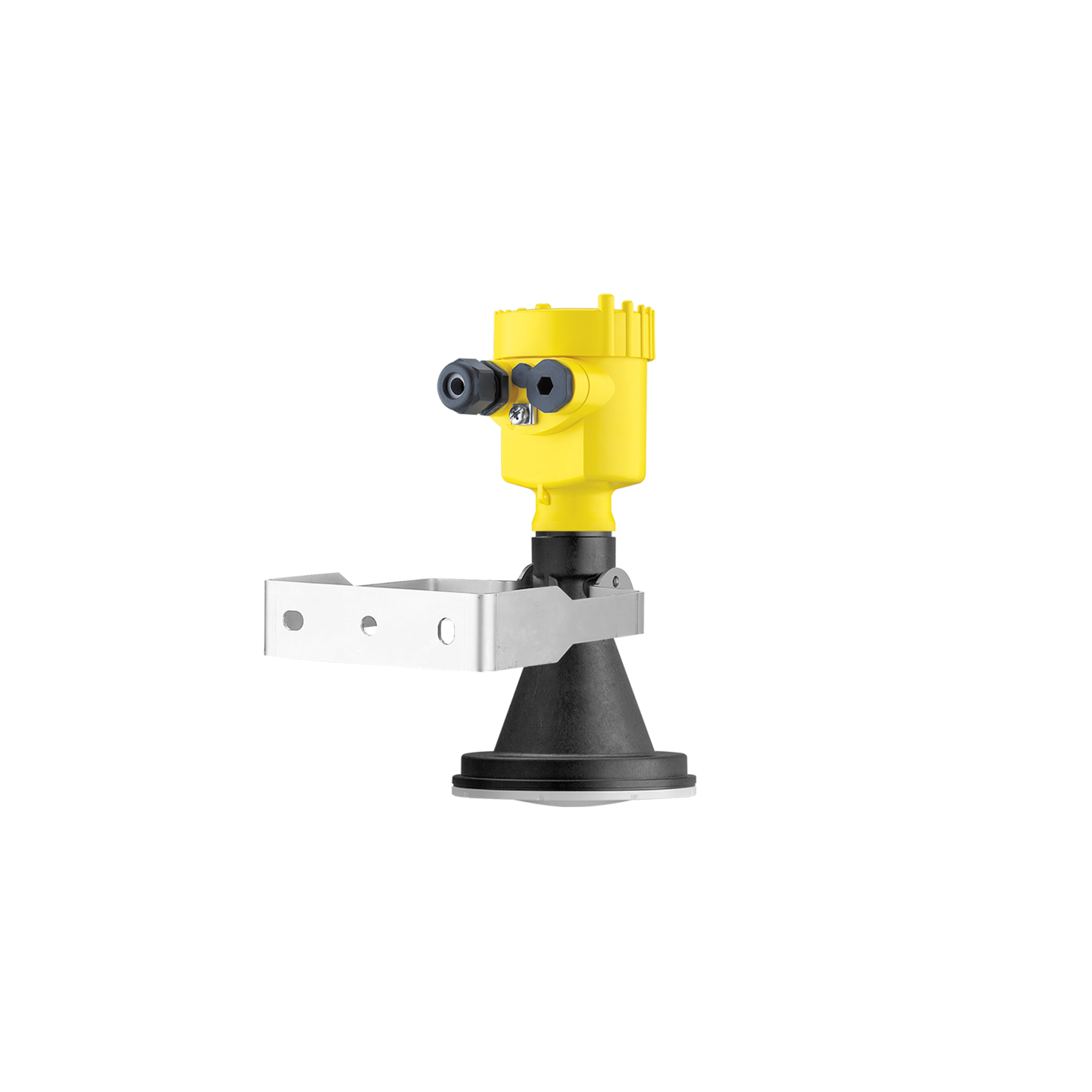

VEGAPULS 6X Level Transmitters
Features:
✅ Exact measuring results independent of process conditions
✅ Maintenance-free operation through non-contact measuring principle
✅ Application-oriented configuration enables a simple device selection
✅ Advanced self-monitoring and diagnostics for increased safety and process reliability
✅ Materials and designs for hygienic, corrosive, or hazardous environments
✅ Universal application — suitable for both liquid and solid media
Regardless of whether the medium to be monitored is liquid, solid, hot, cold, hazardous, or corrosive, the VEGAPULS 6X sensor is capable of handling any application.
| Brand | VEGA |
|---|
Continuous level monitoring of liquids and bulk solids using a radar sensor
The VEGAPULS 6X is an all-purpose radar measuring instrument that incorporates the greatest features of the VEGAPULS 60 series.
The VEGAPULS 6X is a universal radar level sensor that delivers precise, continuous level measurement of liquids and bulk solids. Utilizing 80 GHz radar technology, it ensures accurate performance in all industries and process conditions — whether in storage tanks, reactors, or silos. With a compact design, advanced self-diagnostics, and minimal configuration required, the VEGAPULS 6X sets a new benchmark in level measurement. Its all-in-one sensor design reduces complexity by eliminating the need to select different radar types for different applications.
A universal sensor, the VEGAPULS 6X measures liquid and bulk solid levels continuously in all process settings. VEGAPULS 6X provides a dependable and cost-effective solution for all level applications because of its application-oriented configuration and setup. It guarantees maintenance-free operation in all applications because of its flexible antenna systems.
Technical Data
VEGAPULS 6X Radar Level Sensor
🔹 VEGAPULS 6X
▾
Measuring Range Up to 120 m (393 ft) for bulk solids / liquids Process Temperature –196 °C to +200 °C (–321 °F to +392 °F) Process Pressure –1 to +160 bar (–14.5 to +2320 psi) Frequency Range 80 GHz (W-band radar) Beam Angle Narrow beam – 4° (standard lens antenna) Accuracy ±1 mm (±0.04 in) Output Signal 4 … 20 mA/HART, Modbus, Profibus PA, FF, IO-Link Materials (Wetted Parts) Stainless steel, PTFE, PEEK, PVDF Ingress Protection IP66/IP68 (Type 6P) Approvals ATEX, IECEx, FM, CSA, SIL2/3, EHEDG, FDA Connectivity Bluetooth, VEGA Tools App
Application
- Chemical processing: Reactors, tanks with aggressive media
- Oil & gas: Separators, storage tanks, offshore platforms
- Food & beverage: Hygienic tanks, silos, mixing vessels
- Water & wastewater: Open channel flow, sludge treatment
- Pharmaceutical: Clean-in-place (CIP) and sterile environments
- Power generation: Ash silos, cooling water tanks
- Mining and aggregates: Stone silos, hoppers, and crushers
