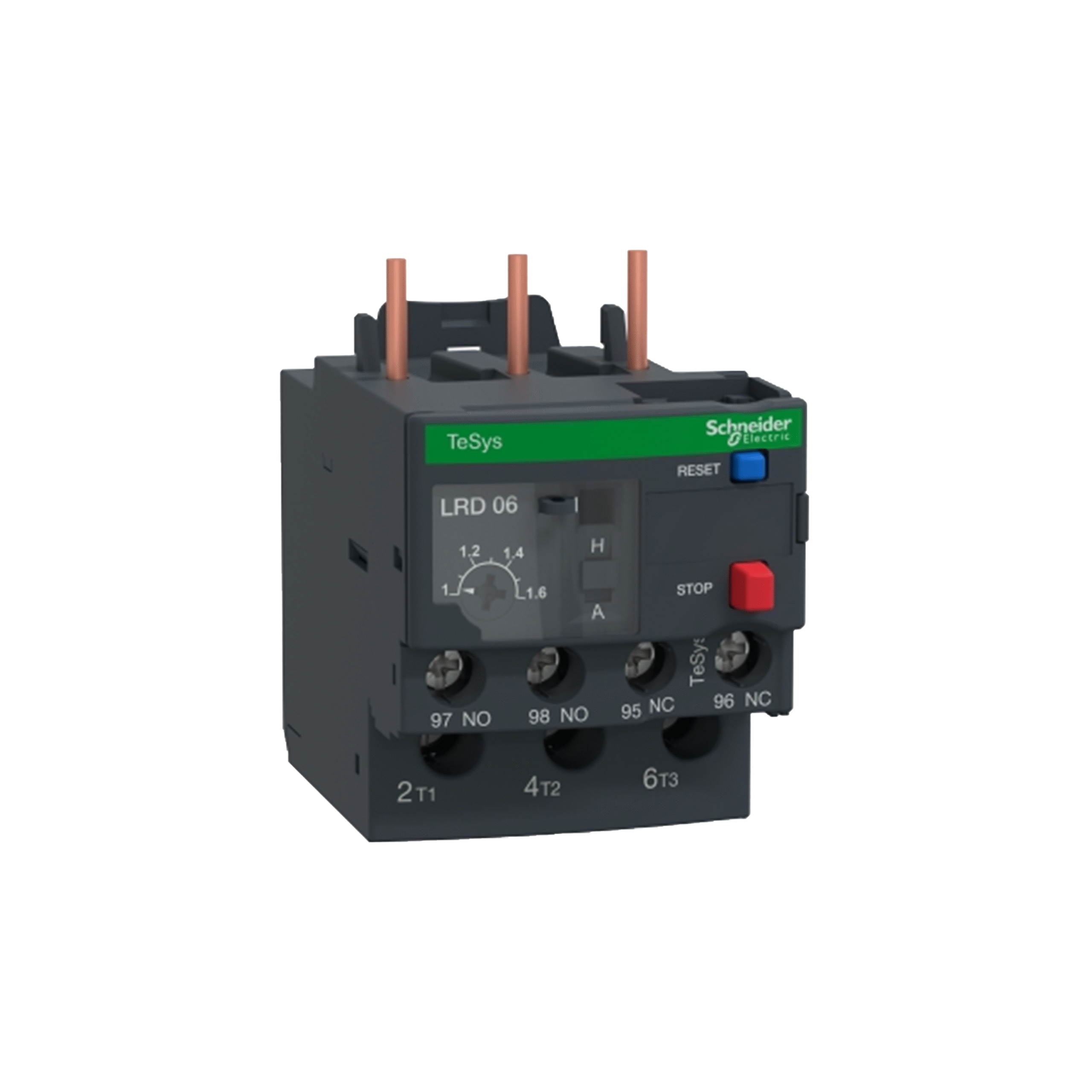

Schneider – TeSys Deca Thermal Overload Relays
Features:
✅ AC & DC Operation: Wide range of control voltages from 24V to 690V
✅ Reliable Motor Protection: Integrated with thermal or electronic overload relays.
✅ High Electrical & Mechanical Endurance
✅ Compact & Modular Design
✅ Wide Current Range
✅ Flexible Accessory Options
Industries use a variety of protection devices, such as thermal overload relays, to protect their workers and assets from irreparable loss and damage because the industrial sector is extremely susceptible to dangerous fire breakouts, short circuits, and explosions.
| Brand | Schneider |
|---|
TeSys Deca Thermal Overload Relays
The TeSys D series from Schneider Electric offers high-performance contactors and overload relays for motor control and protection applications. Designed to meet the latest industrial standards, the TeSys D range ensures reliable switching, long electrical life, and compact installation in control panels.
Engineered for both AC and DC motor starters, the TeSys D contactors support up to 150A (AC-3) and are ideal for frequent operation and integration into automated systems. Paired with thermal or electronic overload relays, the system provides full motor protection against overload, phase failure, and phase imbalance.
Industries use a variety of protection devices, such as thermal overload relays, to protect their workers and assets from irreparable loss and damage because the industrial sector is extremely susceptible to dangerous fire breakouts, short circuits, and explosions.
For electrical devices such as high-functioning motors, thermal relays provide dependable protection against overload or phase failure.
Technical Data
TeSys D – Contactor & Overload Relay
🔹 Schneider – TeSys D
▾
Rated Operational Current (AC-3) 6A to 150A Control Voltage Range 24V to 690V AC/DC Frequency 50/60 Hz Auxiliary Contacts 1 NO + 1 NC (standard) Mechanical Life Up to 10 million operations Electrical Life (AC-3) Up to 1 million operations Mounting Type DIN rail or screw mounting Protection Class IP20 Overload Relay Range 0.1A to 140A (Thermal & Electronic) Certifications IEC 60947-4-1, UL, CSA, CCC, CE Ambient Temperature -20°C to +60°C
Application
- Motor Control Centers (MCCs)
Start, stop, and protect motors in industrial environments. - Conveyor & Packaging Systems
Frequent start-stop cycles with overload safety. - HVAC Systems
Fan, compressor, and pump control. - Infrastructure & Utilities
Water pumps, air compressors, lighting circuits. - OEM Panel Builders
Pre-wired motor starters and custom-built control panels.
Downloads
Technical Datasheets: Schneider – TeSys Deca Thermal Overload Relays
Supply & Shipping Details
Related products

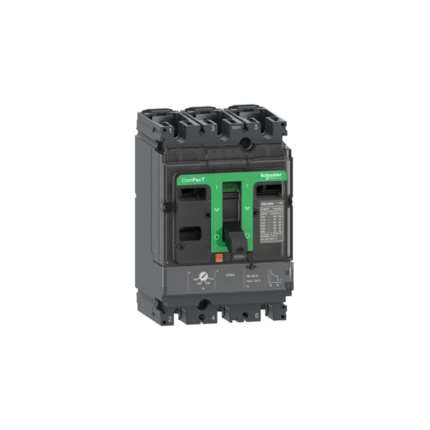

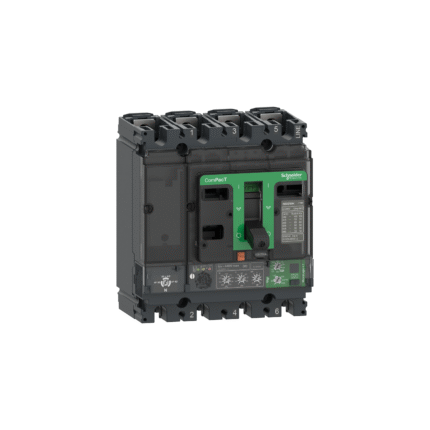

Schneider Electric – ComPacT NSX
Features:
✅ High Breaking Capacity up to 150kA at 415V AC
✅ Integrated Energy Metering (Modbus/SmartLink)
✅ Compact and Space-saving Design
✅ Easy Installation with Plug-and-Play Accessories
✅ Remote Monitoring and Control Support
✅ EcoStruxure Ready for Smart Integration
With its modular design, wide current range (16A to 630A), and advanced Micrologic trip units, ComPacT NSX ensures precise protection against overloads, short circuits, and other electrical faults. Its built-in energy metering, communication-ready features, and EcoStruxure compatibility make it an ideal solution for modern, connected electrical infrastructures.

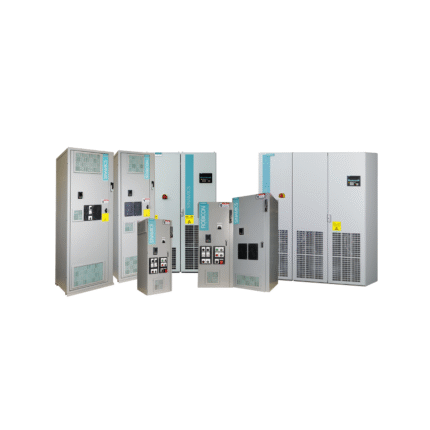

Siemens – SIMOTICS Panel Enclosures
