Siemens

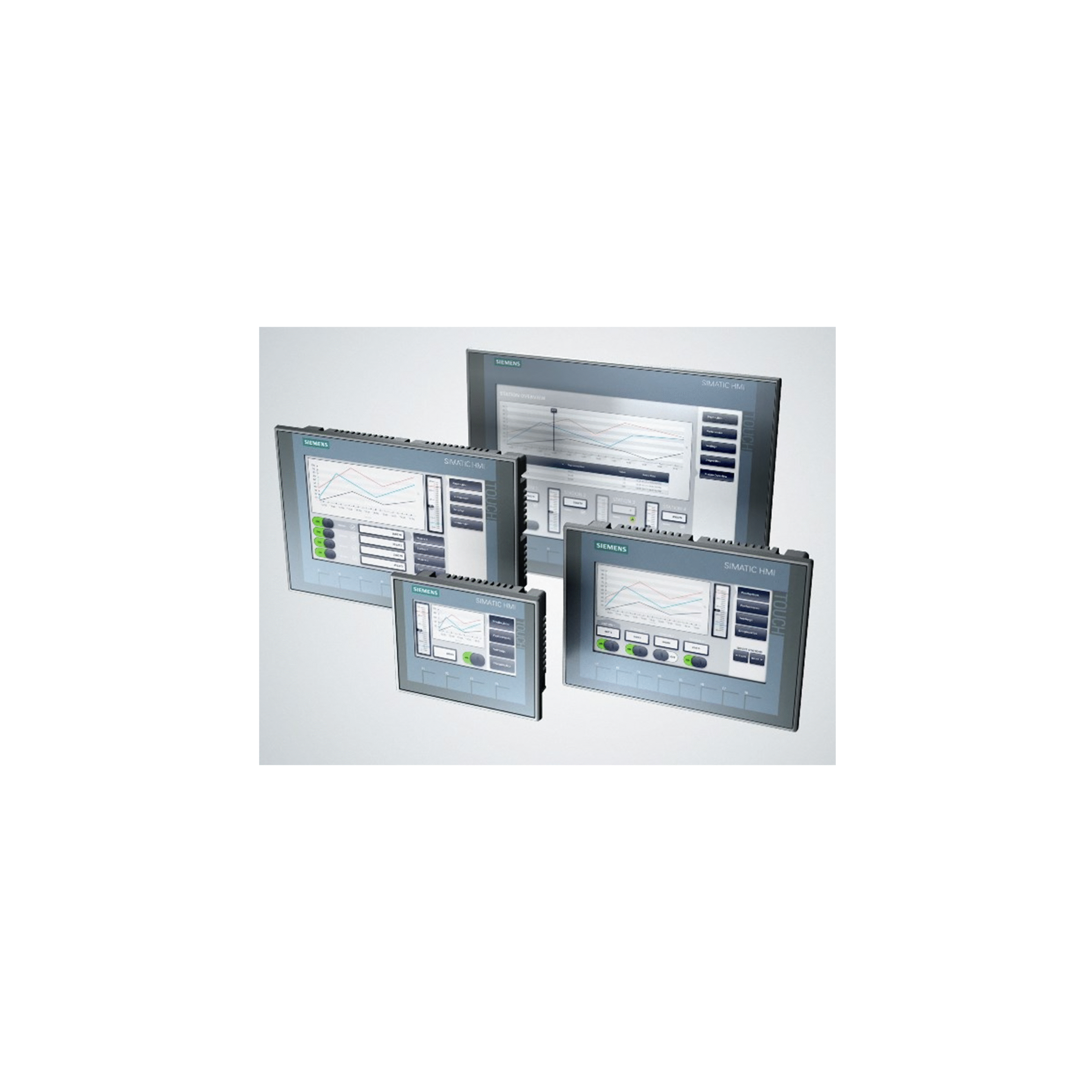

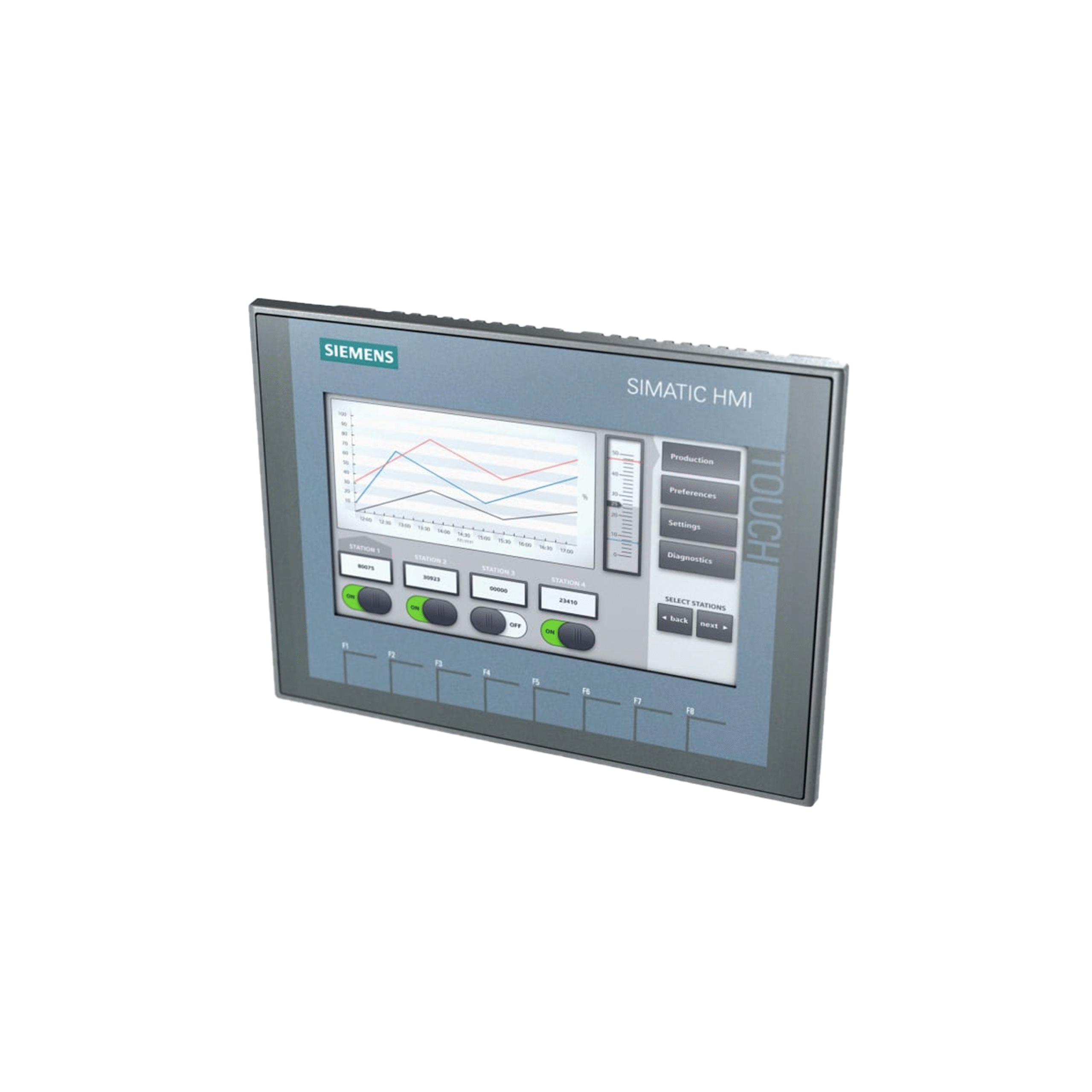

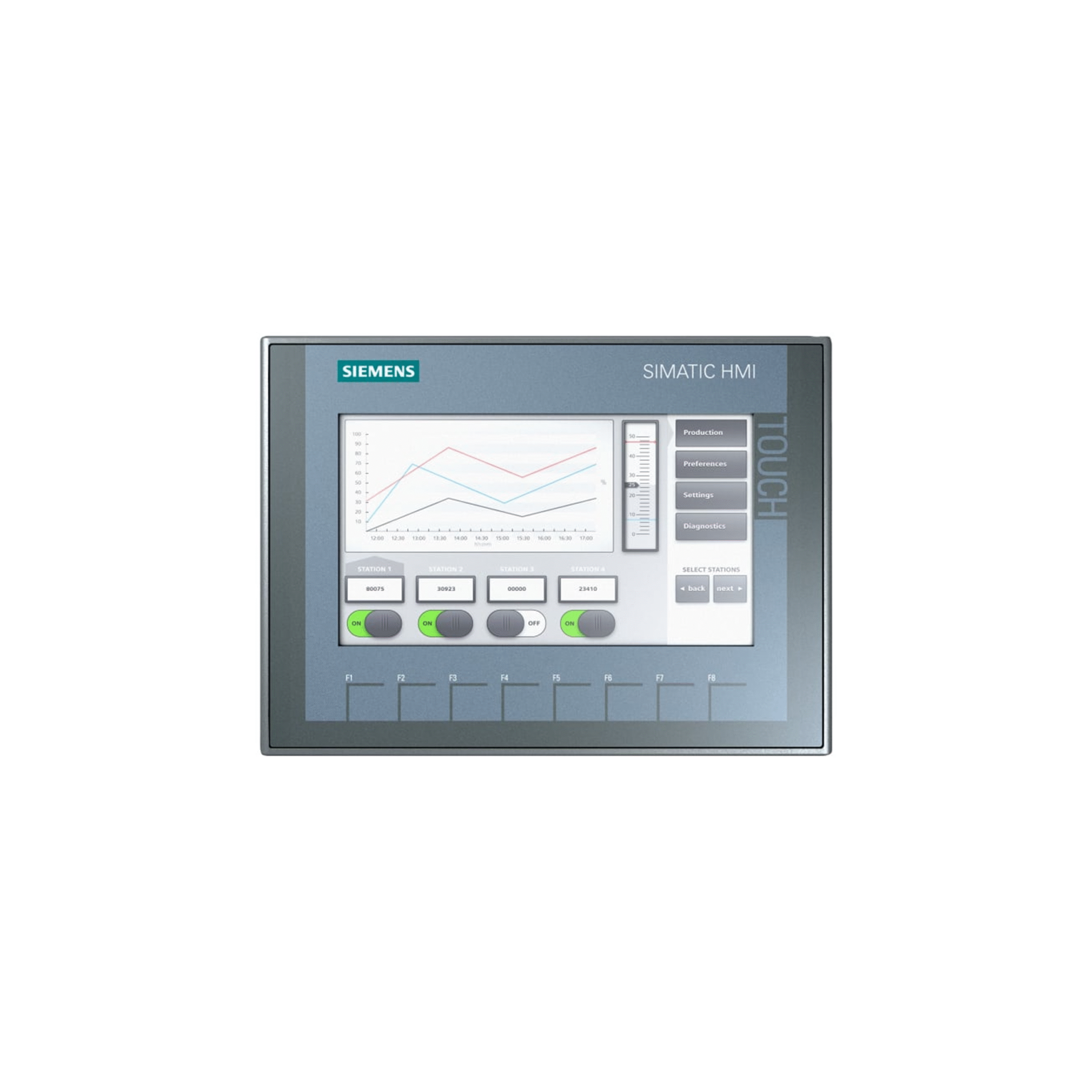

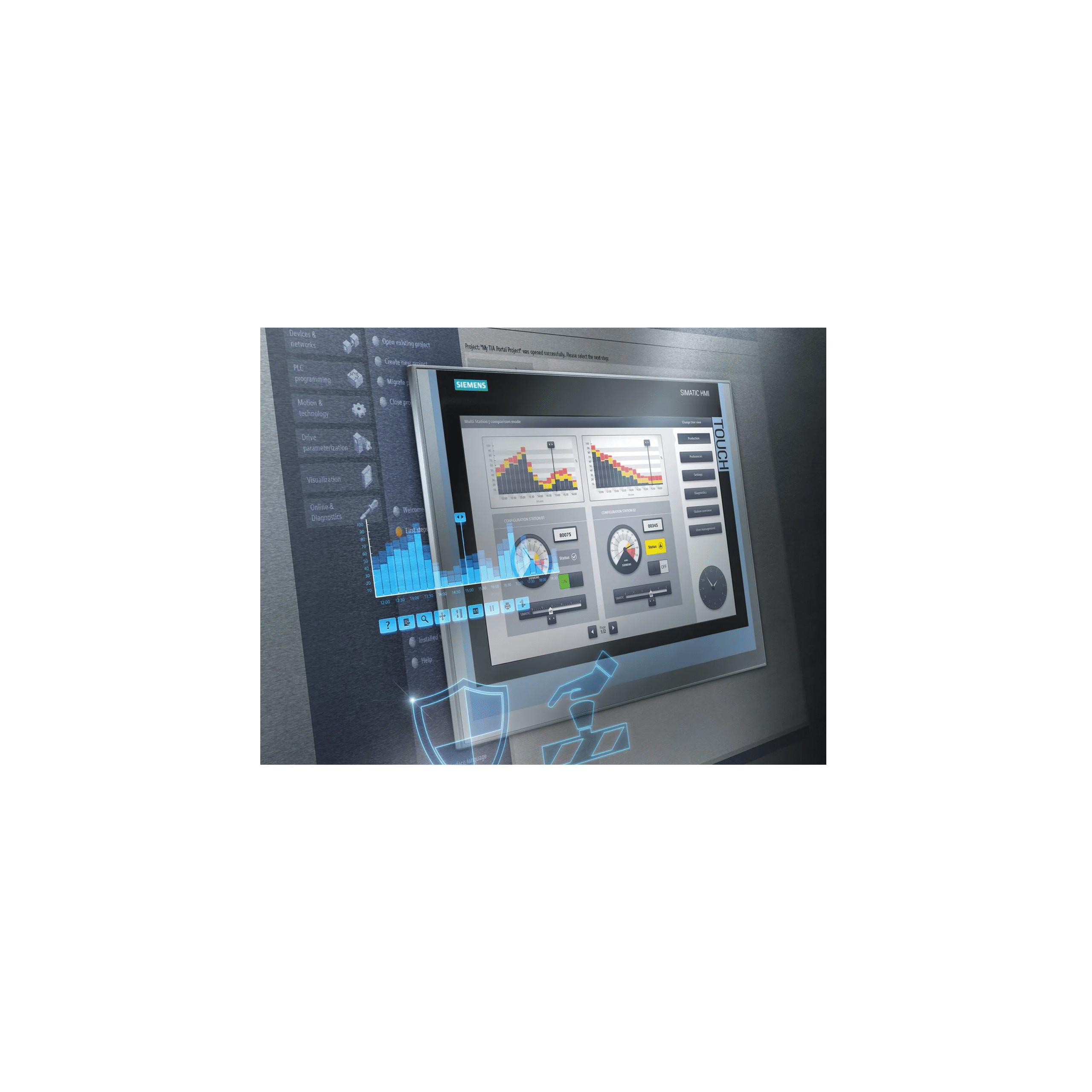

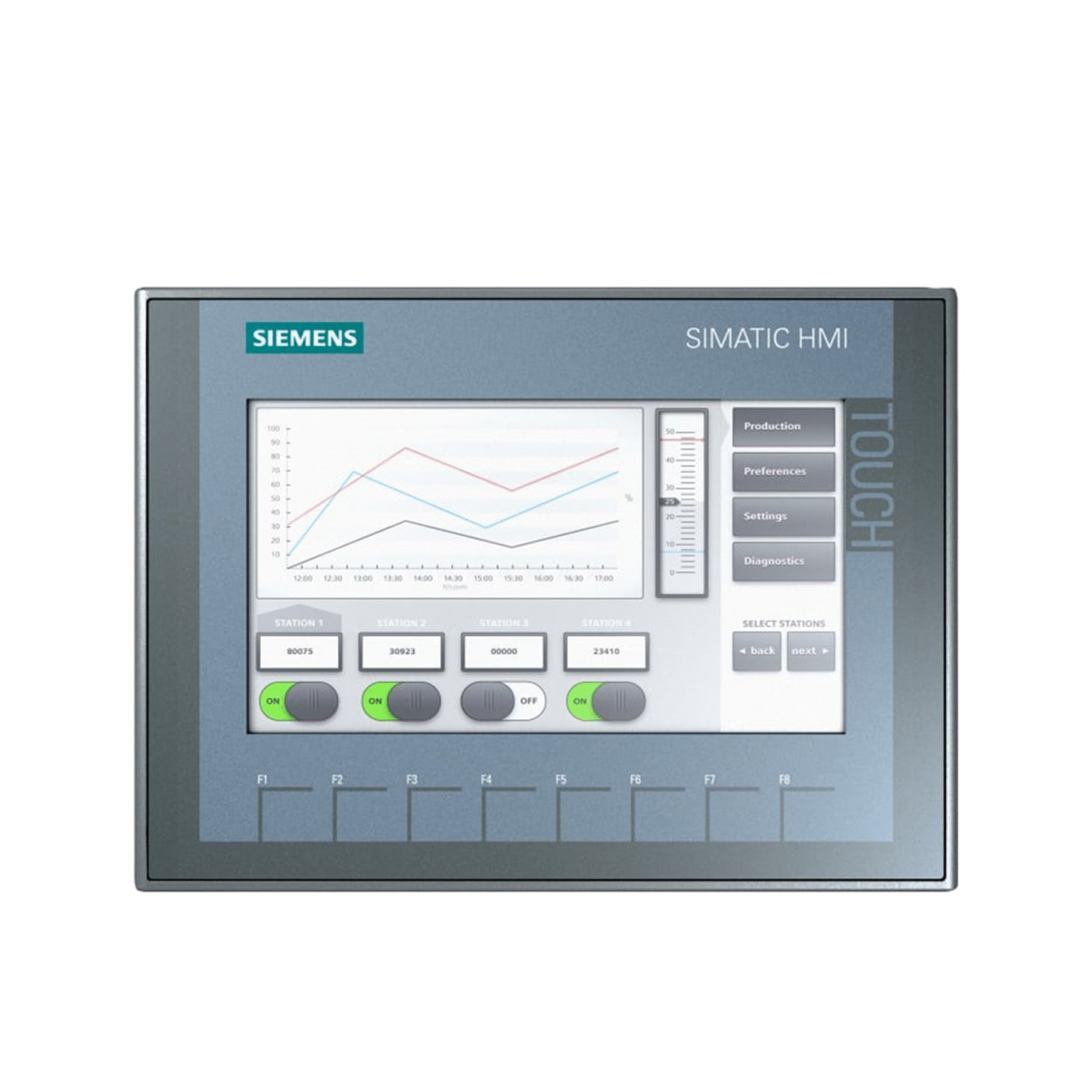

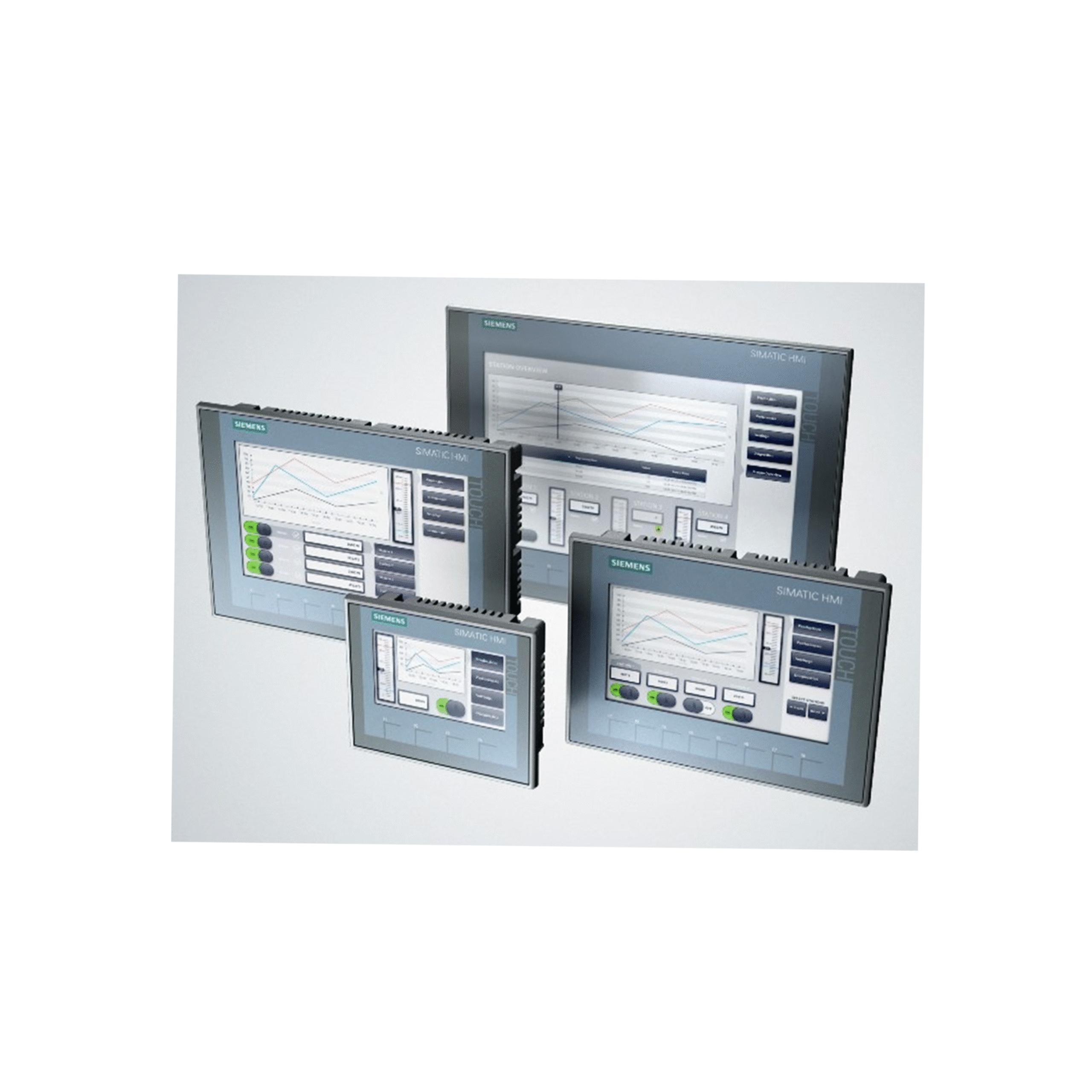

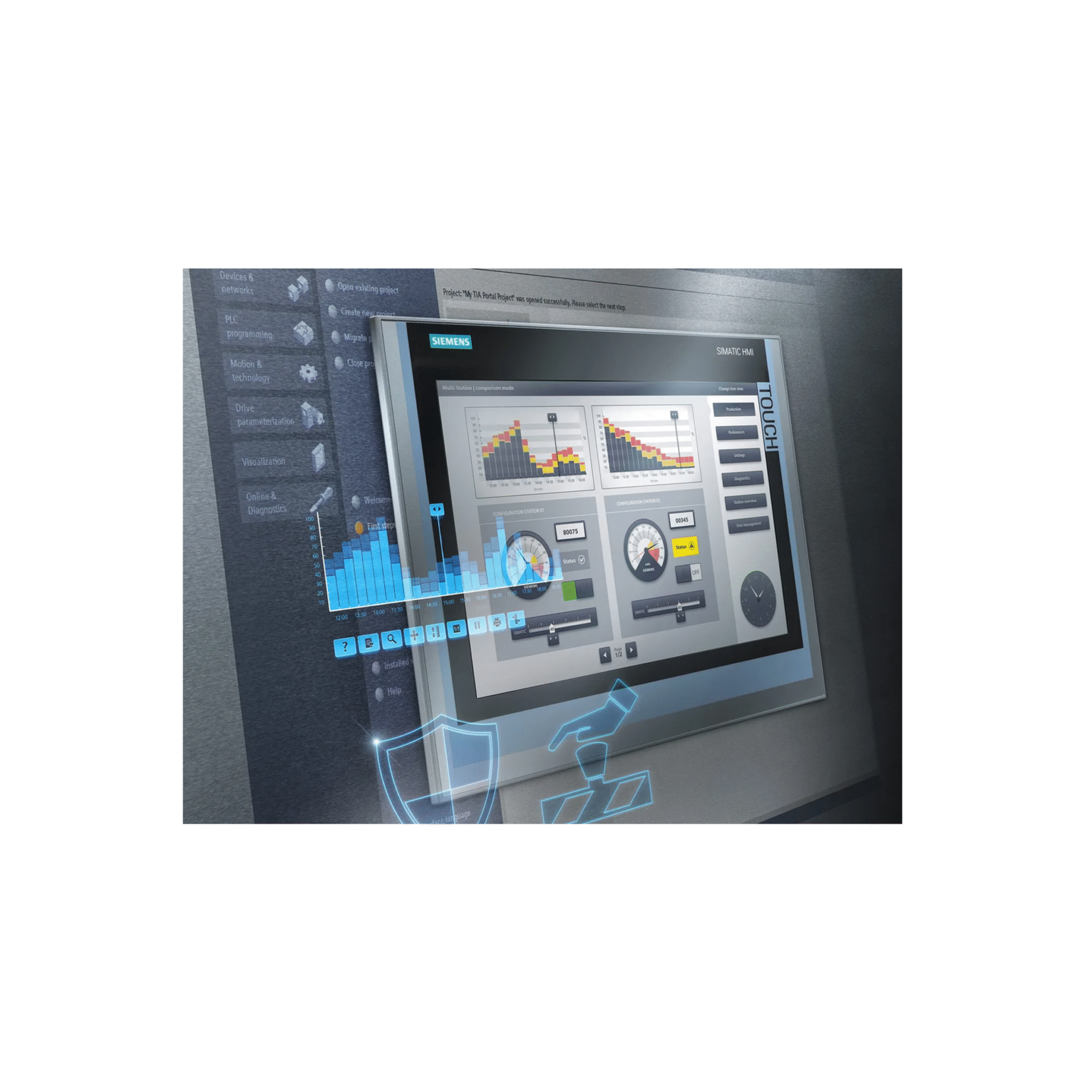

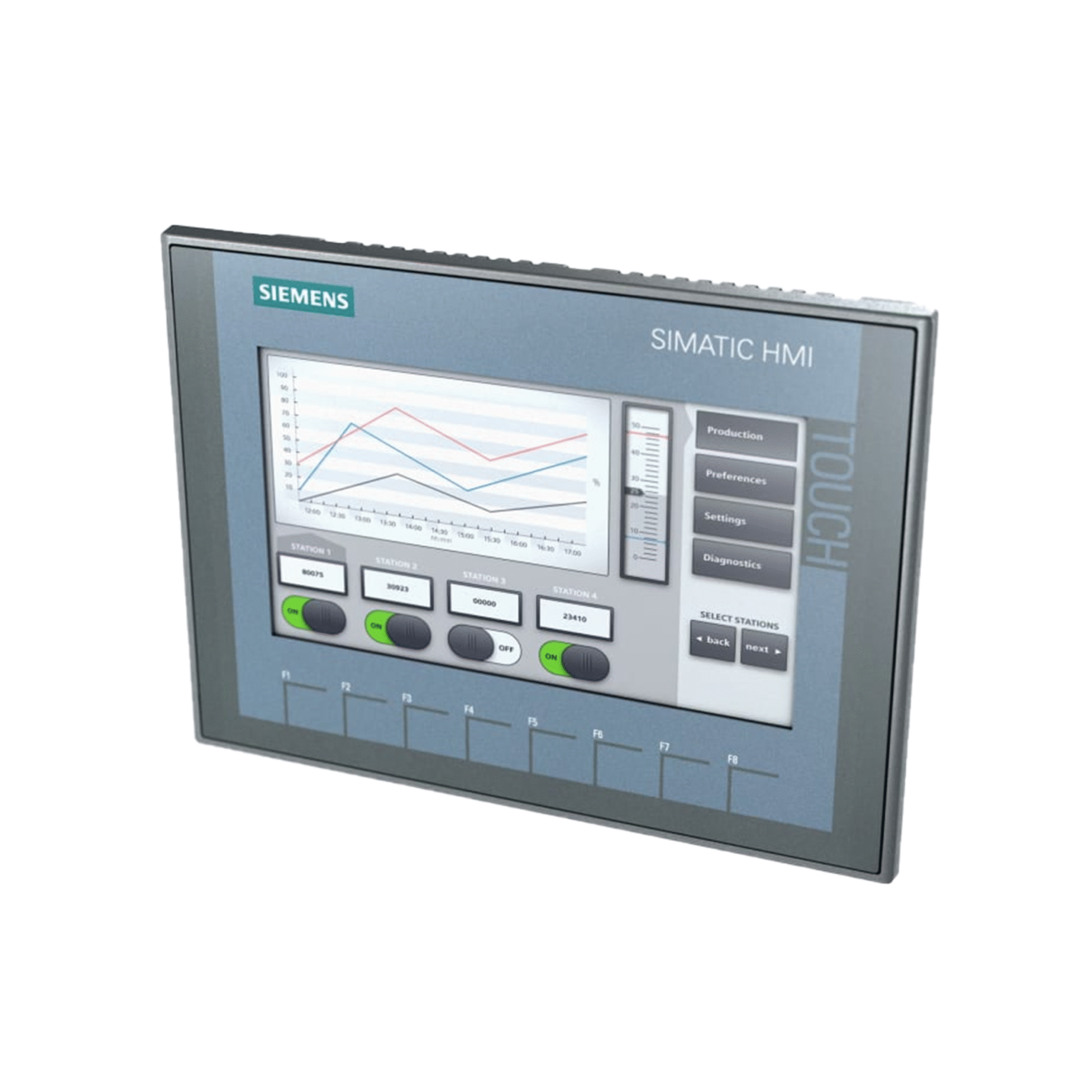

Siemens KTP & Comfort Panels

Features:

✅ Operation: Combined touch and tactile keys
✅ Communication: PROFINET/PROFIBUS, USB interface
✅ Memory: Integrated Flash memory for project storage
✅ Durability: IP65 front protection for industrial use
✅ High Resolution: TFT display with 16 million colors
✅ Multi-language Support: Up to 32 languages
✅ Web Server Support: Remote access via browser

Enhance your automation experience with Siemens HMI Panels, designed for intuitive operation and seamless system integration.



Compare
Add to wishlist
SKU: N/A Categories: , Brand:
Description

Siemens HMI KTP and Comfort Panels are advanced operator interfaces designed to offer high-performance visualization, control, and monitoring capabilities in industrial environments. Engineered to meet the demands of modern automation systems, these panels support efficient, user-friendly interaction between machines and operators.

The KTP Panels (Key/Touch Panels) combine tactile key functions with intuitive touchscreens, making them suitable for basic to mid-level automation tasks. On the other hand, Comfort Panels are built for complex operations, offering high-resolution displays, superior communication capabilities, and integrated software functions to streamline industrial processes.

Smart Operator Interfaces for Efficient Machine Visualization

Siemens KTP (Key/Touch Panels) and Comfort Panels are high-performance Human-Machine Interfaces (HMIs) designed to provide intuitive, reliable, and flexible operator control in a wide range of industrial automation applications. As part of the SIMATIC HMI portfolio, these panels offer powerful visualization, integrated communication, and modern design tailored for small machines to complex systems.

Technical Data

Technical Data

Siemens KTP / Comfort Panels

🔹 Siemens KTP Panels (HMI) ▾

Display TypeTFT, 64k colors
Display Sizes3.5", 4", 7", 9"
ResolutionQVGA / WQVGA
Touch TypeAnalog Resistive
Key OperationYes (Tactile membrane keys)
Backlight LifeUp to 50,000 hours
ProcessorARM-based processor
MemoryIntegrated Flash memory for project storage
InterfacesPROFINET, Ethernet, USB (Host/Device)
Communication ProtocolsPROFINET, MODBUS TCP/IP, S7 Communication
Power Supply24 V DC
User ManagementPassword protection with multiple access levels
MountingPanel Mounting (Flush)
Protection Class (Front)IP65
Operating Temperature0°C to +50°C
CertificationsCE, UL, cULus
Software SupportTIA Portal (WinCC Basic/Comfort)

🔹 Siemens Comfort Panels (HMI) ▾

Display TypeTFT, up to 16 million colors
Display Sizes4", 7", 9", 12", 15", 19", 22" (widescreen formats)
ResolutionWVGA, WXGA, SXGA, Full HD (depending on size)
Touch TypeAnalog resistive / Multi-touch (select models)
Key OperationNo (fully touch-based interface)
Backlight LifeUp to 80,000 hours
ProcessorHigh-performance ARM or Intel processors (model dependent)
MemoryInternal memory with support for SD card and USB storage
InterfacesPROFINET, PROFIBUS, Ethernet, Modbus TCP/IP, USB (Host & Device), SD Card Slot
Communication ProtocolsPROFINET, PROFIBUS DP, OPC UA, TCP/IP, Modbus
Power Supply24 V DC
Data LoggingIntegrated alarm, event, and recipe handling
Web ServerBuilt-in web server for remote access & diagnostics
User ManagementMulti-level access control with password protection
Multi-language SupportUp to 32 languages, Unicode support
MountingPanel Mounting (Flush)
Protection Class (Front)IP65
Operating Temperature0°C to +50°C
CertificationsCE, UL, cULus
Software CompatibilityTIA Portal (WinCC Comfort/Advanced)

Application

Application

  • Factory Automation
  • Process Industries
  • Material Handling Systems
  • Food & Beverage Processing
  • Pharmaceutical Manufacturing
  • Packaging Machinery
  • Energy and Utility Plants
  • Water & Wastewater Management
Downloads

Downloads

Technical Datasheets: Siemens KTP & Comfort Panels
