Rockwell Automation

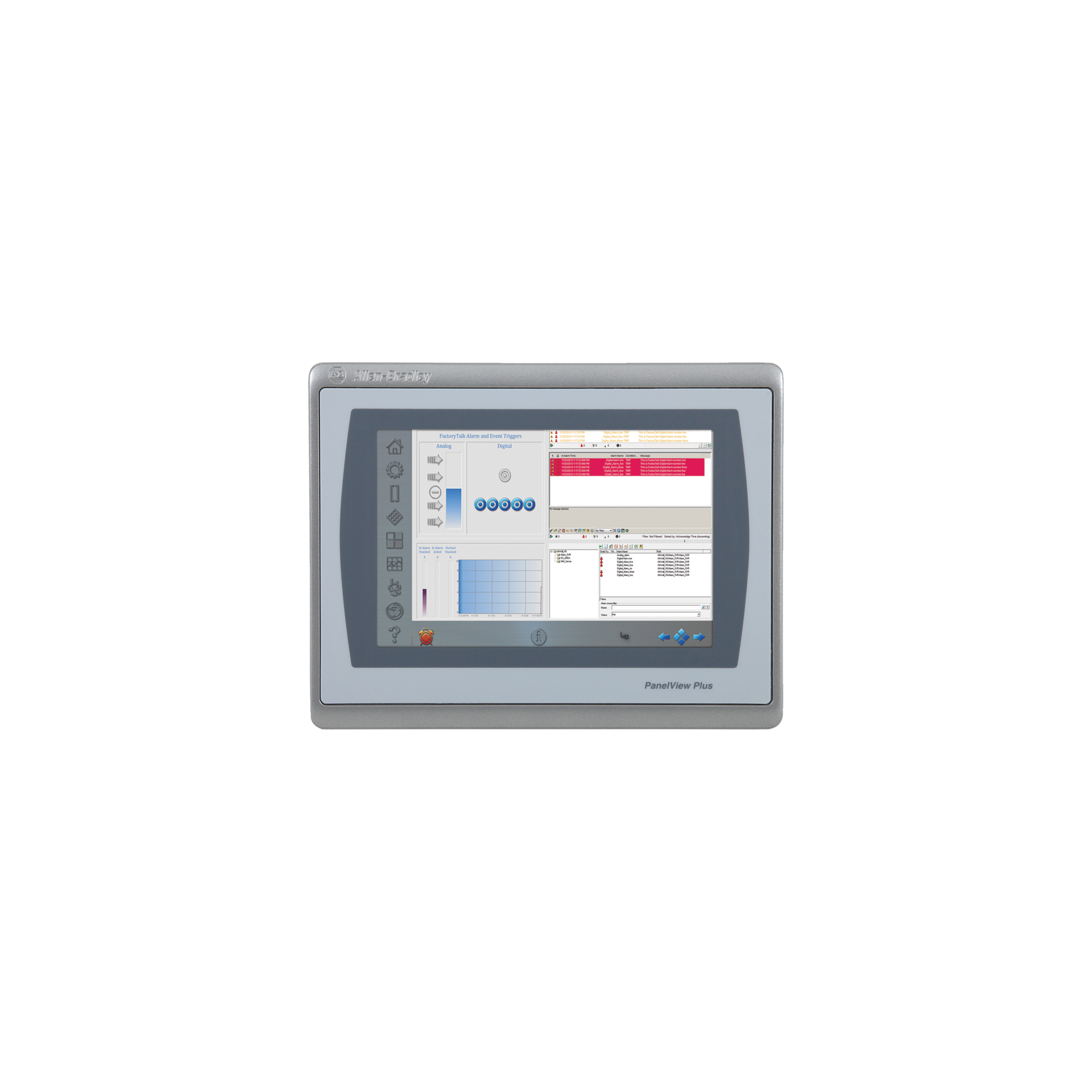

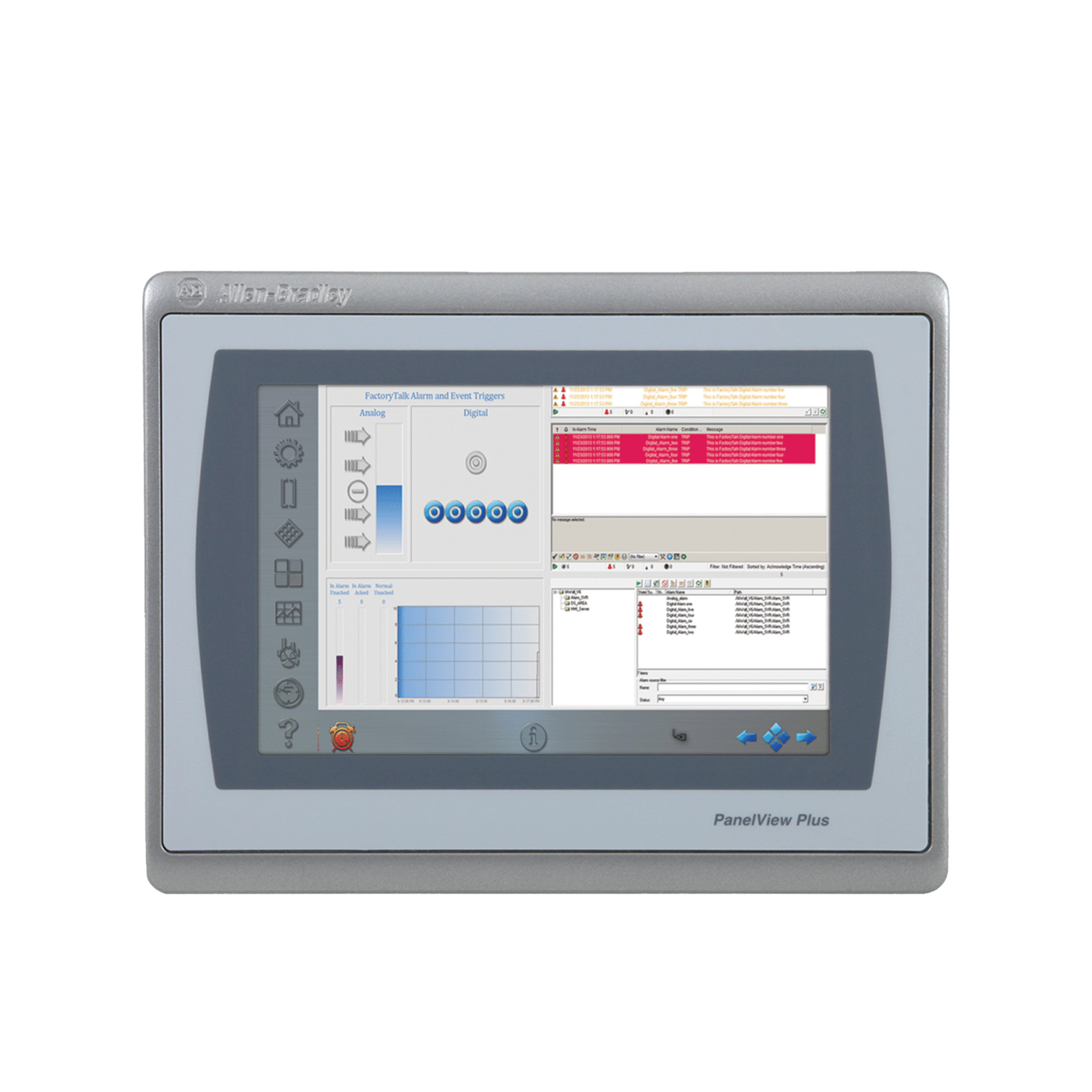

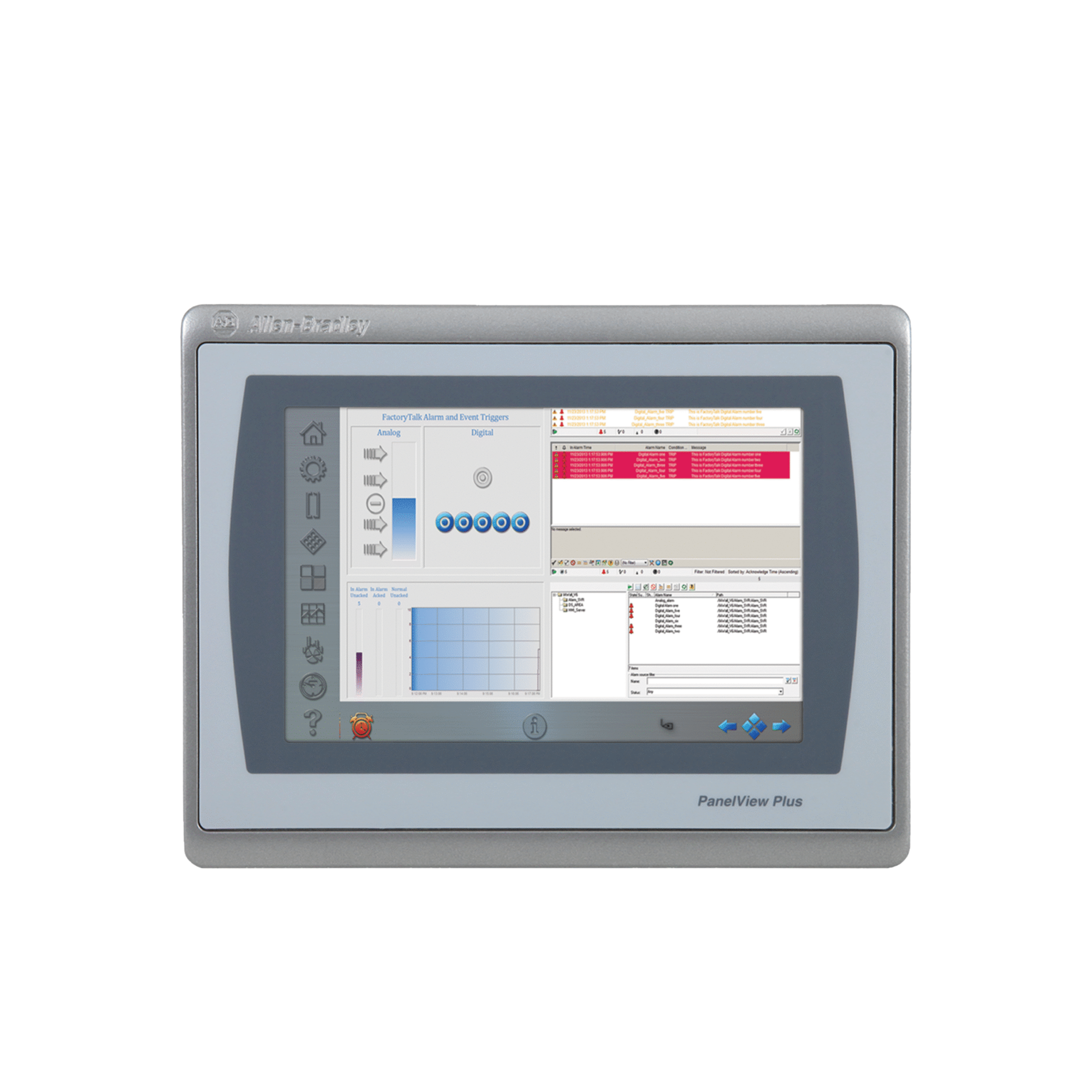

Allen-Bradley PanelView Plus HMIs

Features:

✅ Wide range of display sizes from 4″ to 19″
✅ Resistive or capacitive touchscreen options
✅ High-performance CPU and memory for faster processing
✅ Integrated FactoryTalk® View ME support
✅ Remote access via VNC connectivity
✅ Aluminum or stainless steel bezels
✅ IP65/NEMA 4X front panel protection rating

The PanelView Plus series enables users to interact efficiently with their machines and processes, ensuring improved productivity, faster troubleshooting, and robust system performance across diverse industries.



Compare
Add to wishlist
SKU: N/A Categories: , Brand:
Description

The Allen-Bradley PanelView Plus family of Human Machine Interfaces (HMI) from Rockwell Automation delivers robust, high-performance operator interface solutions designed for industrial environments. Built to support complex automation systems, the PanelView Plus series enables real-time data visualization, intuitive interaction, and enhanced diagnostics to optimize operations across manufacturing, energy, and process industries.

These HMIs seamlessly integrate with Logix-based controllers (ControlLogix®, CompactLogix®) and support multiple communication protocols including EtherNet/IP™, DH+, and ControlNet™, ensuring broad connectivity and system flexibility.

Smart Visualization for Connected Industrial Control

The Allen-Bradley PanelView Plus HMI series, from Rockwell Automation, offers advanced, reliable, and intuitive human-machine interface (HMI) solutions for real-time monitoring and control. Designed to work seamlessly with Rockwell’s Logix-based controllers and FactoryTalk® View software, these HMIs enhance operator efficiency, reduce downtime, and enable smarter decision-making on the plant floor.

Key Features:

  • High-Resolution Touch Displays
    Available in sizes from 4″ to 19″, with wide-screen and standard aspect ratios for clear, flexible visualization.

  • FactoryTalk® View ME Integration
    Runs pre-developed applications on FactoryTalk View Machine Edition, enabling quick deployment and consistent user experience.

  • Versatile Communication Support
    Built-in Ethernet, USB, and serial ports, with support for ControlNet, DeviceNet, DH-485, and more.

  • Rugged Industrial Design
    IP65-rated front panel and solid-state memory ensure durability in harsh industrial environments.

  • Expandable & Scalable
    Models like PanelView Plus 6 and 7 support remote access, expanded application sizes, and modern connectivity with EtherNet/IP™.

  • Integrated Diagnostics & Alarming
    Real-time display of alarms, system health, and status monitoring with user-configurable alerts.

Technical Data

Technical Data

Allen-Bradley PanelView Plus HMI

🔹 PanelView Plus ▾

Display Sizes4", 6", 7", 9", 10", 12", 15", 19"
ResolutionUp to 1280x1024 (SXGA)
Touchscreen TypeAnalog resistive / Capacitive
ProcessorARM / x86 (varies by model)
RAM / Flash Memory256MB to 1GB RAM / Up to 1GB flash
Operating SystemMicrosoft Windows CE 6.0 / Windows Embedded
Software SupportFactoryTalk® View ME Runtime
Connectivity1–2 Ethernet Ports, RS232/485, USB Host/Device
MountingPanel Mount (NEMA 4X/IP65 front panel)
CertificationsCE, UL, cUL, ATEX, RoHS, Marine (select models)

Application

Application

  • Manufacturing and Machine Control
  • Food and Beverage Automation
  • Oil & Gas Process Monitoring
  • Packaging Equipment Interface
  • Water/Wastewater Treatment Plants
  • Pharmaceutical and Cleanroom Systems
