Schneider

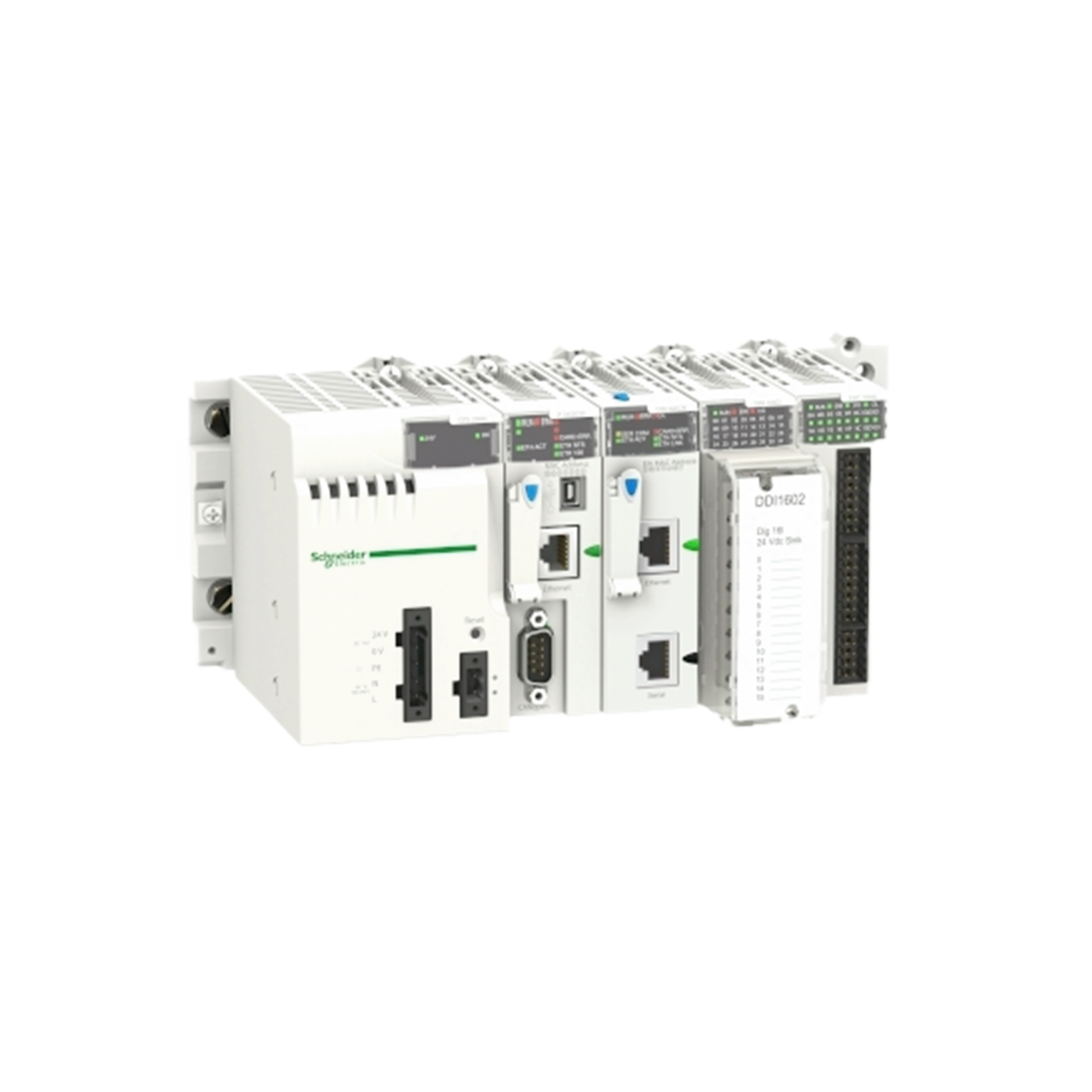

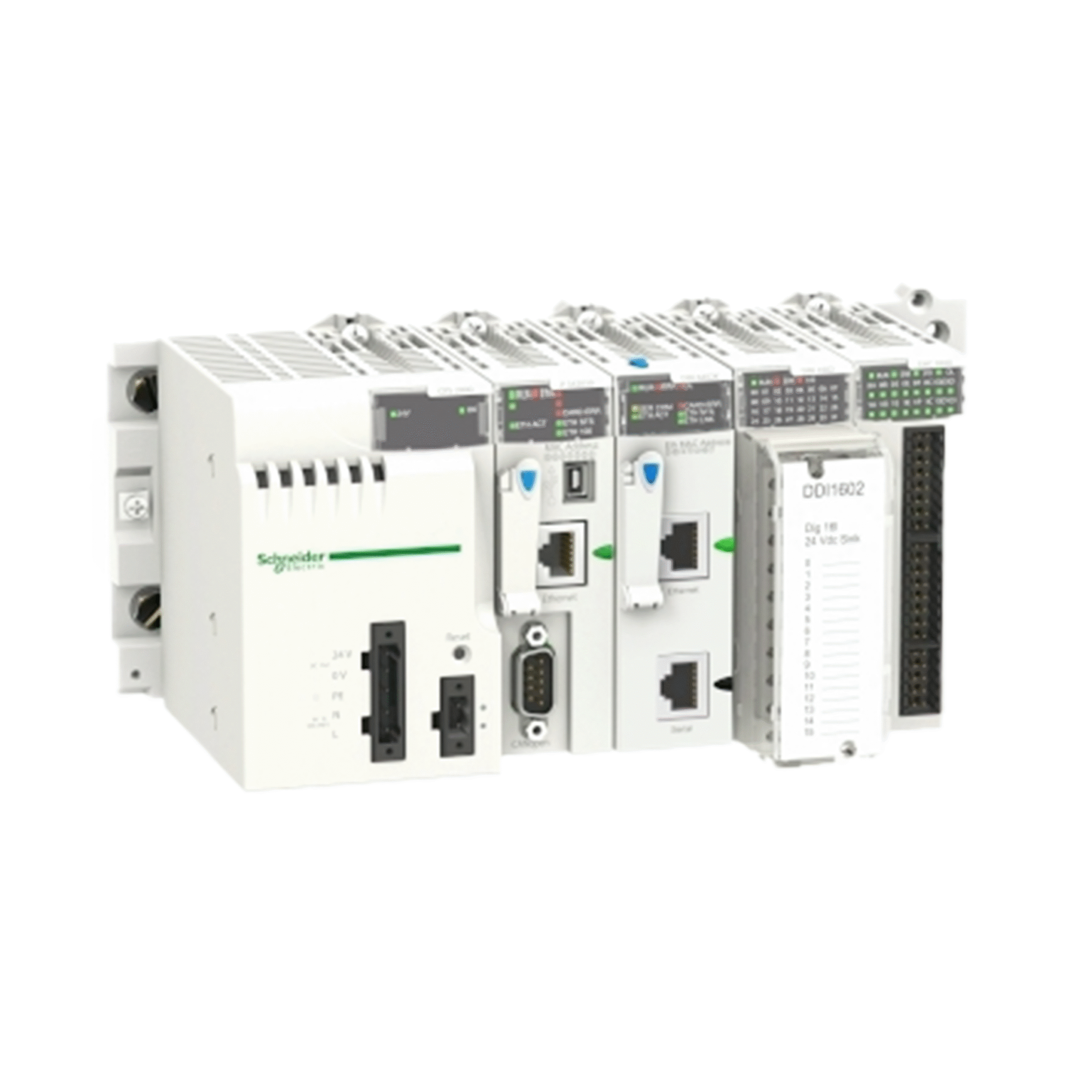

Schneider Modicon M340

Features:

✅ Built-in field bus and/or Ethernet communication design
✅ SD-card for application recovery or firmware upgrade
✅ Easily design your process or application with scalable topology
✅ Modicon M340 design complies with automation standards
✅ Shares common X80 modules with Modicon family products

The Modicon M340 is a mid-range Programmable Automation Controller (PAC) designed for industrial process, infrastructure, and discrete control applications. It combines compact modularity with powerful performance and integrated fieldbus/Ethernet connectivity for plug-and-play deployment and fast commissioning



Compare
Add to wishlist
SKU: M340 Categories: , Brand:
Description

Schneider Modicon M340
Mid-range PAC industrial process and infrastructure control

Controllers (PACs) are designed to meet the demands of a variety of demanding automation applications as well as the needs of the process sector.
Although Modicon M340 can be used alone, it also works well with Modicon M580 to improve the efficiency, caliber, and profitability of your industrial processes, facilities, or machinery. The Modicon M340 is programmed and configured using EcoStruxure Control Expert (previously Unity Pro) software and the Modicon X80 I/O modules platform.

Benefits of Modicon M340

Compactness

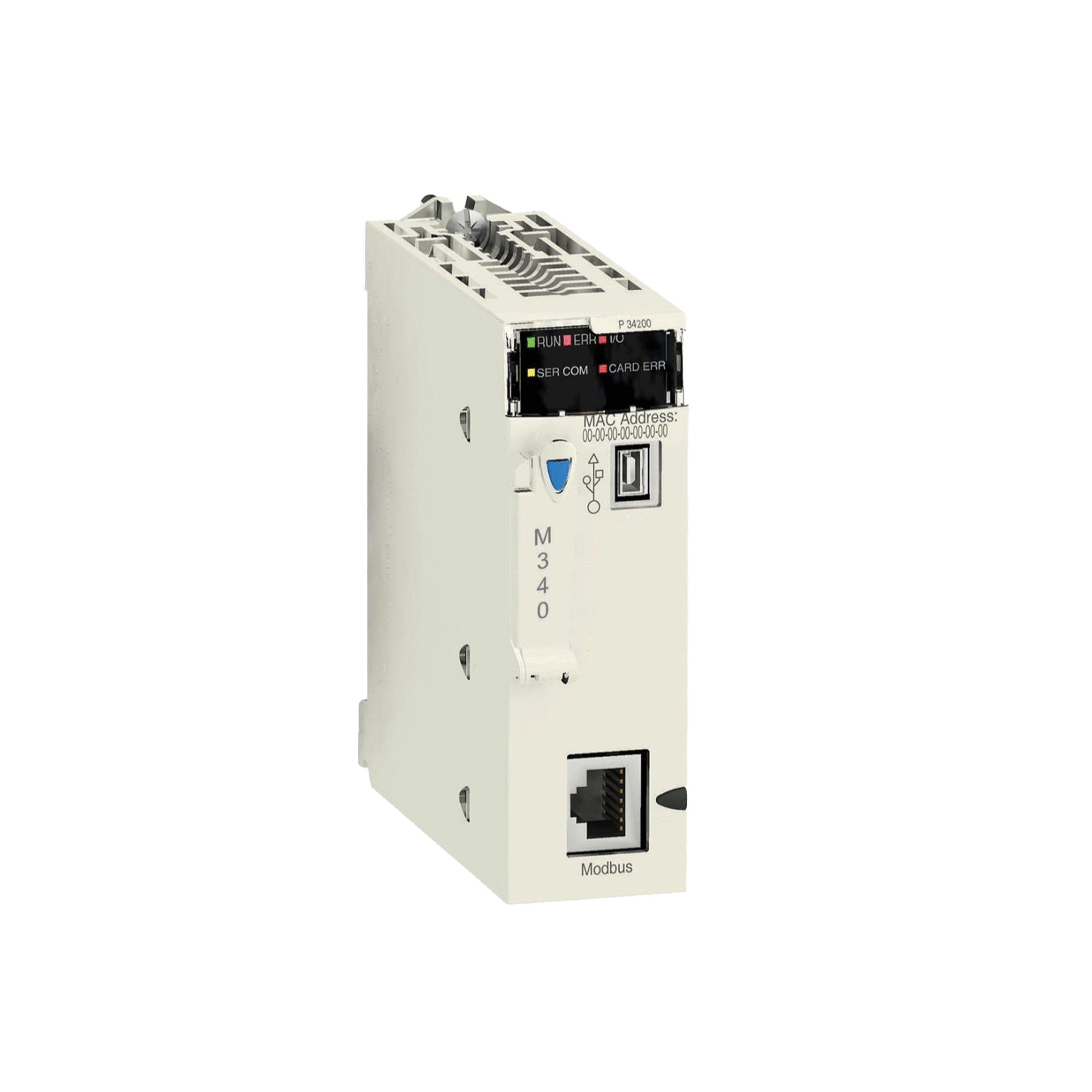

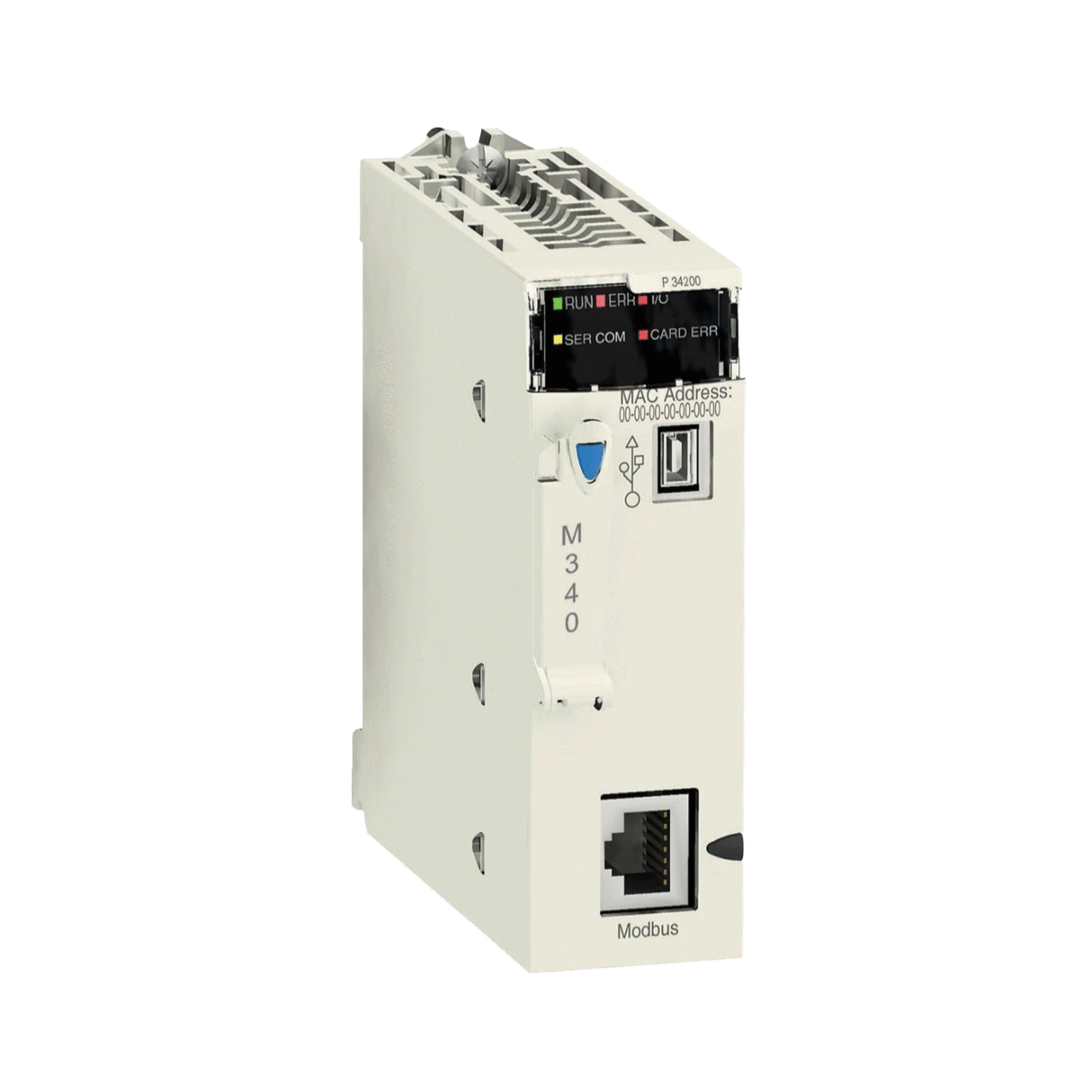

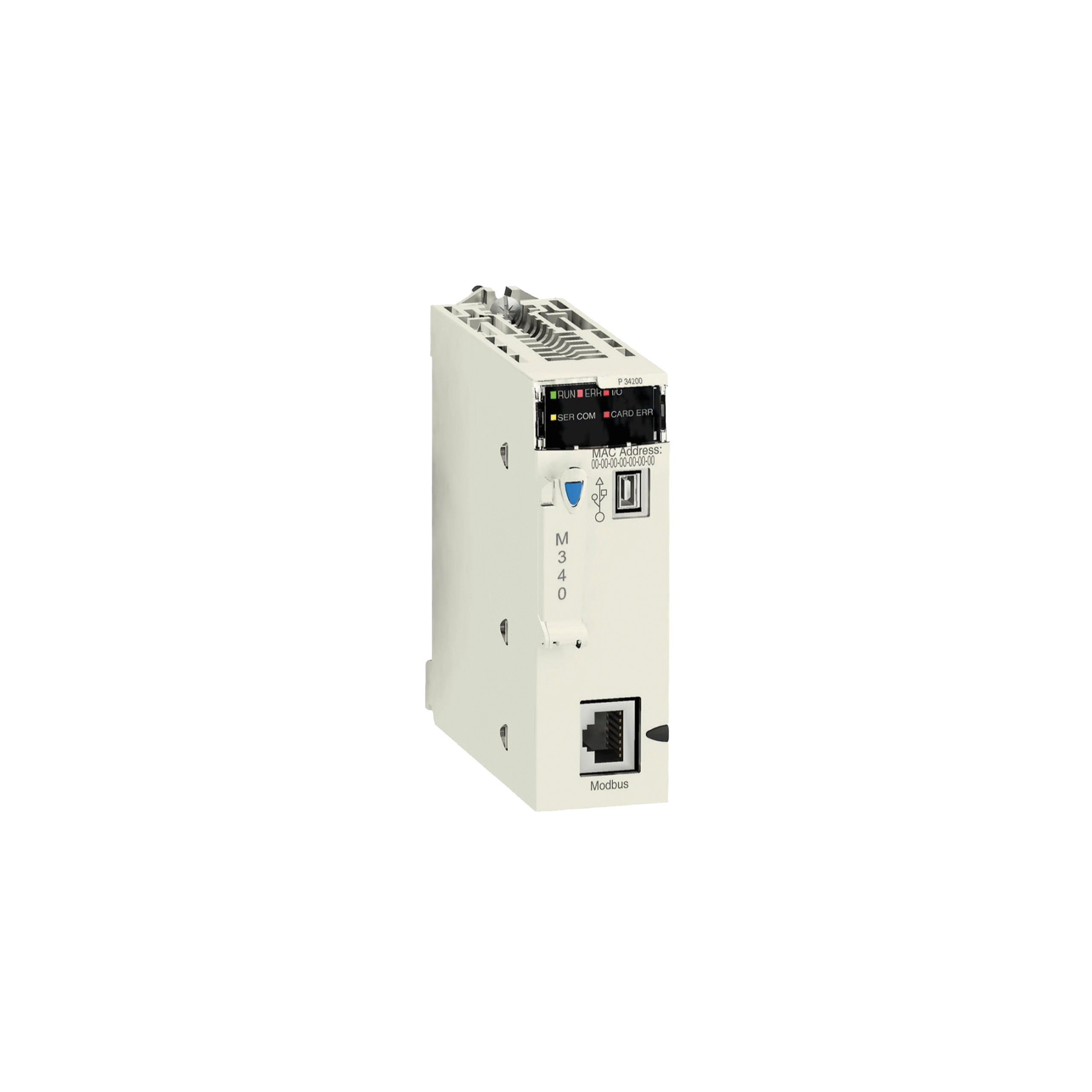

Compact in size (100 mm high, 93 mm deep, and 32 mm broad), the M340 only takes up one rack slot and has an integrated field bus and/or Ethernet connection design.

Adaptability
All control requirements are met by the Modicon M340 PAC.

Scalability
A scalable topology makes it simple to build a process or application: Numerous Modicon X80 modules can be used to increase the capabilities of the Modicon M340.

Strongness
A controller that has been tested in the field, the Modicon M340 performs better than required by certification.

Technical Data

Technical Data

Schneider Modicon M340 Series

🔹 M340 Series ▾

Dimensions (H×D×W)100 × 93 × 32 mm
Rack CapacityUp to 2 racks, 11 slots each
Discrete I/O CapacityUp to 1024 (multi-rack), 704 (single-rack)
Analog I/O CapacityUp to 256 (multi), 66 (single)
Application Channels~20 application-specific channels
USB PortFor programming via Unity Pro, OPC Factory Server, Magelis HMIs
CANopen InterfaceIntegrated CANopen master on select CPUs
Communications SupportModbus, Modbus/TCP, CANopen, OPC, Ethernet via modules
CertificationsCE, IEC 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
Protection RatingIP20 enclosure

Application

Application

  • Food & beverage and packaging machines
  • Pumping and hoisting systems
  • Conveyor systems and material handling
  • OEM machinery and factory automation
