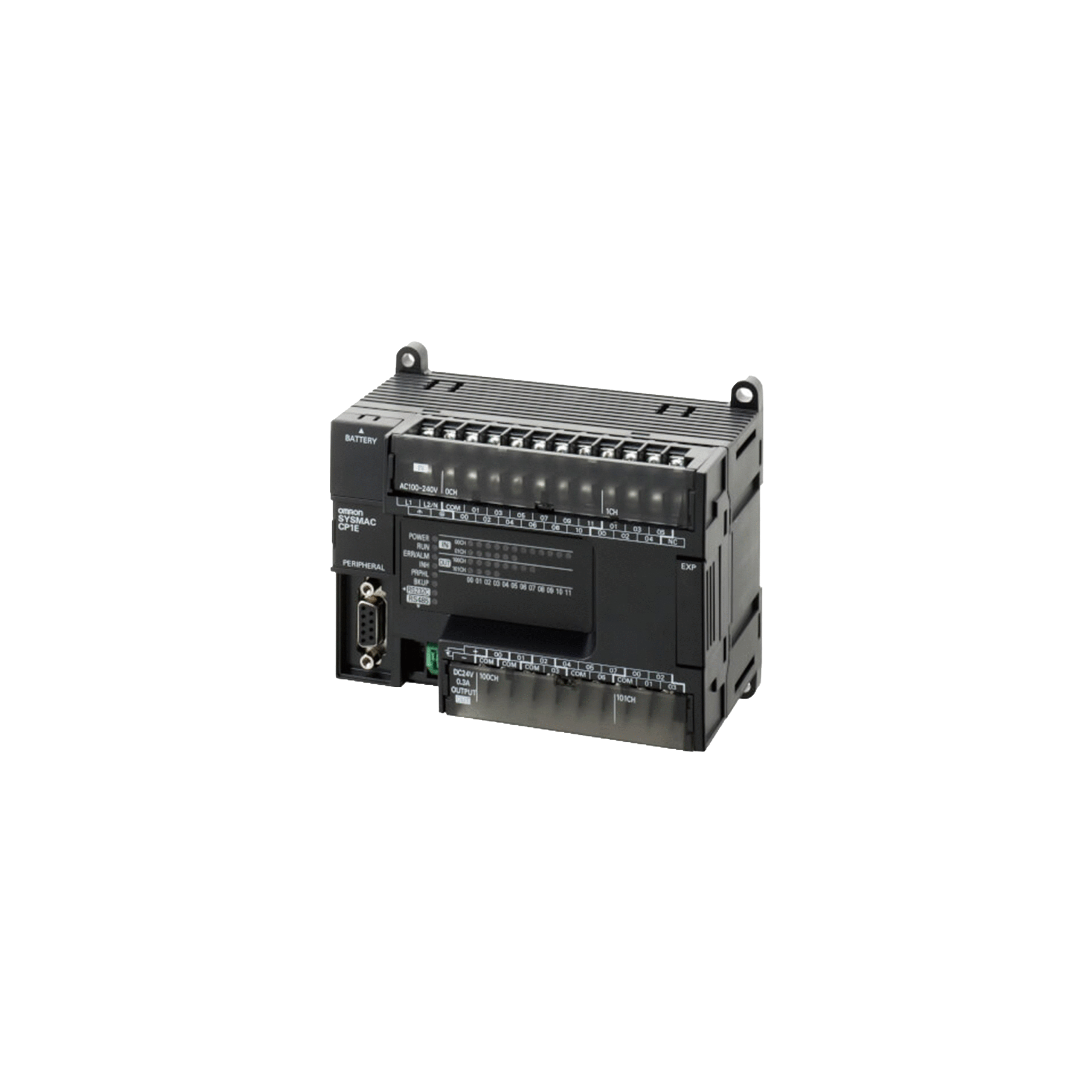

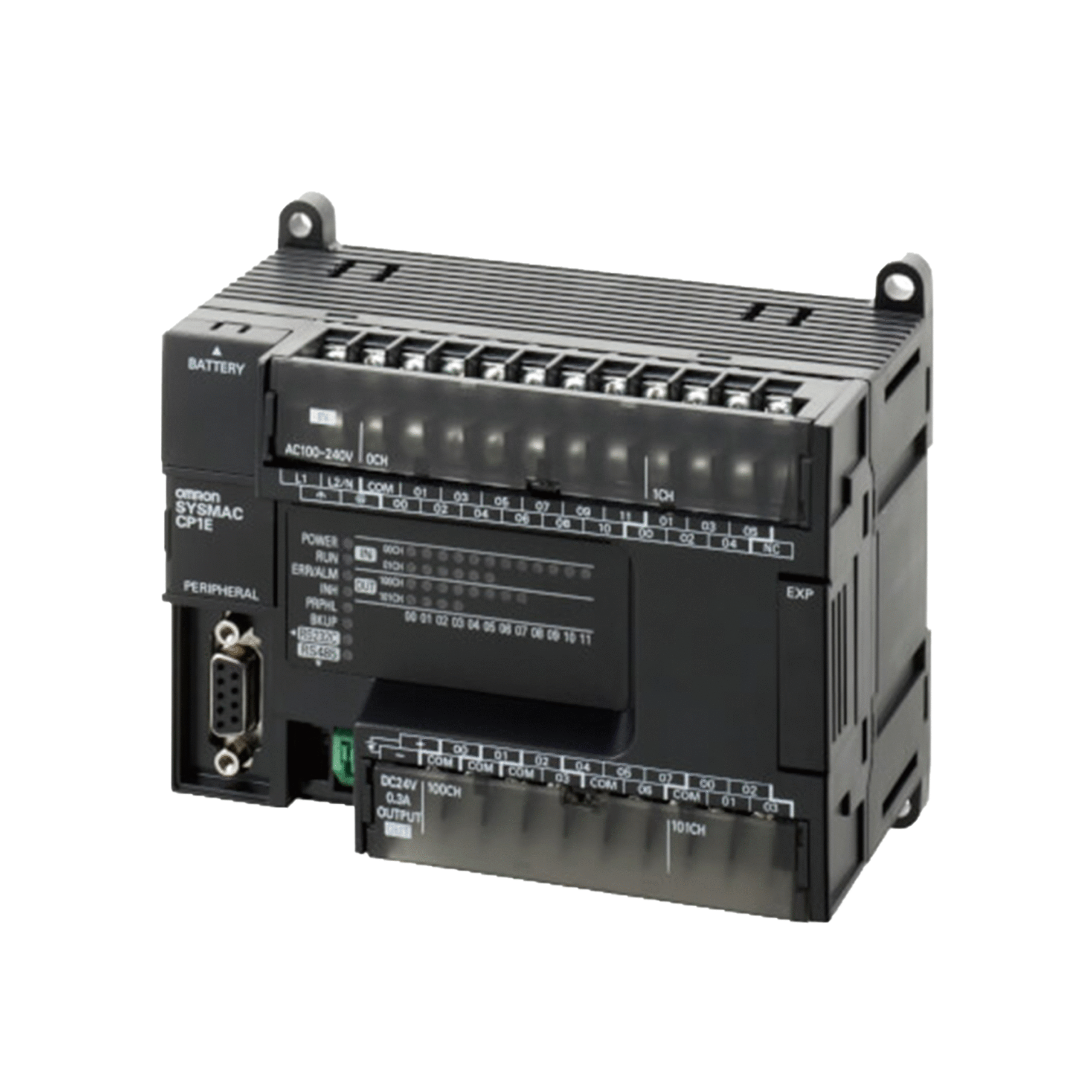

Omron CP1E
Features:
✅ High-speed processing with real-time performance
✅ Integrated motion and logic control
✅ Modular expansion and communication flexibility
✅ Scalable solutions for both basic and advanced applications
✅ Ready for Industry 4.0 and IIoT environments
The Omron CP1E series is a compact and cost-effective programmable logic controller designed for basic machine automation. It combines the functionality of a small PLC with the flexibility of I/O expansion and built-in control features, making it ideal for OEMs and general-purpose control systems.
Available in three model types—E-type, N-type, and NA-type—the CP1E offers multiple I/O configurations, support for analog control, and communication options like USB and RS-232C. With fast processing, built-in pulse outputs, and expandability, it provides reliable performance in space-constrained applications.
CP1E The economic machine controller
Our CP1E series provides exceptional positioning capability together with all the functionality required to manage very basic applications.
• There are now new CP1E CPU units available. The CPU units have three built-in ports: USB, RS-232C, and RS-485. CPU units with RS-232C ports have a 20 mm shallower depth (N30/40/60S(1)).
• USB cables that are sold commercially make connecting to PCs simple.
• Connect expansion units or expansion I/O units to E30/40/60(S), N30/40/60(S[]), or NA20 CPU units to add I/O, analog I/O, or temperature inputs.
• Interruptions in input
• Full functionality of the high-speed counter.
• Adaptable pulse control for N14/20/30/40/60(S[]) or NA20 CPU Units’ transistor output.
• PWM Transistor Outputs for CPU Units N14/20/30/40/60(S[]) or NA20. Serial, Ethernet, and Analog option boards can be mounted on N30, 40, 60, or NA20 CPU units.
• Two inputs and one output are integrated analog I/O for CPU units of the NA type.
Cost-Effective Compact Control for Small Machines
The Omron CP1E Series is a compact and economical PLC designed to deliver essential control functionality for basic automation applications. Ideal for OEMs and small machines, the CP1E provides reliable performance, easy programming, and seamless integration with Omron’s HMI and sensor portfolio. It’s the perfect choice when you need dependable control without the cost or complexity of a high-end system.
Technical Data
Omron CP1E Series
🔹 CP1E Series
â–¾
CPU Models CP1E-N20, CP1E-N30, CP1E-N40, CP1E-E20/30/40 Program Capacity Up to 8K steps (E-type), 2K steps (N-type) Data Memory 2K words (E-type only) Processing Speed 0.98 µs per basic instruction (E-type) Power Supply 100–240V AC or 24V DC (model-dependent) I/O Points Built-in: 20/30/40, Expandable up to 160 points Communication Ports USB, optional RS-232C/RS-485 (via adapter) Control Functions PWM, Pulse Output, High-speed Counter Expansion Modules Supports CP1W/CP1H I/O and special units Programming Software CX-Programmer (CX-One suite) Mounting Type DIN rail or panel mounted
Application
- Packaging and labeling machines
- Simple conveyors and part feeders
- Temperature and flow-based process control
- Basic industrial machinery for food, textile, and printing industries
Downloads
Supply & Shipping Details
Related products
Allen-Bradley MicroLogix / ControlLogix
Features:
✅ Compact & Cost-Efficient Design
✅ Built-in Communication Ports
✅ High-Speed Counters & Timers
✅ Data Logging Capabilities
✅ High-Performance Multitasking CPUs
✅ Advanced Motion Control & Safety
✅ Integrated Redundancy & Diagnostics
The ControlLogix® 5580 controller helps enable faster system performance, capacity, productivity and security to help meet the growing demands of smart machines and equipment for manufacturing. The ControlLogix 5580 controller with Studio 5000® software connects people and processes to enable the Connected Enterprise.

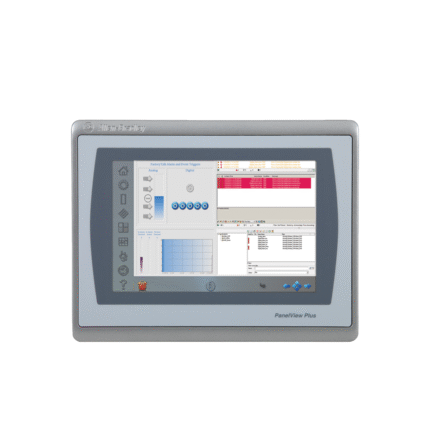

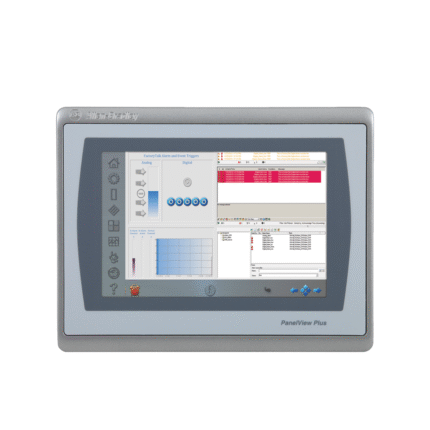

Allen-Bradley PanelView Plus HMIs
Features:
✅ Wide range of display sizes from 4" to 19"
✅ Resistive or capacitive touchscreen options
✅ High-performance CPU and memory for faster processing
✅ Integrated FactoryTalk® View ME support
✅ Remote access via VNC connectivity
✅ Aluminum or stainless steel bezels
✅ IP65/NEMA 4X front panel protection rating
The PanelView Plus series enables users to interact efficiently with their machines and processes, ensuring improved productivity, faster troubleshooting, and robust system performance across diverse industries.
Liquiphant FTL51B – Level Sensors
Features:
✅ Reliable vibrating fork technology
✅ SIL2/3 certified for safety-critical applications
✅ Heartbeat Technology for diagnostics & monitoring
✅ HART, Bluetooth®, IO-Link communication
✅ No calibration or adjustment needed
✅ IIoT-ready with Netilion support
✅ Robust 316L stainless steel construction
The Liquiphant FTL51B is a smart vibrating fork level switch for reliable point level detection in liquids. It operates independently of media properties, requires no calibration, and is ideal for safety-critical applications with SIL2/3 certification. With digital communication (HART, IO-Link, Bluetooth®) and Heartbeat Technology, it ensures efficient diagnostics and predictive maintenance.
Mitsubishi Servo Motors & Drives – MELSERVO Series
Features:
✅ 1.6 kHz high-speed frequency response
✅ 22-bit absolute encoder (4 million pulses/rev)
✅ Auto-tuning for quick setup
✅ Built-in vibration suppression
✅ Supports SSCNET III/H, EtherCAT, CC-Link IE TSN
✅ Regenerative energy utilization
✅ Compact, panel-friendly design
Mitsubishi Electric delivers a comprehensive range of servo motors — including rotary, linear, and direct drive types — designed to achieve exceptional machine performance, precision, and flexibility across diverse industrial applications.
Omron NX1P
Features:
✅ High-speed CPU with fast 0.5 ms cycle time
✅ Built-in EtherCAT master for up to 4-axis motion control
✅ Large program (1.5 MB) and data memory (512 KB)
✅ Integrated logic, motion, and information control
✅ Scalable I/O system with NX-series slice I/O
✅ Ethernet/IP, EtherCAT, and USB connectivity
✅ Supports IoT and Industry 4.0-ready automation
The NX1P series is a high-performance PLC with integrated motion control, real-time communication, and scalable I/O. It is designed for high-speed machines and applications that require IoT connectivity and compact design.

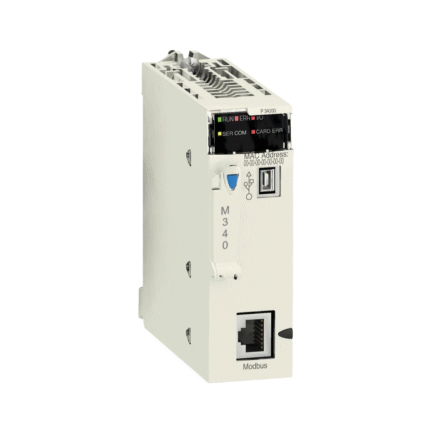

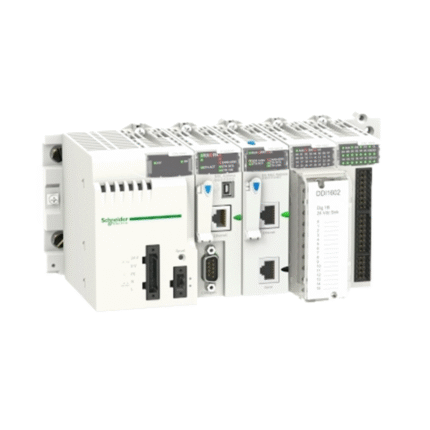

Schneider Modicon M340
Features:
✅ Built-in field bus and/or Ethernet communication design
✅ SD-card for application recovery or firmware upgrade
✅ Easily design your process or application with scalable topology
✅ Modicon M340 design complies with automation standards
✅ Shares common X80 modules with Modicon family products
The Modicon M340 is a mid-range Programmable Automation Controller (PAC) designed for industrial process, infrastructure, and discrete control applications. It combines compact modularity with powerful performance and integrated fieldbus/Ethernet connectivity for plug-and-play deployment and fast commissioning
Siemens KTP & Comfort Panels
Features:
✅ Operation: Combined touch and tactile keys
✅ Communication: PROFINET/PROFIBUS, USB interface
✅ Memory: Integrated Flash memory for project storage
✅ Durability: IP65 front protection for industrial use
✅ High Resolution: TFT display with 16 million colors
✅ Multi-language Support: Up to 32 languages
✅ Web Server Support: Remote access via browser
Enhance your automation experience with Siemens HMI Panels, designed for intuitive operation and seamless system integration.

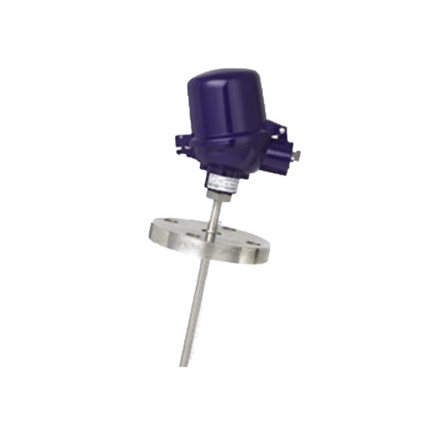

WIKA Temperature Sensors – RTDs & Thermocouples
