Baumer

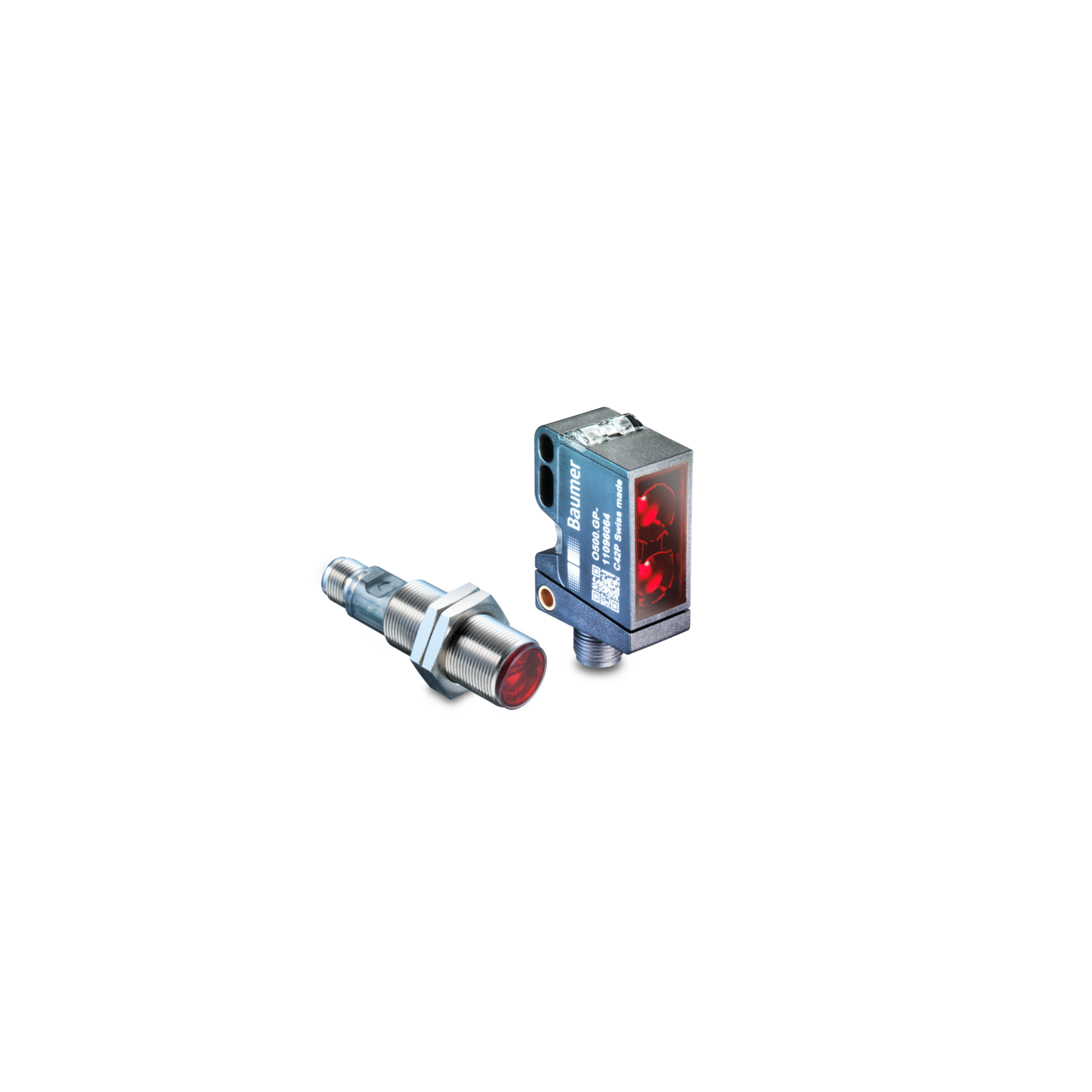

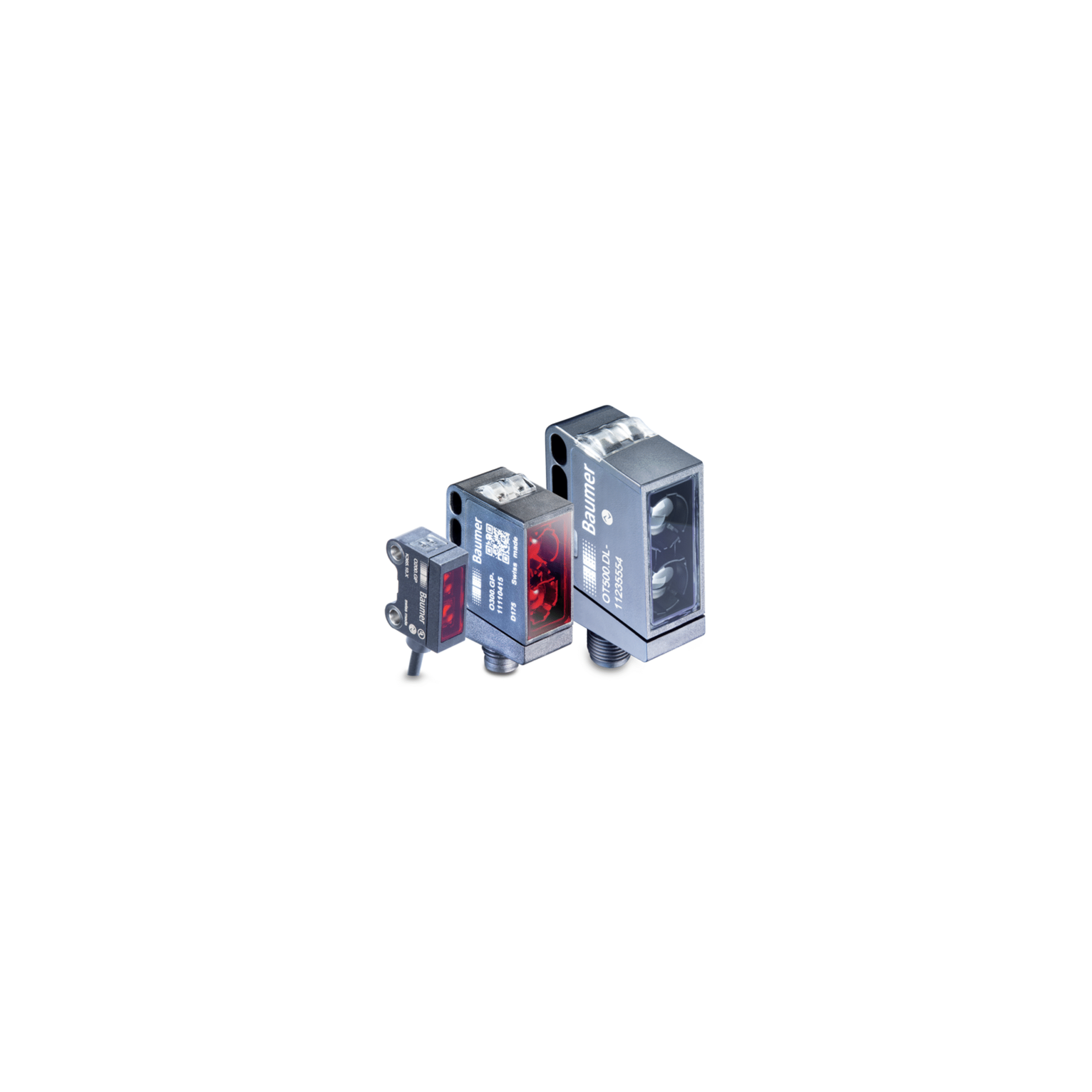

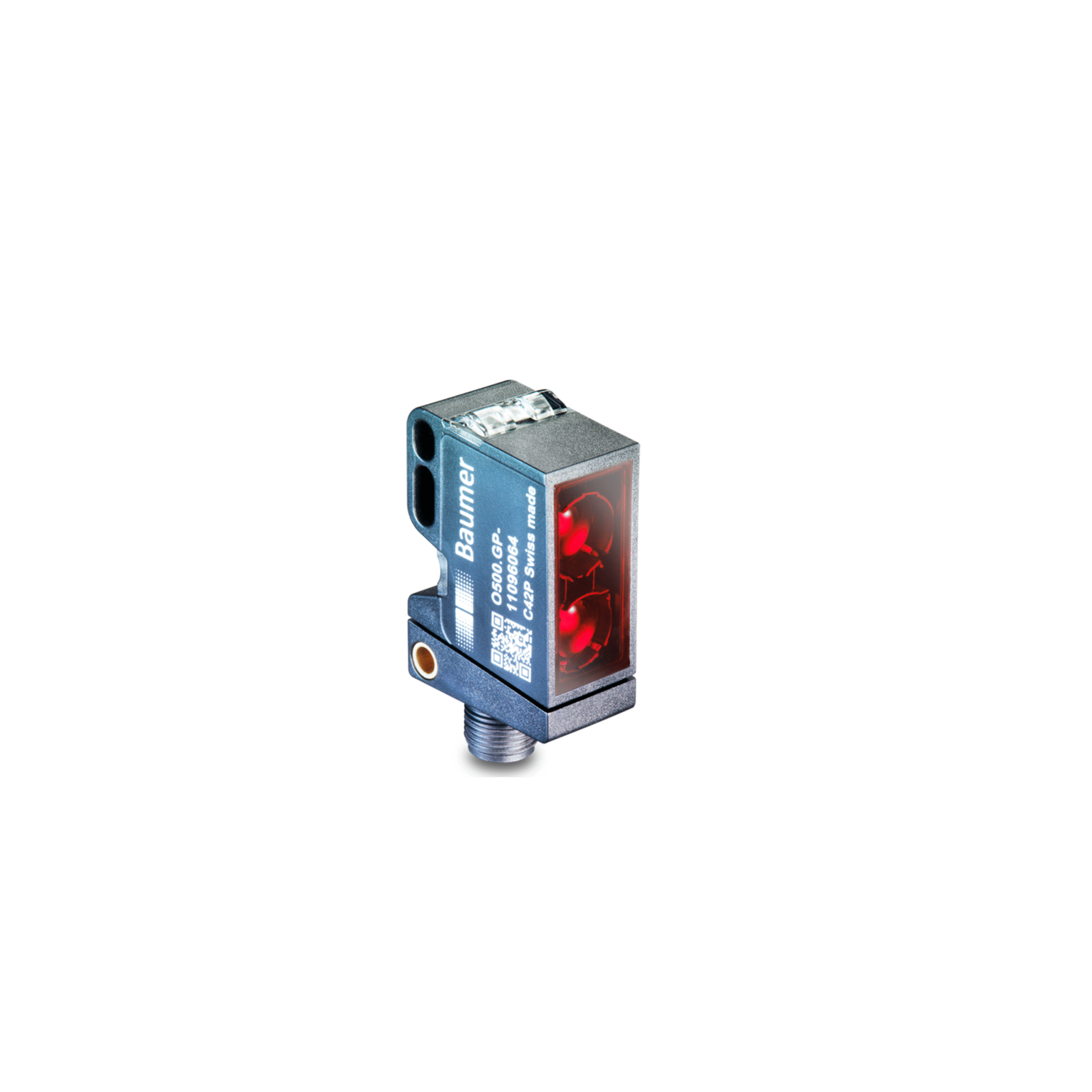

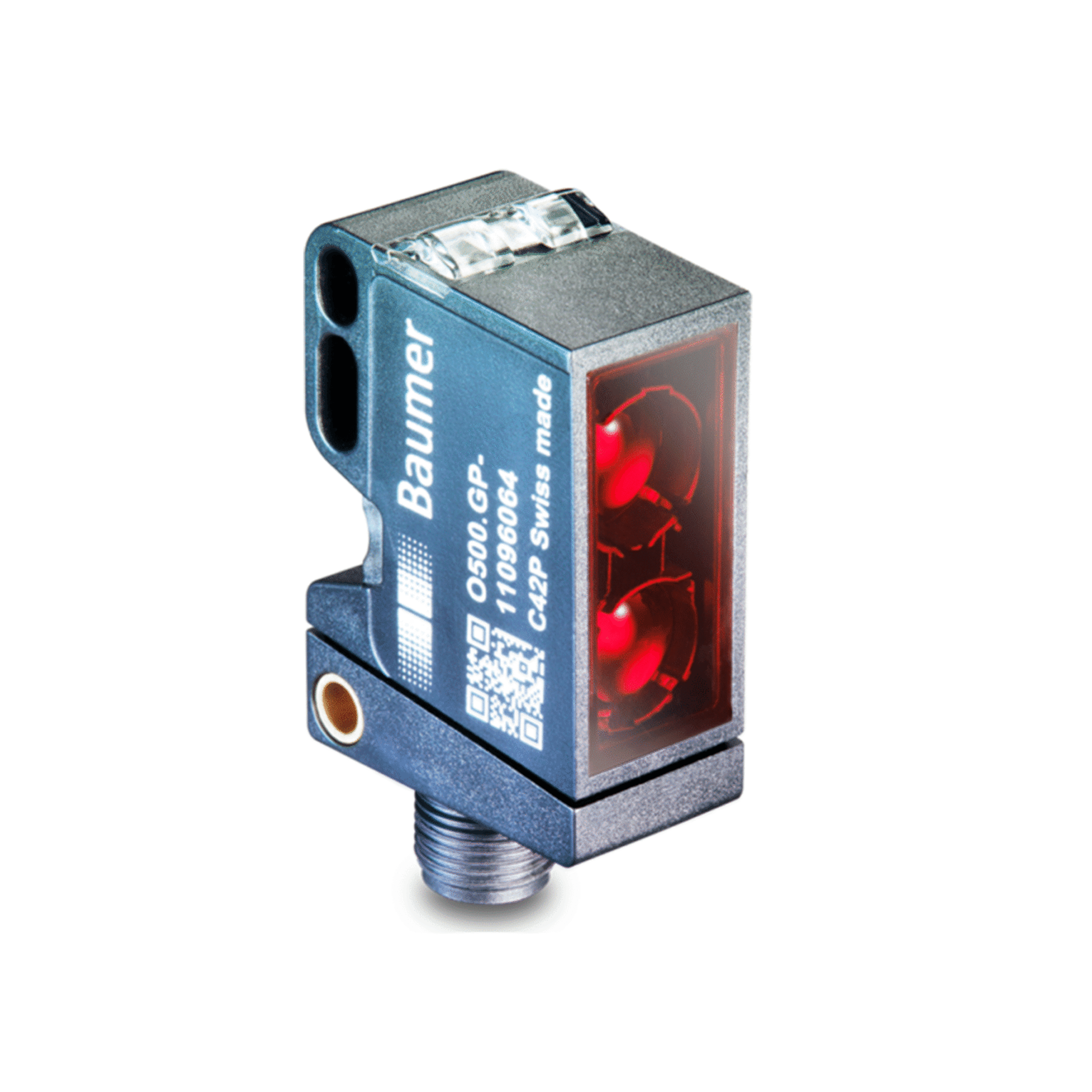

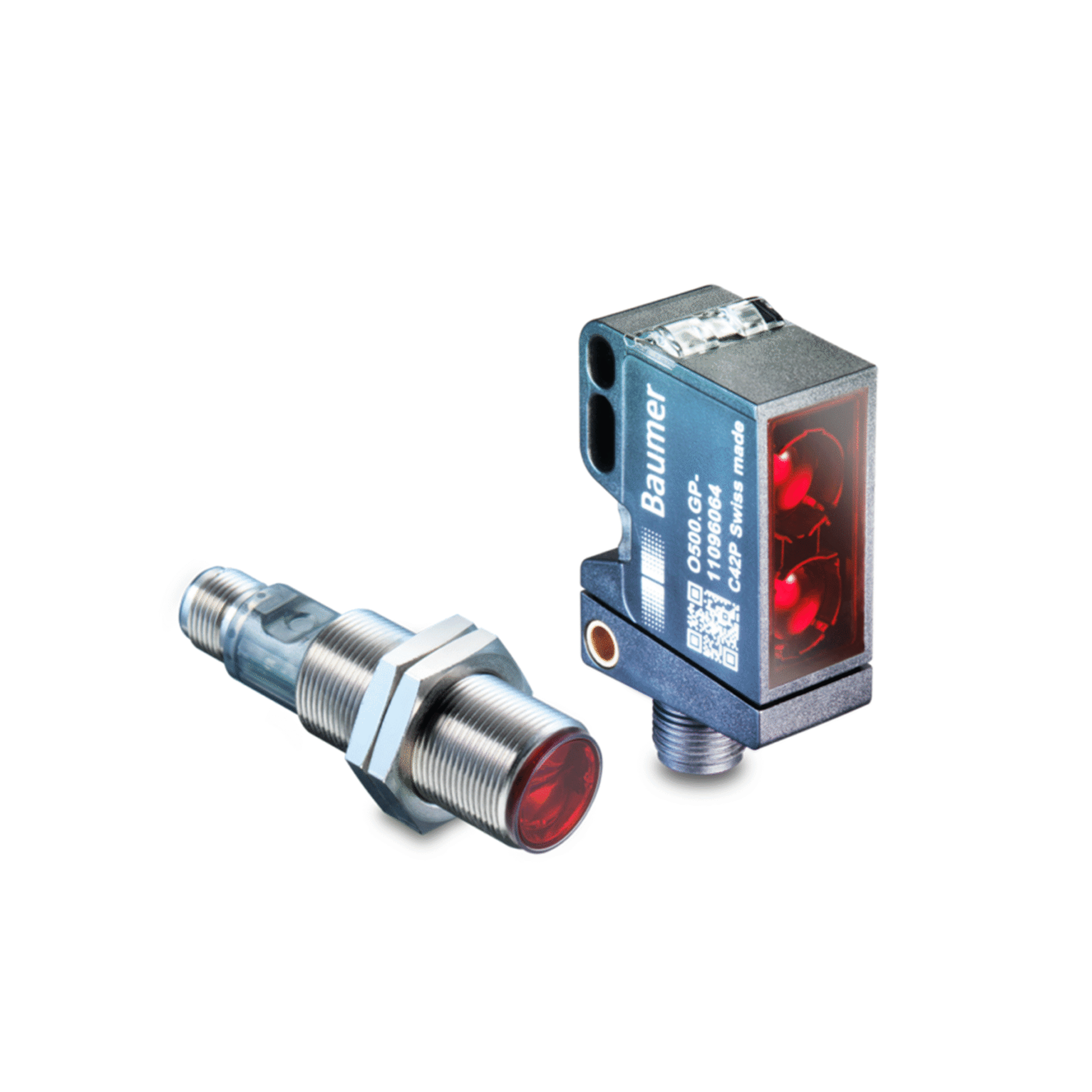

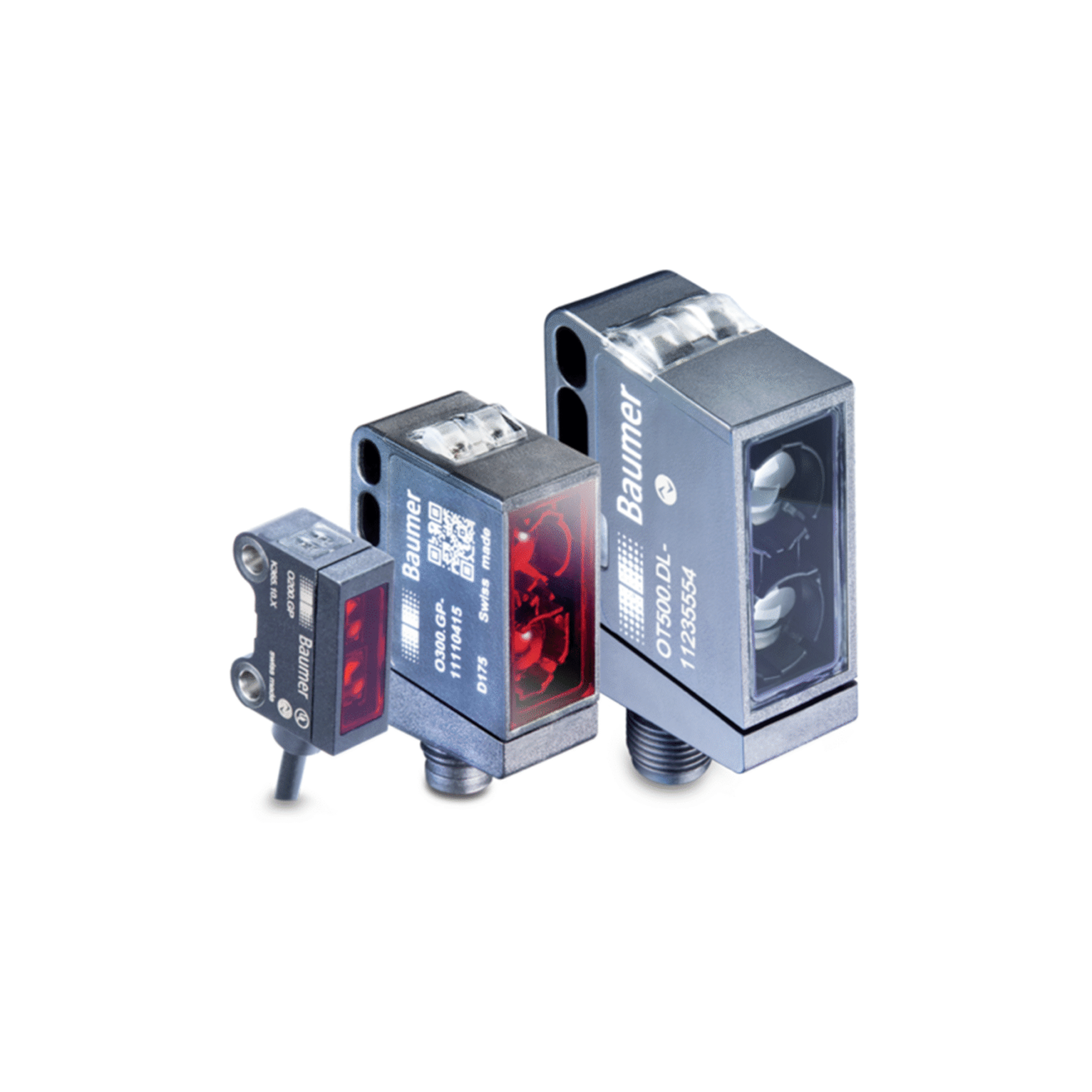

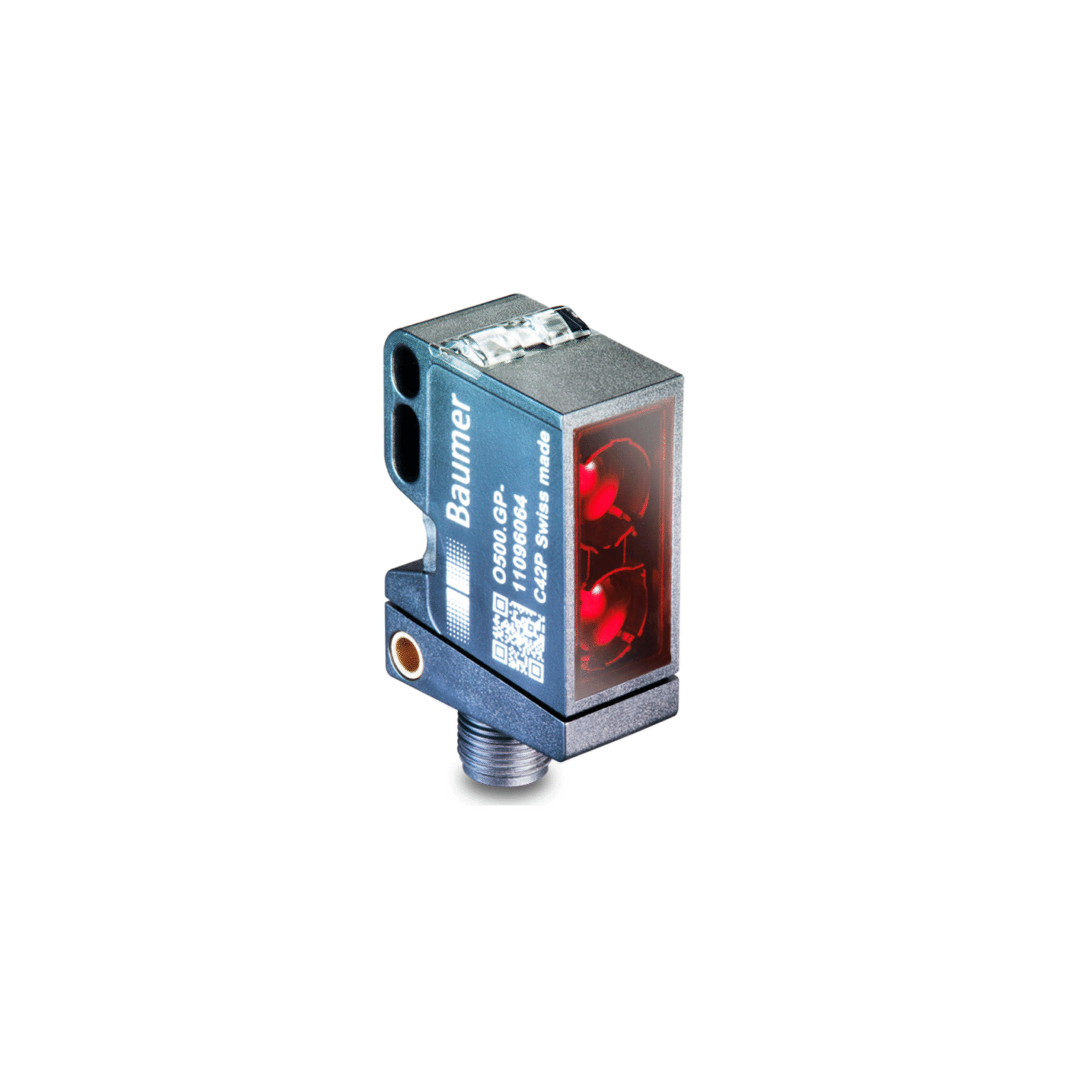

Baumer Photoelectric Sensors

Features:

✅ Versatile Sensing Principles
✅ Long Sensing Ranges
✅ Compact, Rugged Housings
✅ Advanced Light Sources
✅ Wide Operating Temperature

These features make Baumer Photoelectric Sensors ideal for applications like conveyor automation, robotic alignment, presence detection in packaging, transparent object sensing, and industrial counting or inspection.

Compare
Add to wishlist
SKU: N/A Categories: , Brand:
Description

Baumer Photoelectric Sensors offer reliable and precise detection of objects, surfaces, and positioning with high-speed response and long sensing ranges. Built with cutting-edge optics and sensor technology, Baumer’s range of sensors—including diffuse, retro-reflective, through-beam, and laser types—provide flexible, high-performance solutions for a wide range of automation tasks in manufacturing, packaging, robotics, and logistics.

With rugged housing designs, compact form factors, and advanced features like background suppression, cross-talk immunity, and IO-Link communication, Baumer sensors enable consistent and efficient operations even in challenging industrial environments.

Reliable Object Detection for Industrial Automation

Baumer Photoelectric Sensors are engineered for precise, contactless detection of objects, positions, and distances in a wide range of automation environments. Known for their compact design, high detection accuracy, and rugged construction, these sensors ensure fast and reliable operation even in harsh industrial conditions. From transparent object detection to long-range distance measurement, Baumer offers advanced sensing solutions tailored to every need.

Technical Data

Technical Data

Baumer Photoelectric Sensors

🔹 Baumer Sensor Series ▾

Sensing TypesDiffuse, Retro-reflective, Through-beam, Laser
Sensing DistanceUp to 60 m (through-beam), 2 m (diffuse)
Light SourceLED (Red, Infrared), Laser (Class 1)
Output TypePNP/NPN, NO/NC, Analog (model-dependent)
Response TimeAs low as 0.25 ms
Operating Voltage10 to 30 VDC
Connection TypesM8/M12 connector, cable
Housing MaterialPlastic, stainless steel, die-cast zinc
Ambient Temperature–25°C to +60°C
Protection ClassIP67, IP68, IP69K (select models)
InterfaceIO-Link (available on select models)
MountingThrough-hole, surface, bracket compatible
StandardsCE, RoHS, UL, Ecolab certified models

Application

Application

  • Conveyor and packaging line object detection
  • Robotics and part alignment
  • Bottle and label presence sensing
  • Transparent object and film detection
  • Positioning and edge detection in printing machines
  • Counting and speed monitoring in sorting systems
Downloads

Downloads

Technical Datasheets: Baumer Photoelectric Sensors

Supply & Shipping Details

Supply & Shipping Details
