Mitsubishi

Mitsubishi FX Series

Features:

✅ Packaging machines
✅ Food & beverage automation
✅ HVAC & building automation
✅ Material handling systems
✅ OEM equipment control
✅ Water treatment systems
✅ Energy management systems

The Mitsubishi FX Series is a family of compact and cost-effective programmable logic controllers (PLCs) designed to deliver fast, reliable, and flexible automation control for small to medium-scale applications. Recognized globally for its durability and performance, the FX Series combines ease of use with advanced functionality, making it one of the most widely used PLC families in industrial automation.



Brand

Compare
Add to wishlist
SKU: N/A Categories: , Brand:
Description

Mitsubishi Electric’s FX Series PLCs are compact, reliable, and high-performance programmable logic controllers widely used in factory automation. Engineered for small to mid-size control systems, the FX Series offers flexible expansion, fast processing, and a wide range of communication options for seamless integration into industrial networks.

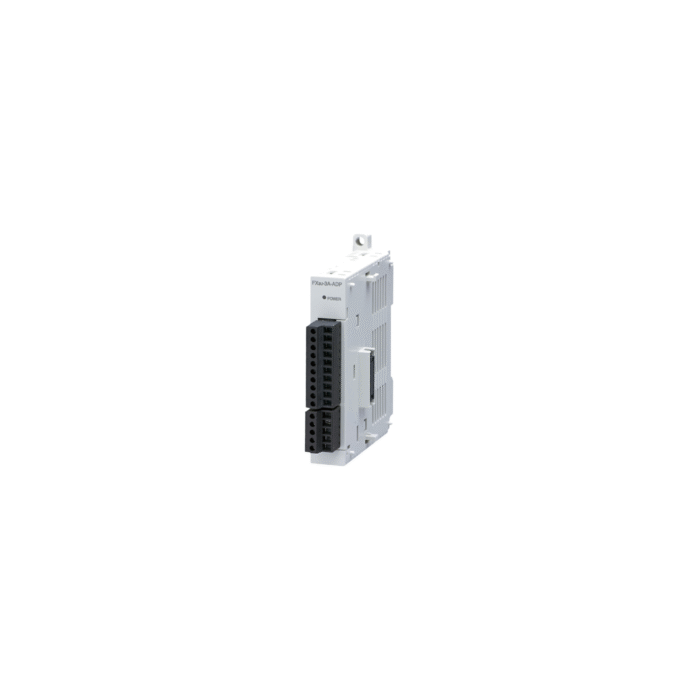

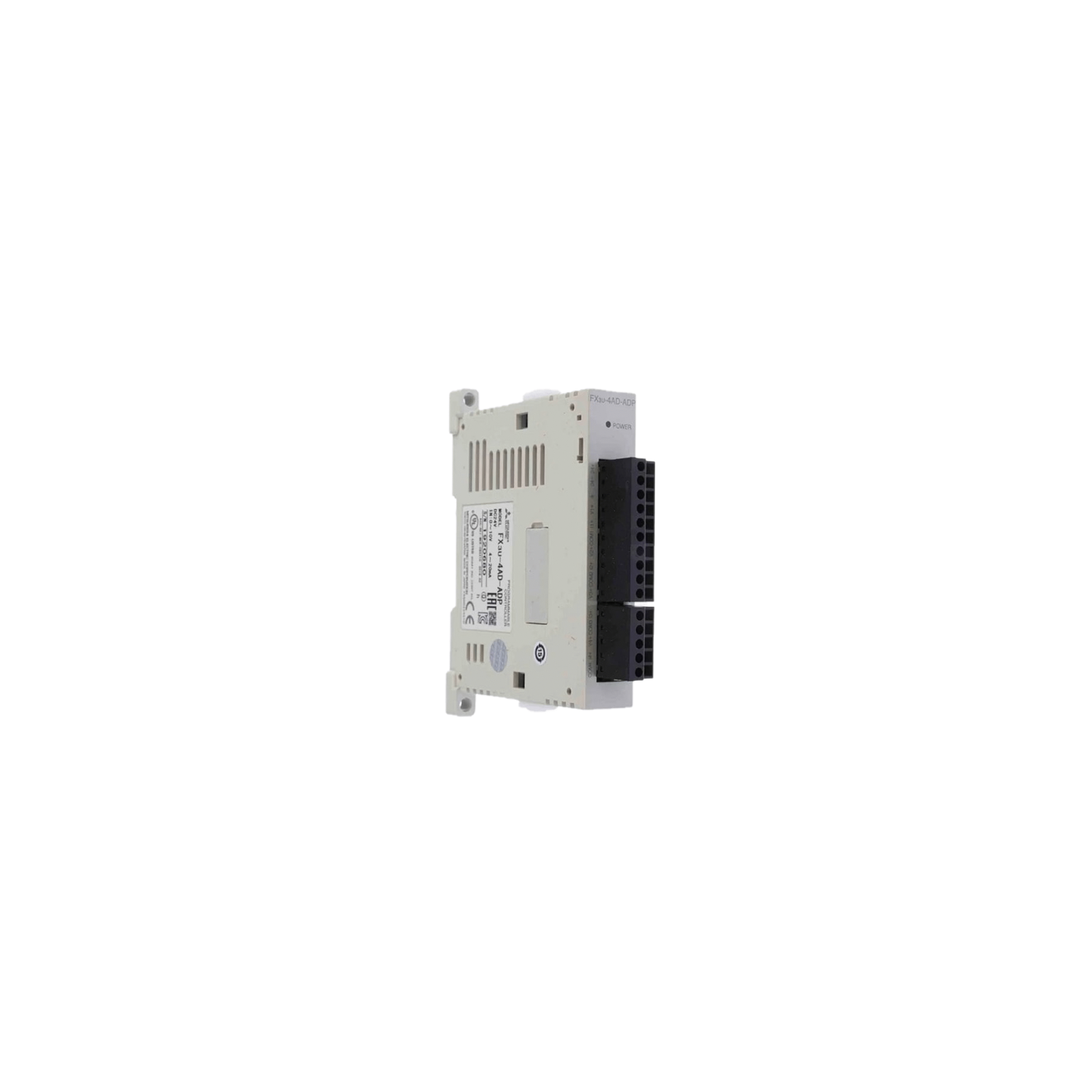

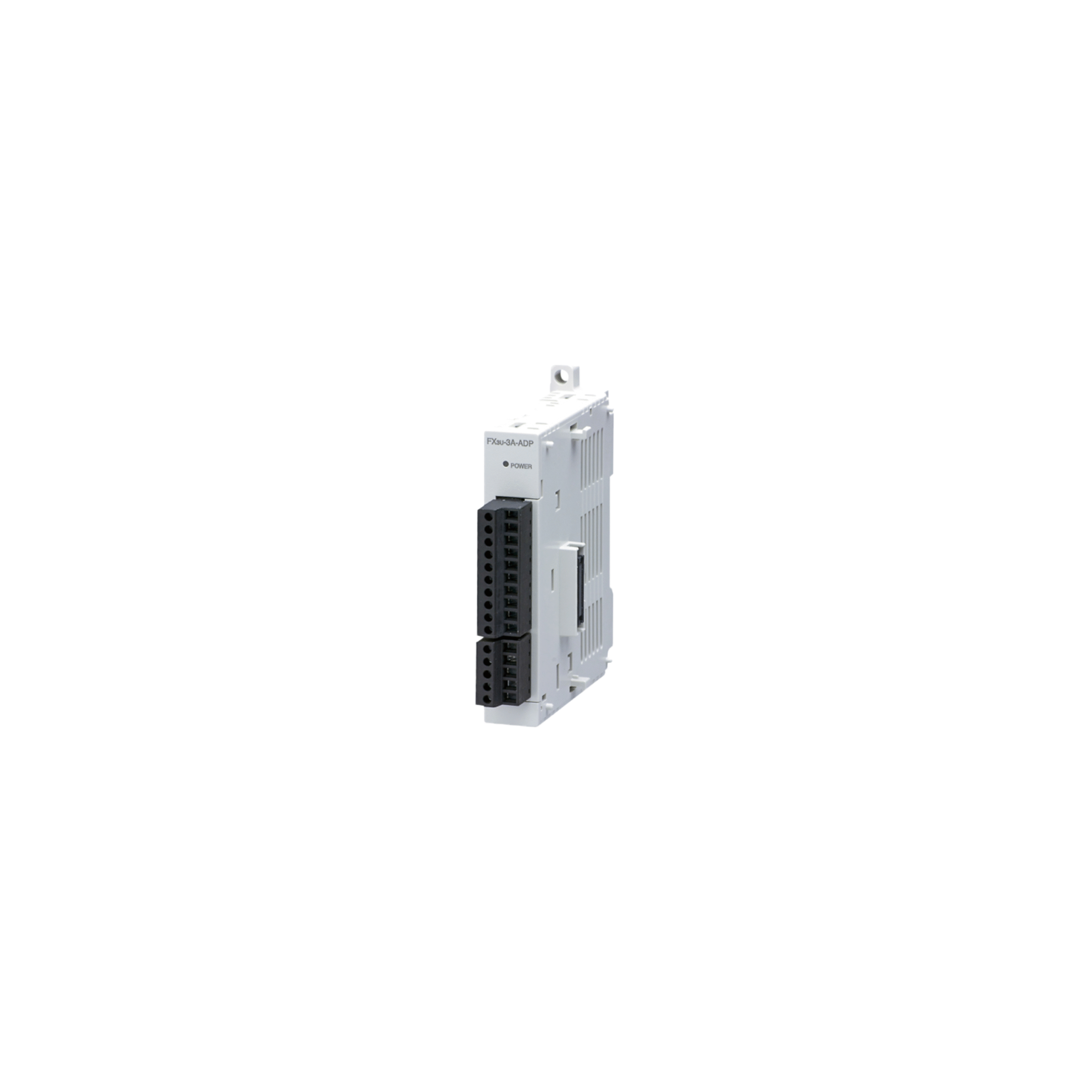

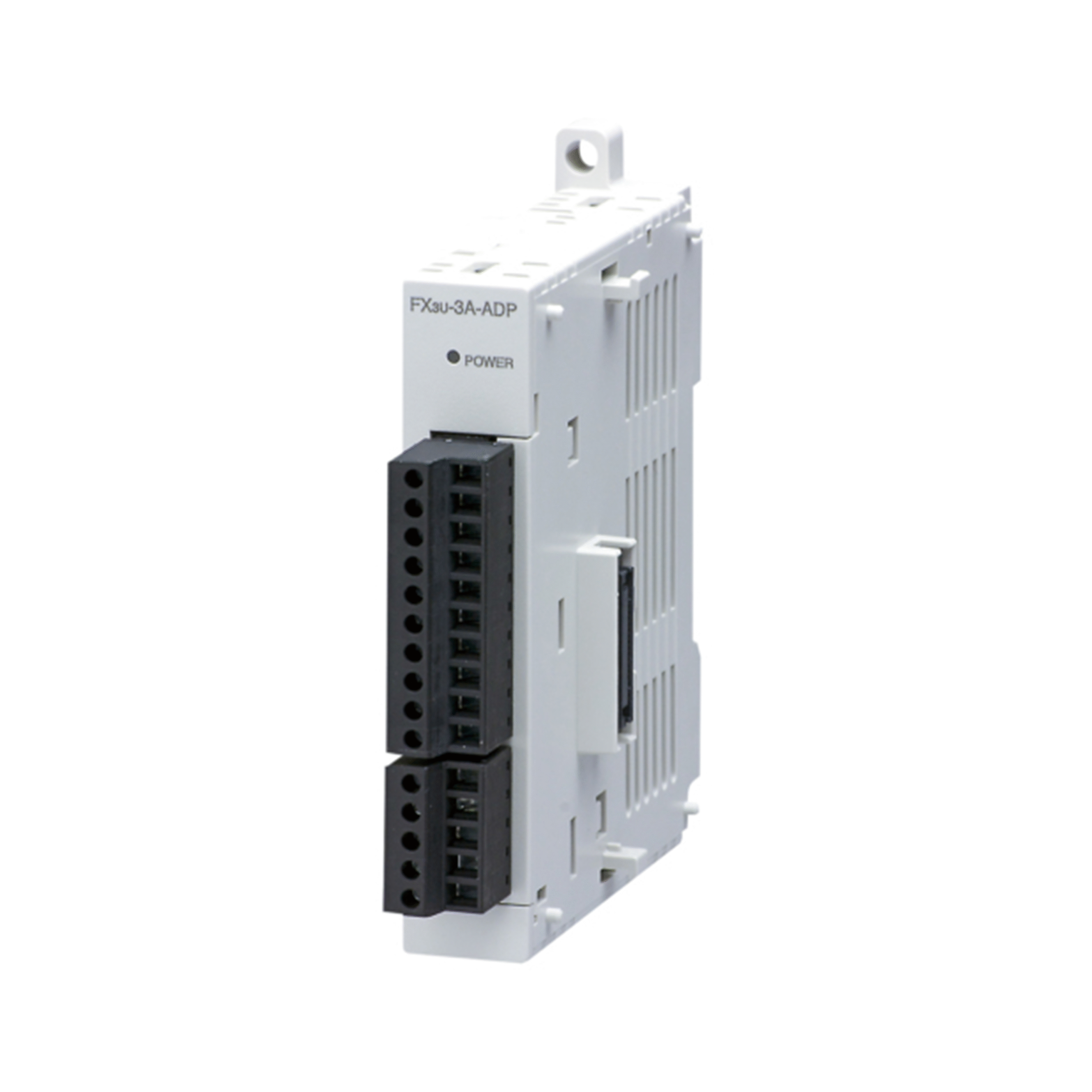

Analogue I/O modules with 4 channels, 12 bit resolution and direct addressing. Suitable for connection to FX3 PLC’s only.

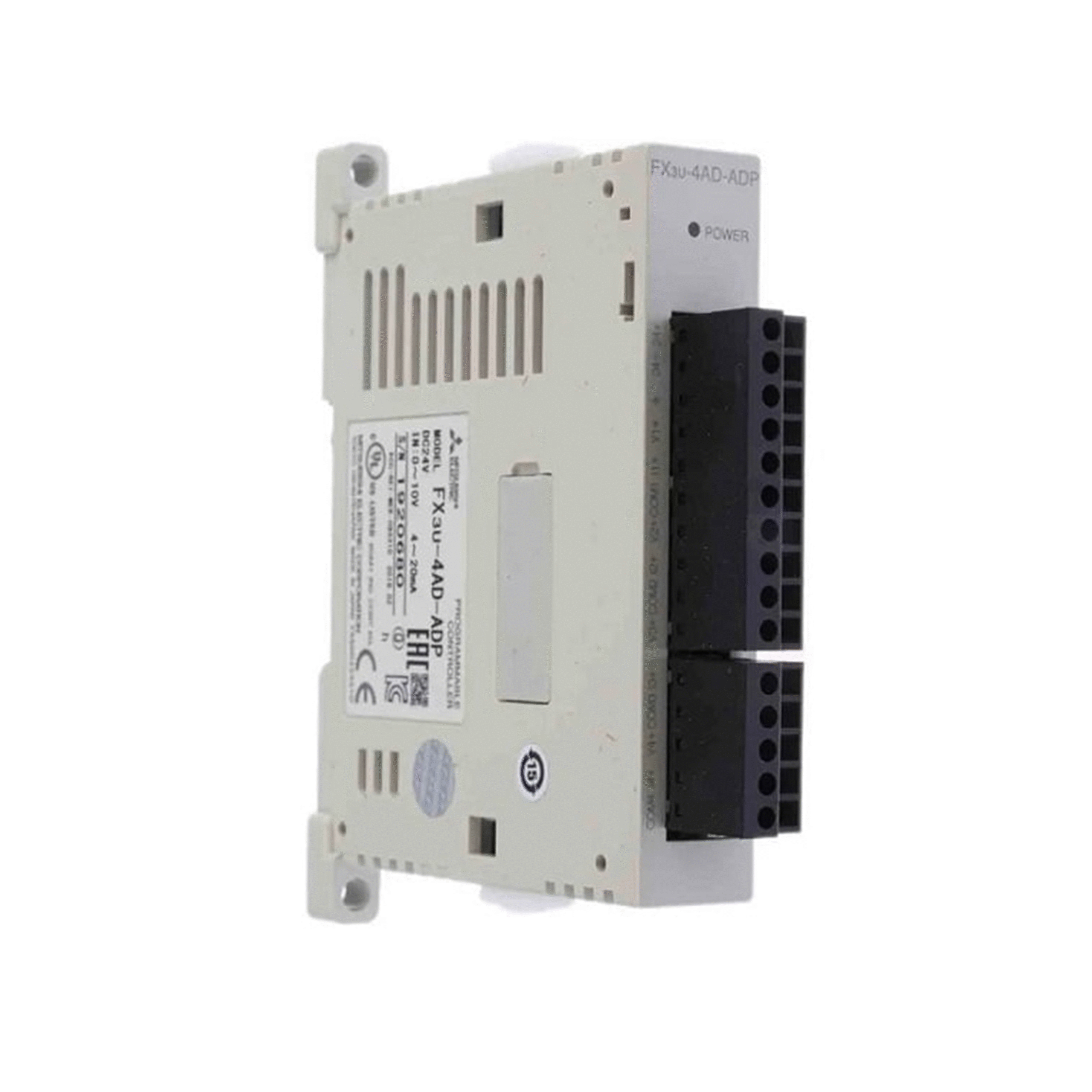

  • 4AD module with 4 channels suitable for 0-10V and 4-20mA analogue inputs
  • DA module with 4 channels suitable for 0-10V and 4-20mA analogue outputs
  • 4AD-PT module with 4 channels suitable for PT100 temperature probes/ analogue inputs
  • 4AD-TC module with 4 channels suitable for thermocouple temperature probes/ analogue inputs
Technical data

Technical data

Mitsubishi FX Series

🔹 FX3U Series ▾

CPU TypeIntegrated
Program Capacity64k steps (max)
Processing Speed0.065 µs per instruction
Number of I/O PointsUp to 384
Built-in I/O16/32/64 (model dependent)
Memory BackupBattery/Flash
Communication PortsRS-422/USB/Ethernet (optional)
Power Supply100–240V AC / 24V DC
Analog ControlOptional via expansion

Application

Application

  • Packaging machines
  • Food & beverage automation
  • HVAC & building automation
  • Material handling systems
  • OEM equipment control
  • Water treatment systems
  • Energy management systems
  • Textile machinery
Downloads

Downloads

Technical Datasheets: Mitsubishi FX Series
