WIKA

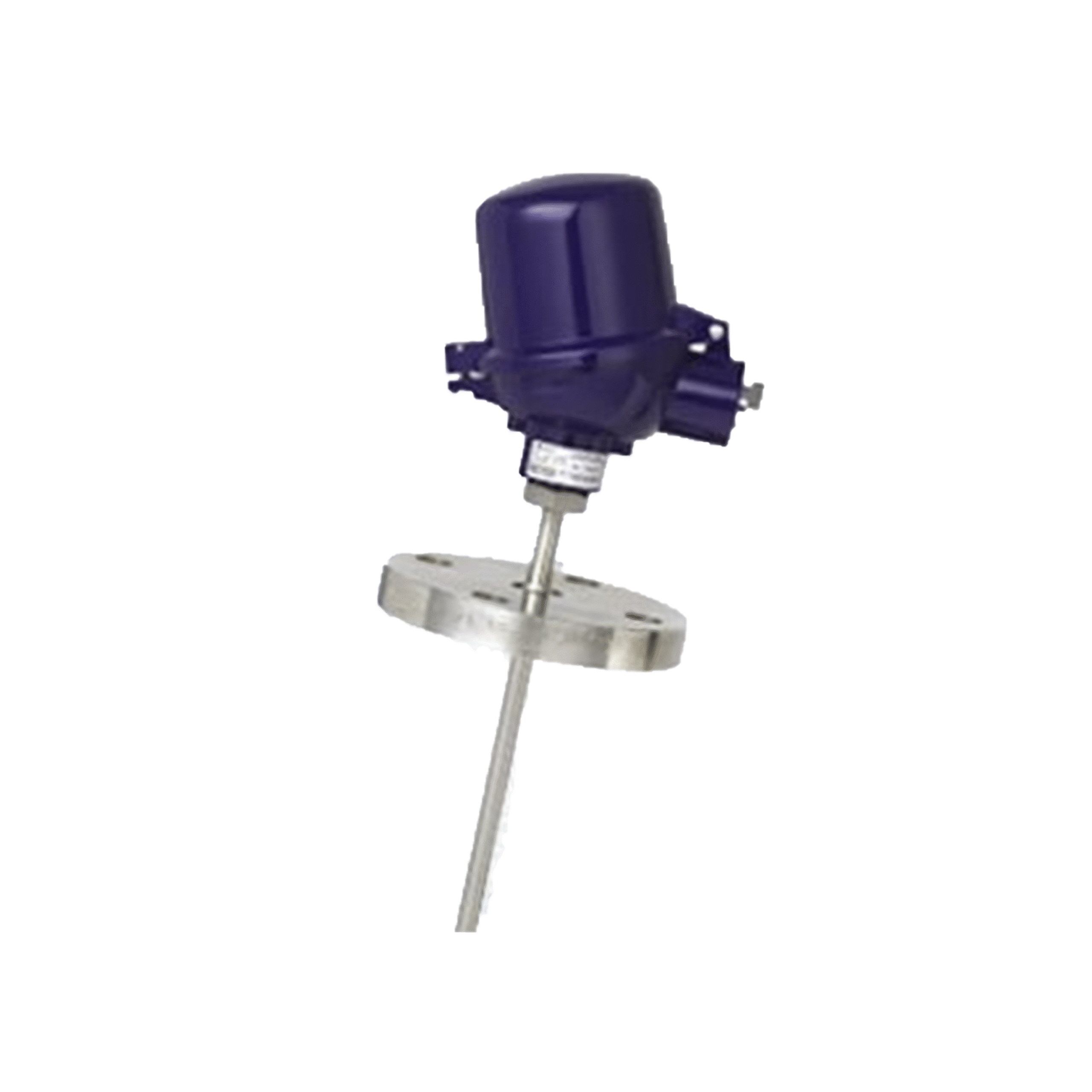

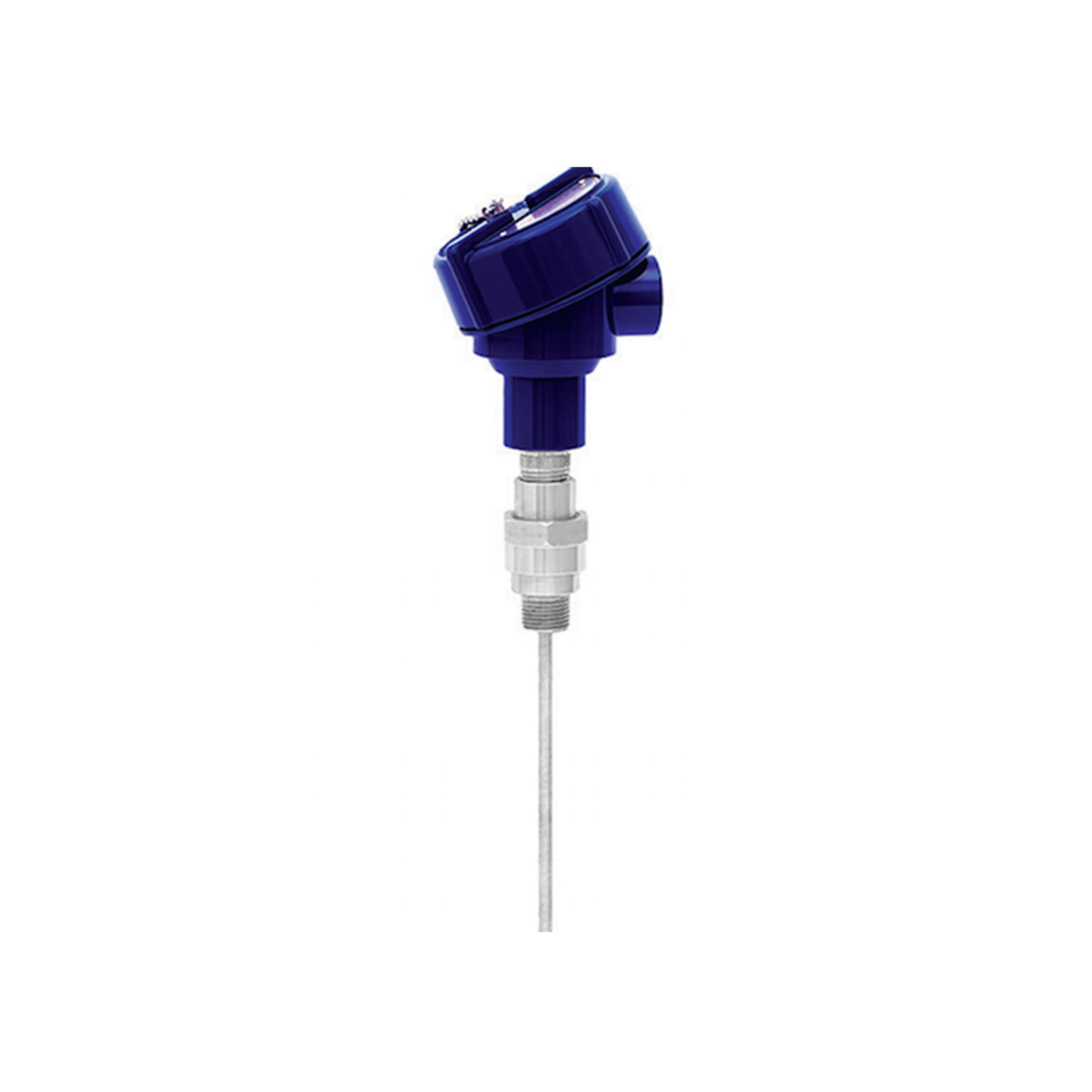

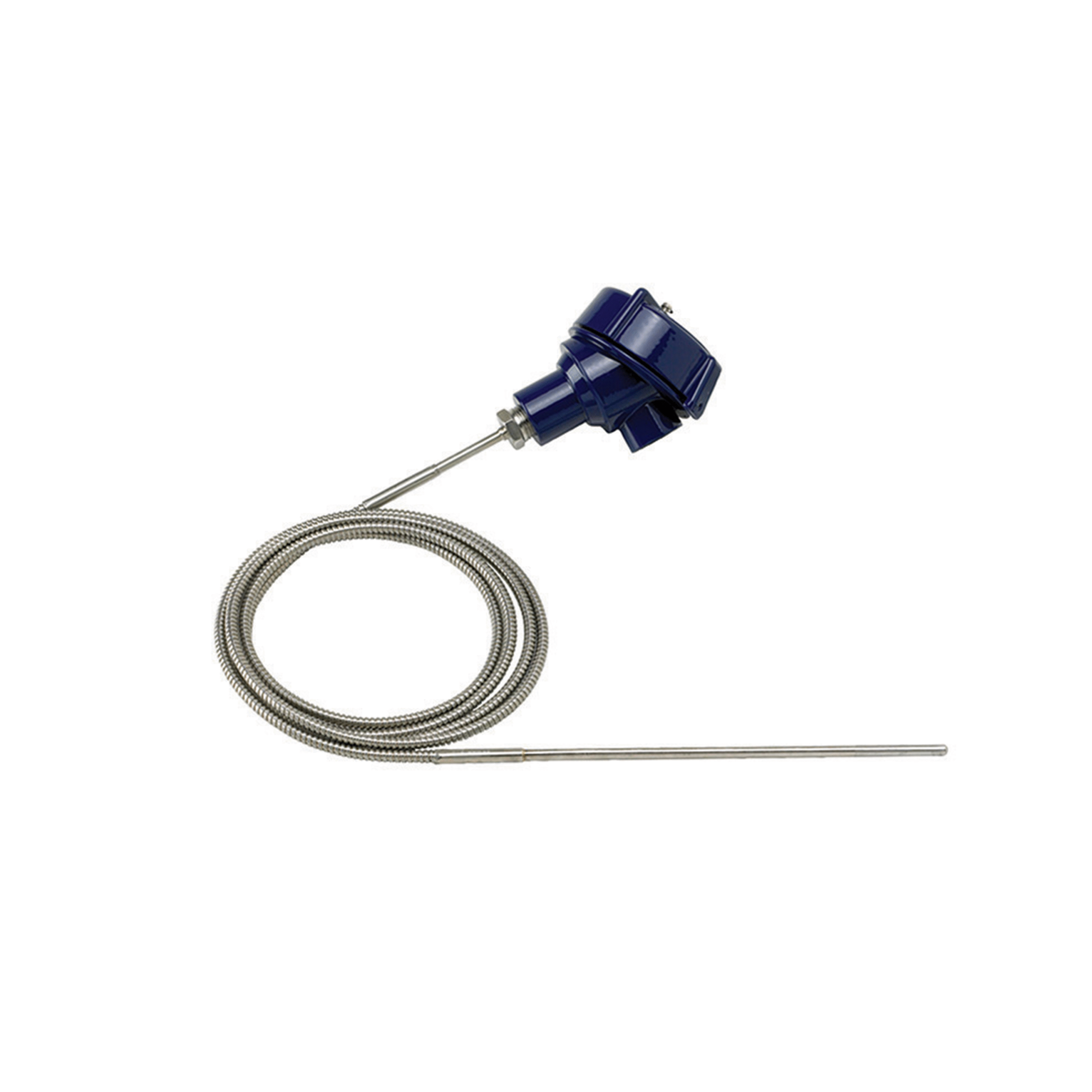

WIKA Temperature Sensors – RTDs & Thermocouples

Features:

✅ Wide Range :RTD: -200°C to +600°C , Thermocouple: -200°C to +1,800°C
✅ High Accuracy: RTD: Class A & B (IEC 60751) , TC: ANSI/IEC standard compliance
✅ Flexible Construction: Spring-loaded, sheath-type, MI designs , Options: thermowells, heads, cables
✅ Wide portfolio
✅ High measurement accuracy and long service life
✅ Low susceptibility to interference and thus high process reliability

Thermocouple-equipped temperature probes are perfect for measuring temperatures as high as +1,700 °C. They are made up of two distinct metals that are connected to create a thermocouple.

Compare
Add to wishlist
SKU: N/A Categories: , , Brand:
Description

Temperature Sensors – WIKA RTDs & Thermocouples offers a comprehensive range of Resistance Temperature Detectors (RTDs) and Thermocouples, engineered for high-accuracy temperature monitoring in industrial environments. These sensors ensure dependable performance in applications ranging from general process control to demanding high-temperature operations. Designed for robustness, WIKA temperature sensors deliver fast response times, long service life, and compatibility with global instrumentation standards.
WIKA has been one of the top producers of superior industrial temperature measuring equipment for a long time. Utilize WIKA’s temperature measuring equipment to measure and track the temperature of your applications. We stand out due to our expertise and experience in temperature sensor manufacturing. The following categories basically include WIKA’s industrial temperature measurement temperature probes.

Precision. Reliability. Versatility.
WIKA offers a wide range of high-quality RTD (Resistance Temperature Detectors) and Thermocouple sensors designed for accurate and reliable temperature measurement in industrial and process environments.

WIKA’s temperature sensors are engineered for performance in demanding conditions. Whether you require high accuracy, fast response time, or extreme temperature resistance, WIKA sensors provide dependable solutions across various industries.

Technical Data

Technical Data

WIKA Temperature Sensors – RTDs & Thermocouples

🔹 WIKA RTD / Thermocouples ▾

Measuring RangeRTD: -200°C to +600°C
Thermocouples: -200°C to +1800°C (type dependent)
Accuracy ClassRTD: Class A / B (IEC 60751)
Thermocouples: ASTM / IEC Standard Tolerances
Sensor ElementRTD: Pt100, Pt1000
Thermocouples: Type J, K, T, E, N, R, S, B
Output SignalRTD: Resistance (Ω) / 4–20 mA (with transmitter)
Thermocouples: mV / 4–20 mA (with transmitter)
Response TimeRTD: <1 to 5 seconds (design dependent)
Thermocouples: Fast response with MI sheath
Insulation Resistance>100 MΩ at 500 VDC (both types)
Process ConnectionRTD: Threaded / Flanged / Compression Fitting
Thermocouples: Threaded / Flanged / Welded
Sheath MaterialRTD: SS316, Inconel
Thermocouples: SS304 / SS316 / Inconel / Ceramic
Protection RatingIP65 / IP66 / IP68 / Explosion Proof (both types)
ApprovalsATEX, IECEx, EAC, CE (both types)

Application

Application

  • Oil & Gas: Pipeline, wellhead, and refinery temperature monitoring
  • Chemical & Petrochemical: Reactor, distillation, and heat exchanger control
  • Power Plants: Turbine, boiler, and steam system temperature measurement
  • HVAC Systems: Air handling units, chilled water loops, duct temperature
  • Food & Beverage: CIP/SIP temperature verification and process compliance
  • Pharmaceutical: Sterilization, fermentation, and cleanroom monitoring
